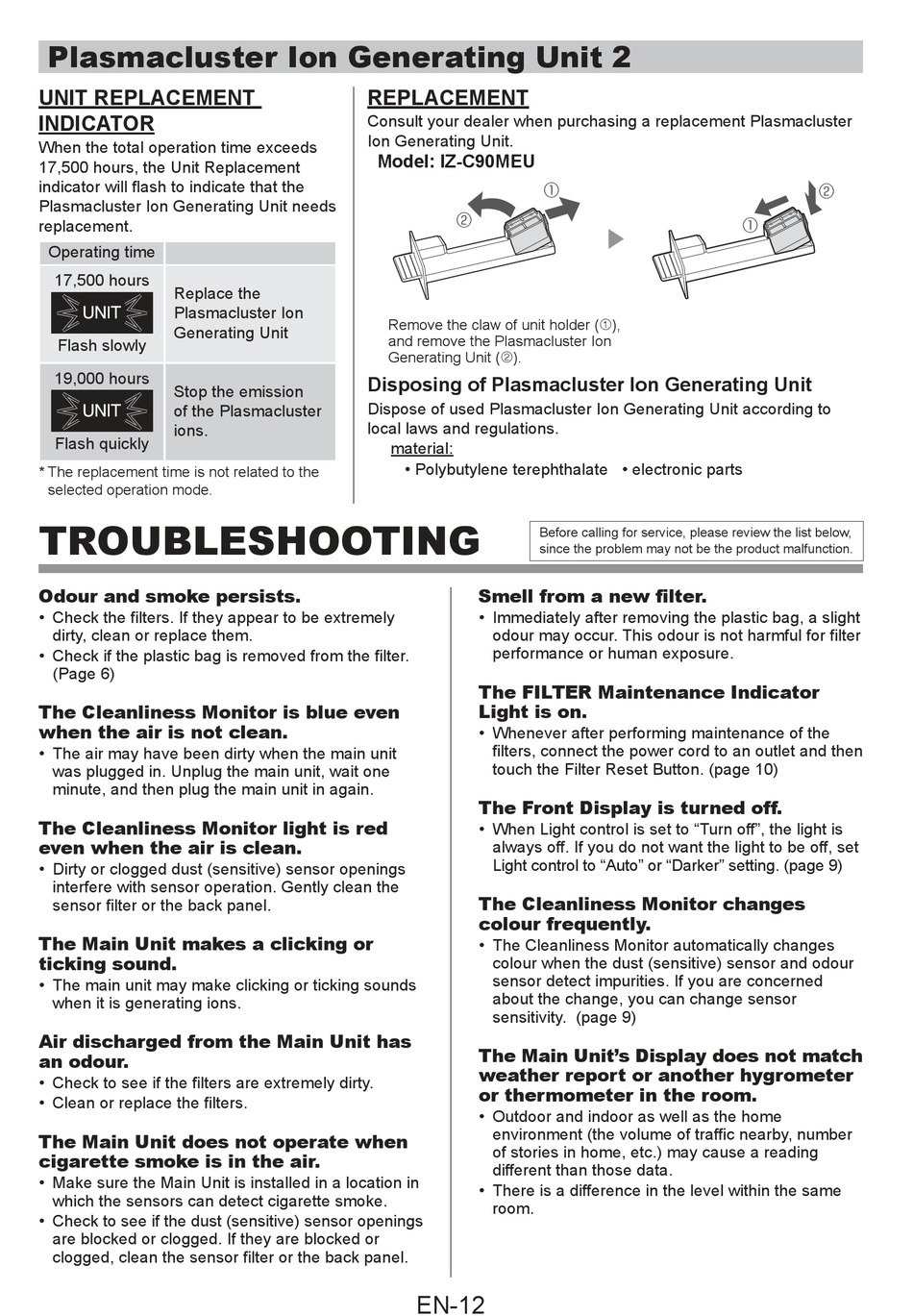

Plasmacluster Ion Generating Unit 2
UNIT REPLACEMENT
INDICATOR
When the total operation time exceeds
17,500 hours, the Unit Replacement
indicator will flash to indicate that the
Plasmacluster Ion Generating Unit needs
replacement.
Operating time
17,500 hours
Replace the
Plasmacluster Ion
Generating Unit
Flash slowly
19,000 hours
Stop the emission
of the Plasmacluster
ions.
Flash quickly
* The replacement time is not related to the
selected operation mode.

TROUBLESHOOTING

Odour and smoke persists.
• Check the filters. If they appear to be extremely
dirty, clean or replace them.
• Check if the plastic bag is removed from the filter.
(Page 6)
The Cleanliness Monitor is blue even
when the air is not clean.
• The air may have been dirty when the main unit
was plugged in. Unplug the main unit, wait one
minute, and then plug the main unit in again.
The Cleanliness Monitor light is red
even when the air is clean.
• Dirty or clogged dust (sensitive) sensor openings
interfere with sensor operation. Gently clean the
sensor filter or the back panel.
The Main Unit makes a clicking or
ticking sound.
• The main unit may make clicking or ticking sounds
when it is generating ions.
Air discharged from the Main Unit has
an odour.
• Check to see if the filters are extremely dirty.
• Clean or replace the filters.
The Main Unit does not operate when
cigarette smoke is in the air.
• Make sure the Main Unit is installed in a location in
which the sensors can detect cigarette smoke.
• Check to see if the dust (sensitive) sensor openings
are blocked or clogged. If they are blocked or
clogged, clean the sensor filter or the back panel.
REPLACEMENT
Consult your dealer when purchasing a replacement Plasmacluster
Ion Generating Unit.
Model: IZ-C90MEU
②
Remove the claw of unit holder (1),
and remove the Plasmacluster Ion
Generating Unit (2).
Disposing of Plasmacluster Ion Generating Unit
Dispose of used Plasmacluster Ion Generating Unit according to
local laws and regulations.
material:
• Polybutylene terephthalate • electronic parts
Before calling for service, please review the list below,
since the problem may not be the product malfunction.
Smell from a new filter.
• Immediately after removing the plastic bag, a slight
odour may occur. This odour is not harmful for filter
performance or human exposure.
The FILTER Maintenance Indicator
Light is on.
• Whenever after performing maintenance of the
filters, connect the power cord to an outlet and then
touch the Filter Reset Button. (page 10)
The Front Display is turned off.
• When Light control is set to "Turn off", the light is
always off. If you do not want the light to be off, set
Light control to "Auto" or "Darker" setting. (page 9)
The Cleanliness Monitor changes
colour frequently.
• The Cleanliness Monitor automatically changes
colour when the dust (sensitive) sensor and odour
sensor detect impurities. If you are concerned
about the change, you can change sensor
sensitivity. (page 9)
The Main Unit's Display does not match
weather report or another hygrometer
or thermometer in the room.
• Outdoor and indoor as well as the home
environment (the volume of traffic nearby, number
of stories in home, etc.) may cause a reading
different than those data.
• There is a difference in the level within the same
room.
EN-12
①
②
①
