VT100DIG
5.2

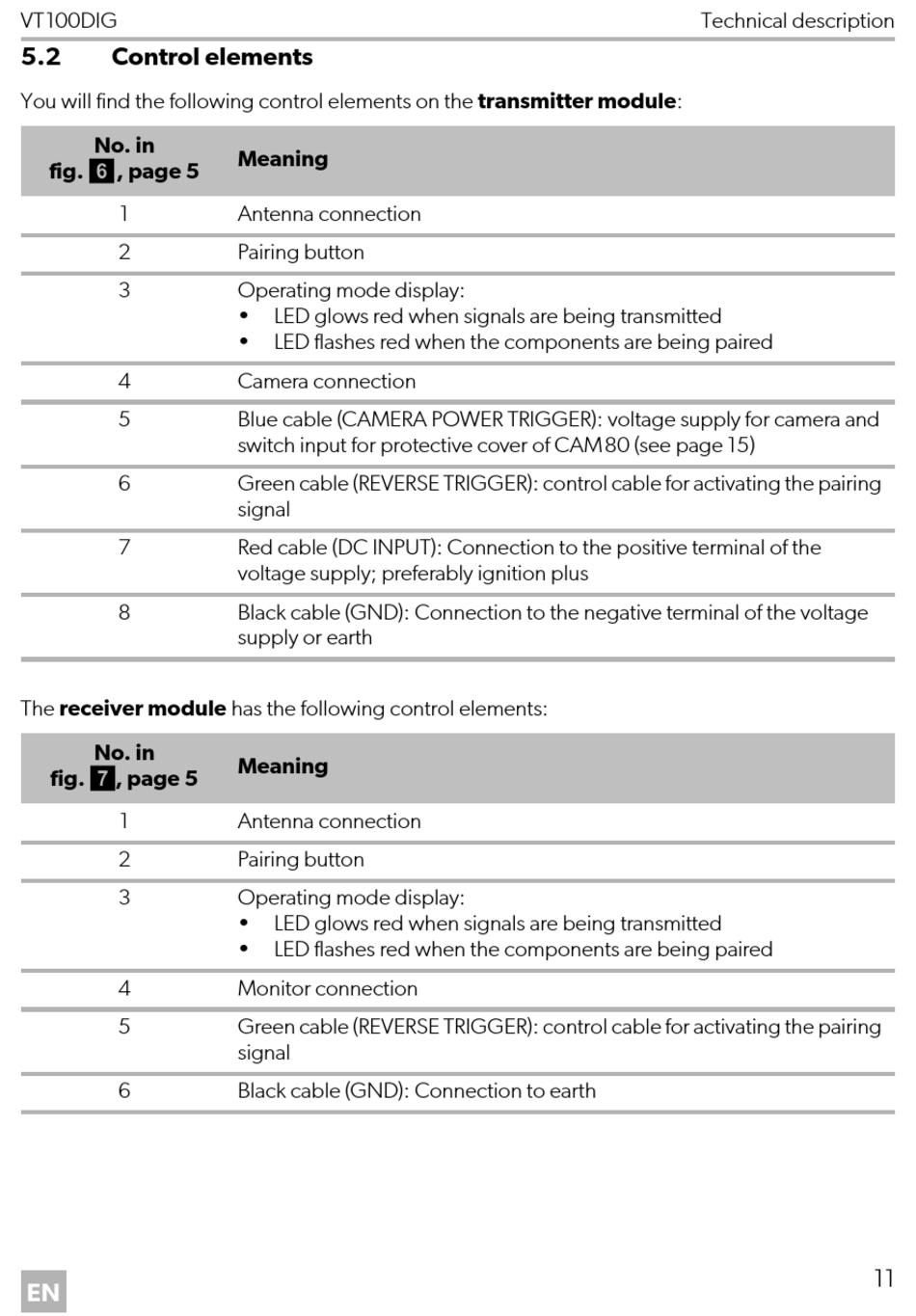

Control elements

You will find the following control elements on the transmitter module:
No. in
fig. 6, page 5
1
2
3
4
5
6
7
8
The receiver module has the following control elements:
No. in
fig. 7, page 5
1
2
3
4
5
6
EN
Meaning
Antenna connection
Pairing button
Operating mode display:
•
LED glows red when signals are being transmitted
•
LED flashes red when the components are being paired
Camera connection
Blue cable (CAMERA POWER TRIGGER): voltage supply for camera and
switch input for protective cover of CAM80 (see page 15)
Green cable (REVERSE TRIGGER): control cable for activating the pairing
signal
Red cable (DC INPUT): Connection to the positive terminal of the
voltage supply; preferably ignition plus
Black cable (GND): Connection to the negative terminal of the voltage
supply or earth
Meaning
Antenna connection
Pairing button
Operating mode display:
•
LED glows red when signals are being transmitted
•
LED flashes red when the components are being paired
Monitor connection
Green cable (REVERSE TRIGGER): control cable for activating the pairing
signal
Black cable (GND): Connection to earth
Technical description
11
