TEC29 EV
Dometic reserves the right to change product appearance and product
specifications.
7

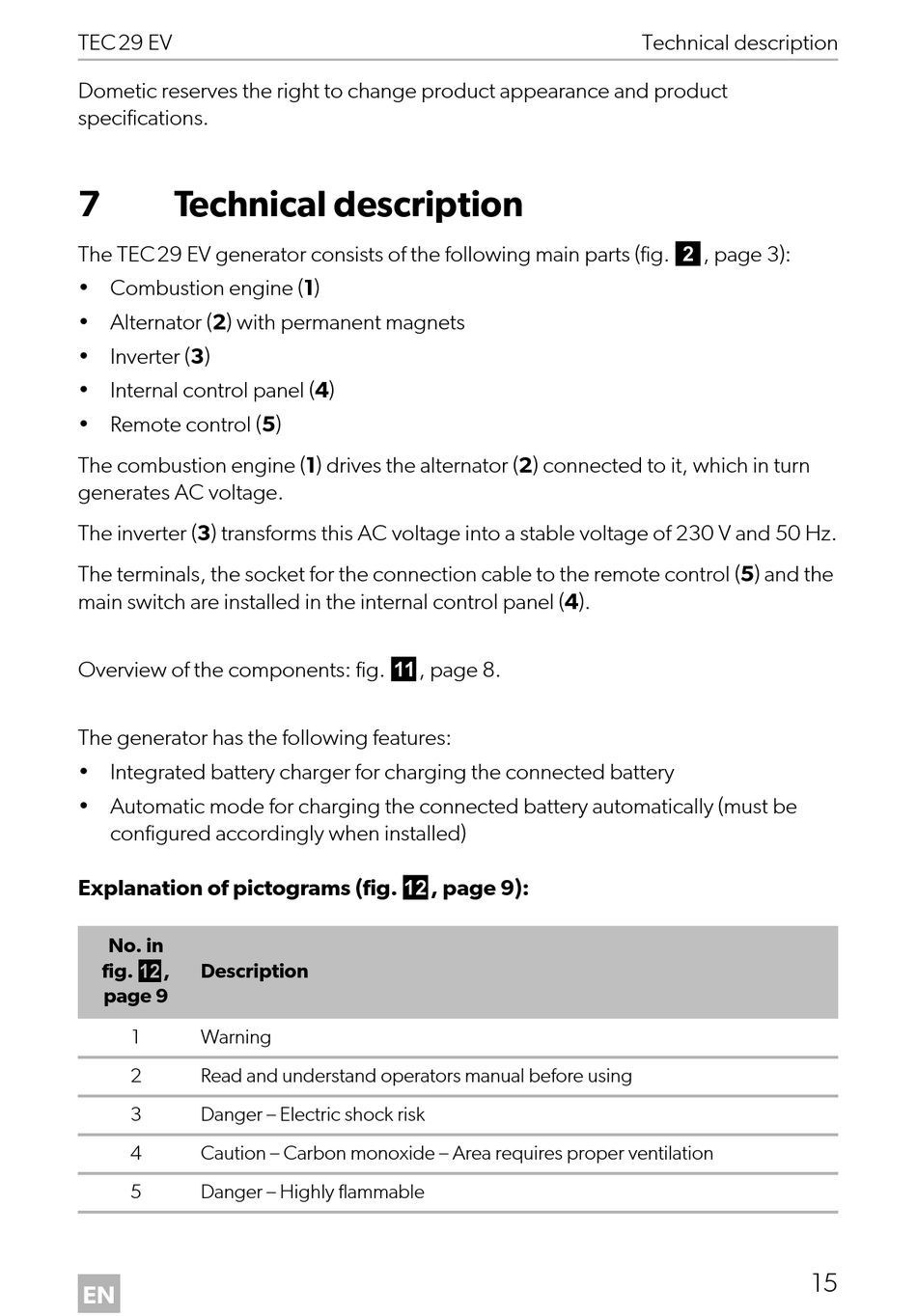

Technical description

The TEC29 EV generator consists of the following main parts (fig. 2, page 3):
• Combustion engine (1)
• Alternator (2) with permanent magnets
• Inverter (3)
• Internal control panel (4)
• Remote control (5)
The combustion engine (1) drives the alternator (2) connected to it, which in turn
generates AC voltage.
The inverter (3) transforms this AC voltage into a stable voltage of 230 V and 50 Hz.
The terminals, the socket for the connection cable to the remote control (5) and the
main switch are installed in the internal control panel (4).
Overview of the components: fig. a, page 8.
The generator has the following features:
• Integrated battery charger for charging the connected battery
• Automatic mode for charging the connected battery automatically (must be
configured accordingly when installed)
Explanation of pictograms (fig. b, page 9):
No. in
fig. b,
Description
page 9
1 Warning
2 Read and understand operators manual before using
3 Danger – Electric shock risk
4 Caution – Carbon monoxide – Area requires proper ventilation
5 Danger – Highly flammable
EN
Technical description
15
