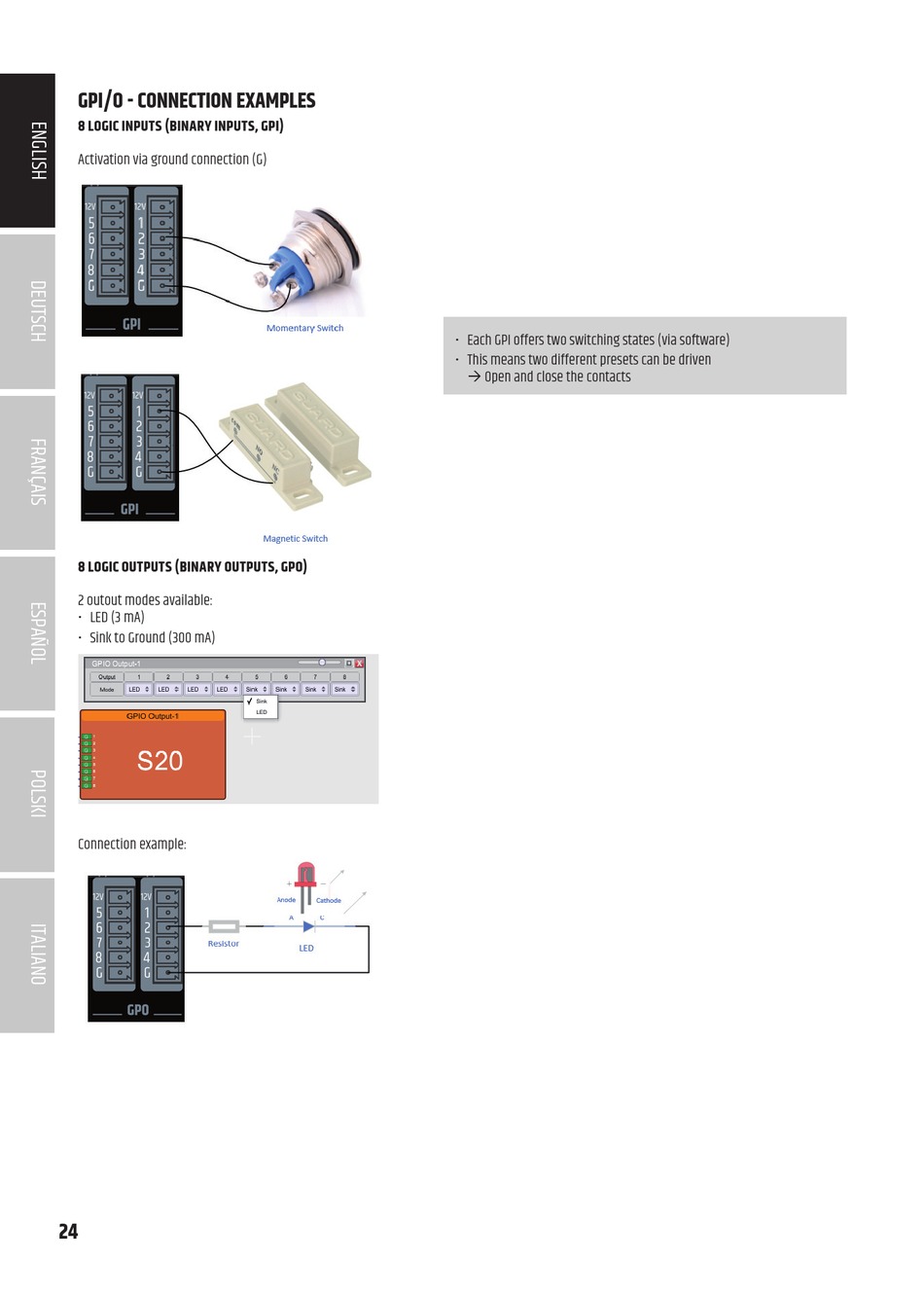

GPI/O - CONNECTION EXAMPLES

8 LOGIC INPUTS (BINARY INPUTS, GPI)
Activation via ground connection (G)
8 LOGIC OUTPUTS (BINARY OUTPUTS, GPO)
2 outout modes available:
• LED (3 mA)
• Sink to Ground (300 mA)
Connection example:
24
• Each GPI offers two switching states (via software)
• This means two different presets can be driven
 Open and close the contacts
