JUMPER SETTING & CONNECTORS:
J6:
1 +5V
For aux power (JP2) J6 must be connected to pc power supply !
2 GND
If not, the card wont work.
3 GND
4 +12V
DB 9M:
Serial 9 Pin D-SUB connector:
Pin
Signal
Pin
1
CDC
4
2
RXD
5
GROUND
3
TXD
6
DB25F:
Parallel 25 Pin D-SUB connector female :
Pin
Signal
Pin
Signal
1
STROBE
10
ACKNOWLEDGE
2
DATA 0
11
BUSY
3
DATA 1
12
PAPER EMPTY
4
DATA 2
13
SELECT
5
DATA 3
14
AUTO FEED
6
DATA 4
15
ERROR
7
DATA 5
16
8
DATA 6
17
SELECT INPUT
9
DATA 7
18
GROUND
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 2000/XP/Vista:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system "2000" "XP32" "XP64" "Vista32" or "Vista64" into the box for the Path/
Source and click at >next/continue<. Now Windows searches for the drivers in the
specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
card is installed correctly.
5
English
English
English
EX
EX
EX-
-
-
44171
44171
44171
DRIVER INSTALLATION :
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows Server 2000/2003/2008:
Signal
Pin
Signal
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
DTR
7
RTS
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
8
CTS
system for Server 2000: "2000" for Server 2003: "XP32" "XP64" and for Server 2008
DSR
9
RI
"Vista32" or "Vista64" into the box for the Path/Source and click at >next/continue<.
Now Windows searches for the drivers in the specified directory. Follow the hardware
assistant and finish the installation. If Windows recognizes other new devices repeat
the above described steps. Attention! Restart Windows in any case after installing the
drivers.
Pin
Signal
19
GROUND
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
20
GROUND
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
21
GROUND
should find a new „PCI Port" as sample (Com3). If you see this or similar entries the
22
GROUND
card is installed correctly.
23
GROUND
CHANGE PORT NUMBER:
24
GROUND
If you like to change the port number for example COM 3 to COM5, open the >Device
INIT
25
GROUND
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
LINUX:
The drivers are located in the following folder on our driver CD:
"D:\IO\OXFORD2\LINUX"
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for stan-
dard IO ports from your Linux version! In some newer versions of Linux the card will
even be installed automatically after starting Linux.
English
English
English
P1 25 Pin Buchse
S1 9 Pin Stecker

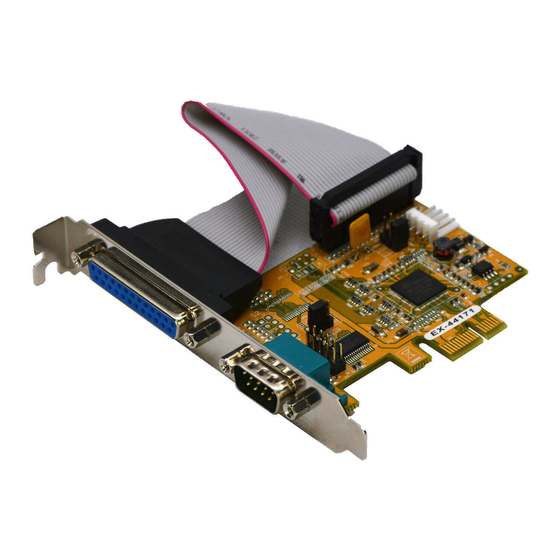

Die EX-44171 ist eine PCI-Express Multiport I/O Karte mit 1 seriellem FIFO 16C95x
Port, und 1 parallelem Port für den Anschluss von High-Speed seriellen RS-232 Peri-
pherie Geräten (z.B. Terminal, Modem, Plotter usw.). Der serielle PCI-Express Bus
unterstützt dabei optimal die Leistung des schnellen 16C95x Chipset mit 128byte FIFO
Cache. Die EX-44171 gewährleistet so eine sichere Datenübertragung und exzellente
Performance von bis zu 921KBaud/s für jedes angeschlossene Gerät! Sie unterstützt
alle PCI-Express Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und Inter-
rupts manuell einzustellen, da die Einstellungen der Karte vom System (BIOS) und
beim Installieren des Betriebssystems automatisch vorgenommen werden. Mit dem
Jumper JP2 & JP3 können Sie 12V oder 5V auf Pin9 des seriellen Anschlusses leiten.
Achten Sie bitte darauf dass die Angeschlossenen Geräte dies auch unterstützen.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JP2:
JP3:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.1 / 10.01.09
AUFBAU :
S1
Interner Serieller
Anschluss
Parallel Anschluss
Serieller Anschluss
JP3 Power auf 9 Pin Stecker Ein/Aus
BESCHREIBUNG & TECHNISCHE DATEN :
PCI Express x1 bis x16
WIN 2000/XP/Vista/Server 2000/2003/2008/Linux
1 x 9 Pin Seriell Stecker, 1 x 25 Pin Parallel Buchse
EX-44171, Treiber CD, Anleitung
CE
/ FCC / RoHS / WEEE
DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Wenn sie den Jumper JP3 für S1 bis S2 auf PWR gesetzt haben, kön-
nen sie mit dem JP2 den Spannungswert einstellen. Es gibt 3 verschie-
dene Spannungsquellen. (Nur in Verbindung mit JP3 auf PWR!!!)
X5V
X12V
X 5V
= 5Volt vom PC-Netzteil
I12V
X 12V
= 12Volt vom PC-Netzteil
I 12V
= 12Volt vom Mainboard (STANDARD)
DIS
= Am Pin 9 liegt das Standard Signal RI (Ring Indicator).
(Werkseinstellung)
DIS PWR
PWR
= Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
eingestellt werden.
S1
Die Einstellung der Spannung nehmen sie mit JP2 vor. Dieser sollte
aber bei Standard Anwendungen nicht verstellt werden.
1
JP2 Jumper für die Strom-
quelle (Netzteil oder
PCI-Express Bus)
J6
Anschluss für Power
vom PC Netzteil
