Electric
Height Width
[mm] [mm]
Power [W]
ROBERTA EL. CHROME
WITH DIGITAL ROOM
THERMOSTAT ECO
700 400 300
700 500 300
1238 400 300
1238 450 400
1238 500 400
1496 400 400
1496 500 500
1775 500 600
KELLY EL. DX/SX
WITH DIGITAL ROOM
THERMOSTAT TOP
1240 500 500
1420 500 600
JACKY EL.WITH DIGITAL ROOM
THERMOSTAT TOP
990 500 500
1260 500 600
1780 500 900

3. Technical characteristics

Radiatori Elettrici Cordivari versione con termostato ambiente digitale:
• Class I Insulation
• Protection: IP 44
• Internal operating thermostat set to 90 - 100 °C
• Safety overheating fuses set to 152°C
These radiators are factory primed with a clearly specified amount of
special fluid ensuring heat transmission.
If any of this fluids leaks out, the radiator must be restored to optimum
working conditions by the manufacturer, a person delegated by the
manufacturer or a person with suitable qualifications, to ensure that
proper operating and safety conditions are restored.
4. Notice for the end user
To clean coloured radiators, use only non-abrasive cloth dampened with
water.
To clean the stainless steel radiators you can use a non-abrasive cloth
dampened with water and methyl alcohol diluted to 50%. Do not use
detergents or aggressive substances. Avoid any acidic or basic solutions,
industrial chemicals or other substances, corrosive or abrasive materials
(bleach, ammonia, soda ...) Do not use abrasive sponges or cloths.
5. Notice for the installer
The product purchased is subject to the general rules of warranty so as
written in the official Cordivari Catalogue in force. The warranty starts from
the date of delivery and is void if the indication of the production lot is modified
and / or removed. The guarantee shall be effective after examination of
the defects and their relevant causes. The material to replace or repair
must be delivered at the retailer warehouse . The obligation to provide
the guarantee is subject to the conditions and requirements set out below.
The radiator has not been damaged during shipping, handling or
installation and any repairs and / or modifications has been carried out
by a third party, if not expressively authorized by the manufacturer . The
material has been stored in good condition and protected from the weather
before being installed. The installation of this product should be performed
Cod. 1910000000048 - nv03
Electric
Height Width
[mm] [mm]
Power [W]
FRAME AND FRAME INOX
EL. WITH DIGITAL ROOM
THERMOSTAT TOP
1201 501 700
1425 511 900
1425 561 1000
1817 561 1200
ANDREA EL.
WITH DIGITAL ROOM
THERMOSTAT TOP
990 500 500
1200 500 600
1410 500 700
CELINE EL. DX/SX
CON TERMOSTATO AMBIENTE
DIGITALE TOP
1163 500 400
1618 500 500
1828 500 600
by qualified personnel and in accordance with these instructions and all
safety equipment rules both national and local . Do not place the radiators
in rooms with the presence of chlorine vapours or corrosive fumes such as
swimming pools saunas, spa tubs

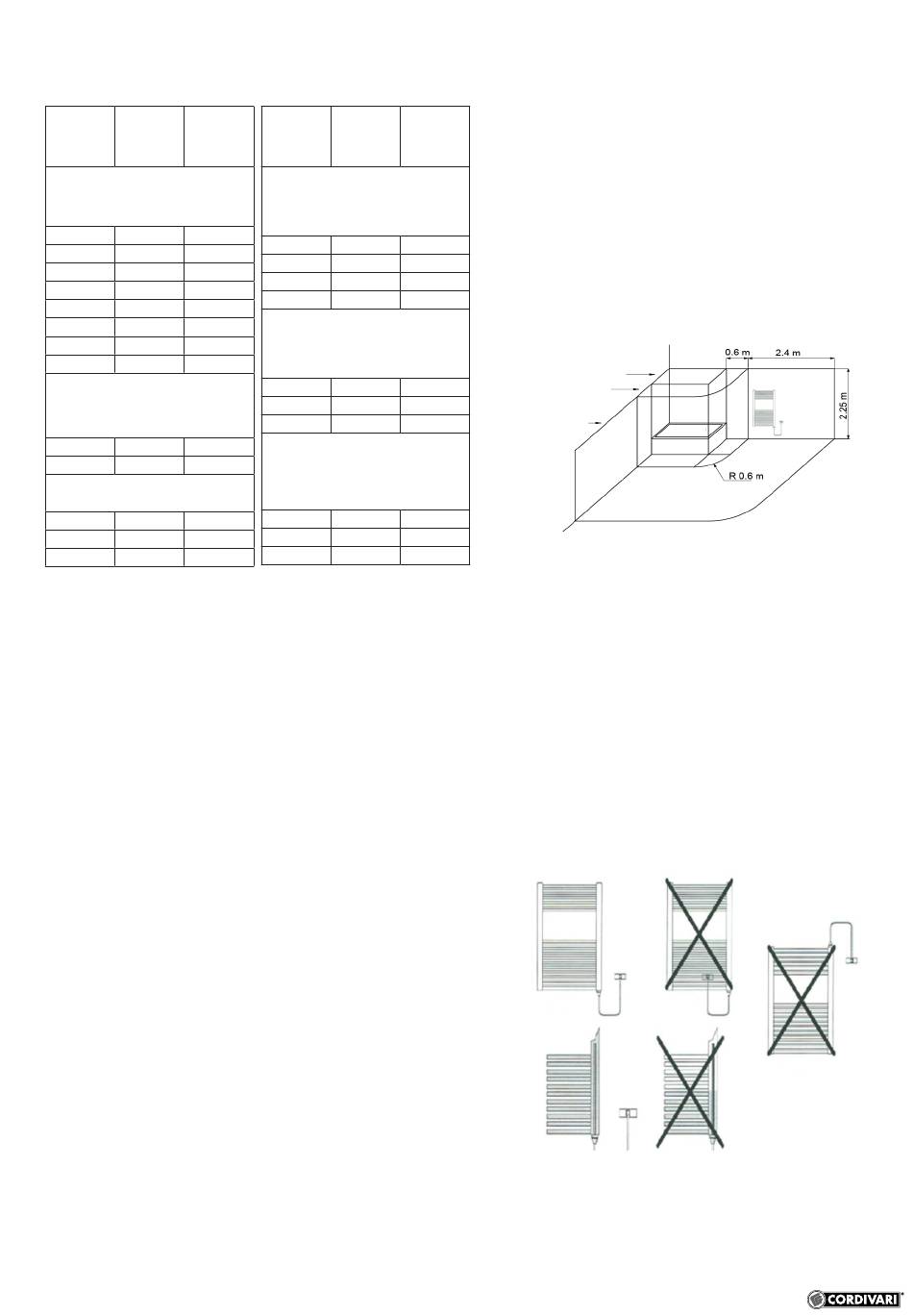

6. Instructions for installation in Bathroom

The national rules on installing electrical equipment in the bathroom
must be scrupulously respected. The electric radiators must be always
installed outside zone 1 and 2.
The electric switch and control elements most be mandatory located in
zone 3, in order that no electrical control center is accessible to anyone
using the shower or bath
ZONE 1
ZONE 2
ZONE 3
Install the radiator in such a way that the minimum distance between
the floor and the thermostat is 250mm and make sure that there are no
obstacles within a minimum distance of 100mm from the appliance..

7. Wall mounting

The electric radiaotrsmust be mounted on the wall following the
instructions provided in the packaging of fastening supports.
When the radiator is in the proper position, the resistor is located at the
bottom right.
The radiator must absolutely never be installed with the resistor turned
upwards or in any direction other than pointing downwards, as the
heating element in the resistor itself would be irreversibly damaged
during operation.
Never position the radiator in front of the power socket.
Make sure that the resistor never operates unless it is fully submerged.
YES
YES
- 15 -
ZONE 0
NO
NO
NO
*The version with Fil-Pilot is available for specific countries.
