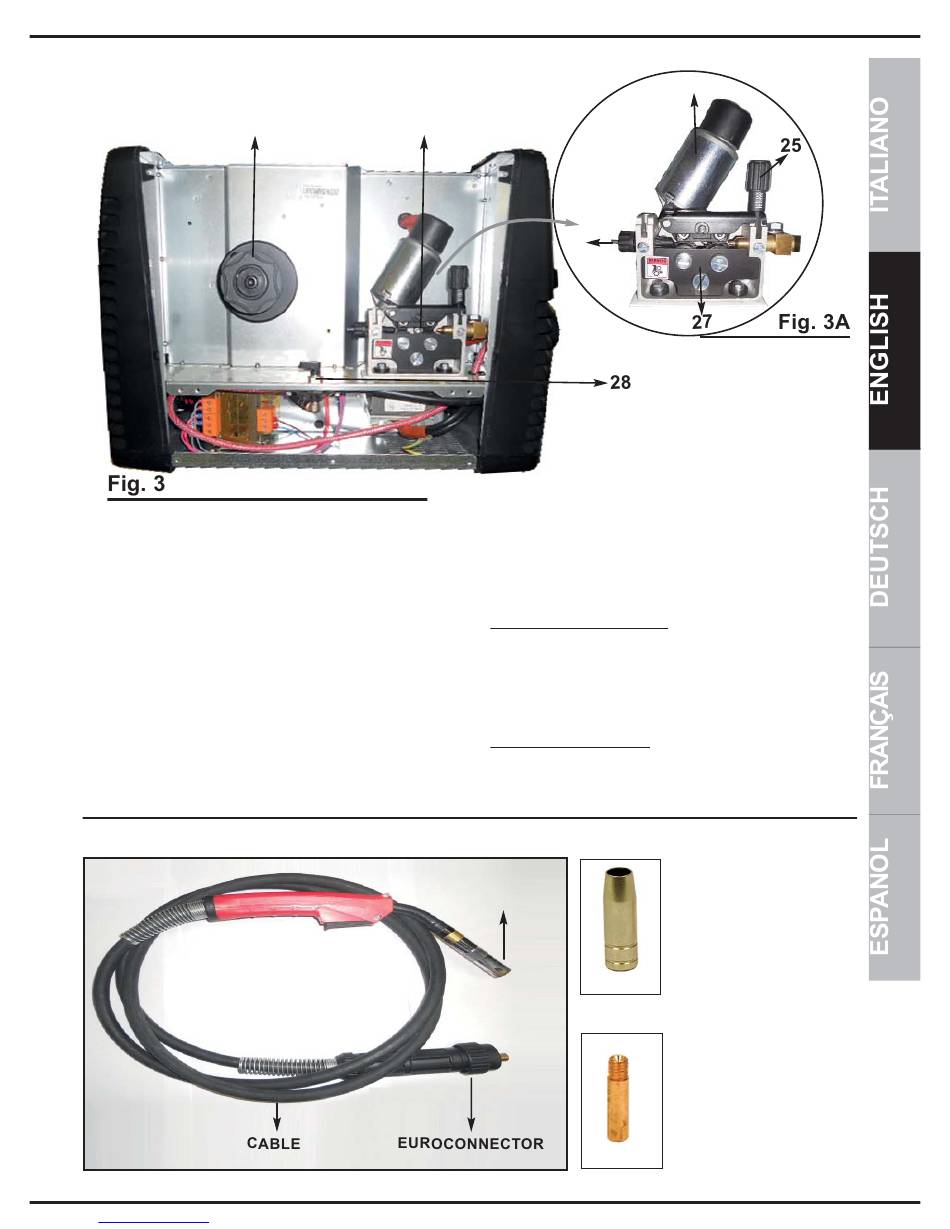

FIGURE 3:
22. WIRE SPOOL SUPPORT
The 300mm MIG welding spool requires an
external support (cod. 580.727.001)
23. WIRE FEEDER SYSTEM: see figure 3A
for a more detailed image.
24. WIRE-FEEDER MOTOR
25. WIRE TENSION REGULATOR: Adjusts
the tension of the welding wire.
26. INLET OF THE WIRE FEEDER MOTOR
WELDING TORCH
Fig.4
Downloaded from www.Manualslib.com
22
manuals search engine
23
26
27. WIREFEEDER SPOOLS
28. GAS VALVE: The Gas Valve can be
rotated in three positions.
GAS MIG Position: The tap feeds the
Euroconnector with the gas from the cylinder
connection (19) (For MIG with GAS
welding).
GAS TIG Position: The tap feeds the front
connection (14) with the gas from the
cylinder connection (19) (For TIG welding).
TORCH BODY
24
GAS
Fig.4A NOZZLE
WIREFEEDER
TIP
Fig.4B
