Operating Instructions
KKV 8/14

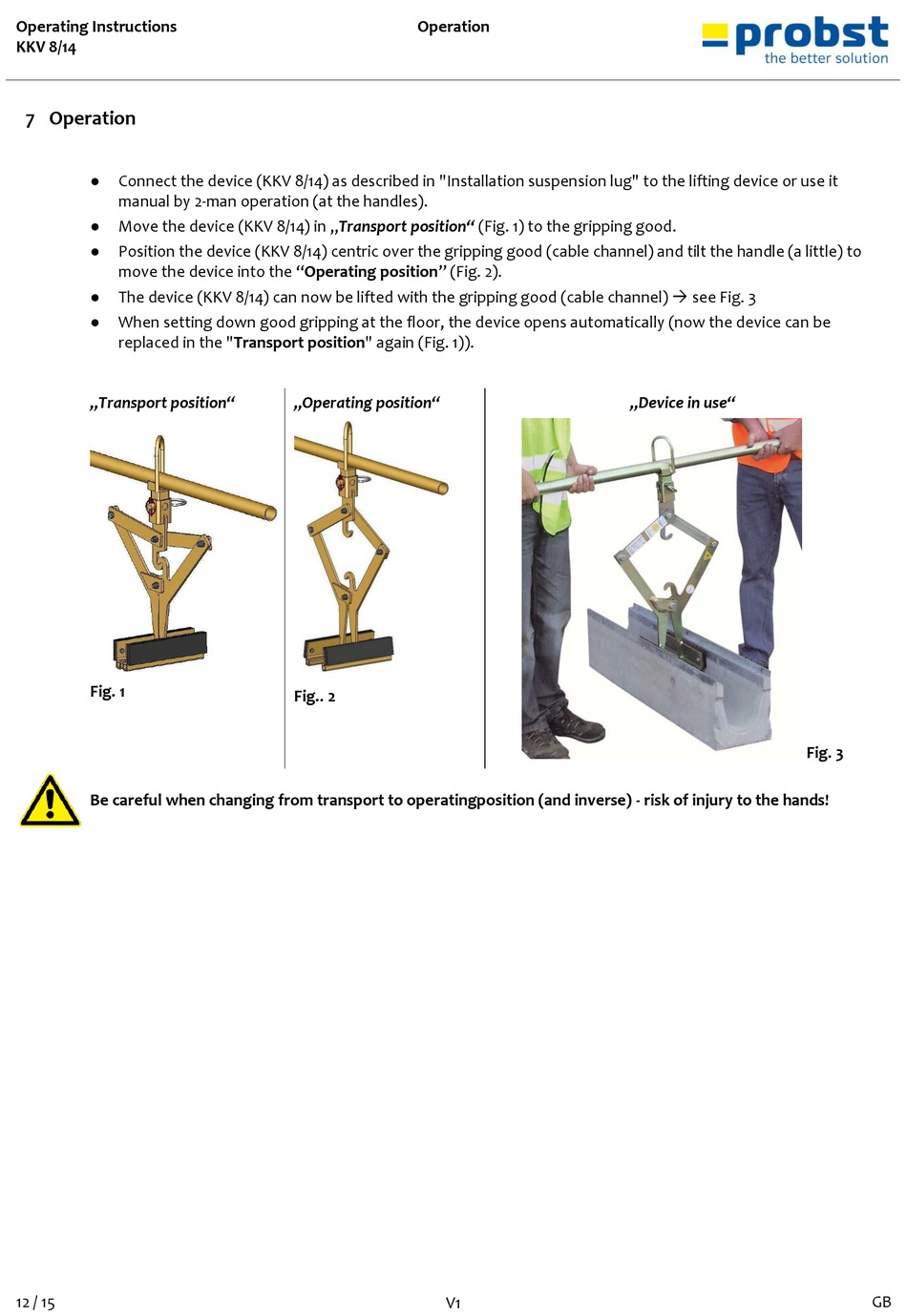

7 Operation

●
Connect the device (KKV 8/14) as described in "Installation suspension lug" to the lifting device or use it
manual by 2-man operation (at the handles).
●
Move the device (KKV 8/14) in „Transport position" (Fig. 1) to the gripping good.
●
Position the device (KKV 8/14) centric over the gripping good (cable channel) and tilt the handle (a little) to
move the device into the "Operating position" (Fig. 2).
● The device (KKV 8/14) can now be lifted with the gripping good (cable channel)  see Fig. 3
●
When setting down good gripping at the floor, the device opens automatically (now the device can be
replaced in the "Transport position" again (Fig. 1)).
„Transport position"
Fig. 1
Be careful when changing from transport to operatingposition (and inverse) - risk of injury to the hands!
12 / 15
Operation
„Operating position"
Fig.. 2
V1
„Device in use"
Fig. 3
