Important:
Read this instruction manual carefully and mind all warnings and tips. You should do this work only if you're
qualified; otherwise we recommend this mounting to be done by a qualified workshop. Improperly mounting
of this kit can reduce the driveability of the motorcycle and may be a risk to your health and life. Test brake
and gear shifting indoor, after installing rear set. If anything is not operating properly or braking efficiency is
poor, testing on the road may result in death or serious injury!
Special works are marked with the following signs. Please take special care on these works.
Warning! Important mounting instruction. It shows risks to your life and health.
Tips for mounting and maintenance or to avoid damage.
Fitting:
Remove stock rear sets. The following parts will be used for your new rear set: gear-box lever and brake
cylinder with reservoir.
Rear sets are delivered pre-assembled! All fastening elements, which are not used for mounting or
adjusting the rear set, are fitted with tightening torque and bolt adhesive. Those fastening elements
are not mentioned in this instruction. All mentioned fasteners, which are not secured by counter- or
self-locking nuts, should be installed with medium bolt adhesive (e.g. Loctite 243).
A special brake-lining adapter is required for the ABS-Model!
LSL Article No.: 225BK44.
The original brake-light switch has to be replaced by a hydraulic one. It replaces the banjo bolt that fixes the
brake hose on the brake cylinder.
Follow the vehicle manufacturer's instruction for bleeding the brake system! Use only seal rings
according to the brake hose manufactures' instructions. Please mind that additional work occurs by
connecting the brake-light switch to the harness and some material for wiring and connecting may be
necessary.
The tightening torques for connections to the frame refers to the manufacturer's instructions. Use the
following torques for all the other bolted connections:
M5
M6
M8
M10x1,25
Maintenance:
Periodically proof all functions during service intervals. Use particle free (no MoS
grease to maintain lever bushings.
———————————————————
Rev. 00 11/07/2016
Part-No. : 118K152-RR
Product : Rear Set, adjustable
Brand : Kawasaki
Model (Type) : ZX-10R (ZXT00S)
=
6Nm
=
10Nm
=
20Nm
=
30Nm
Zubehör von

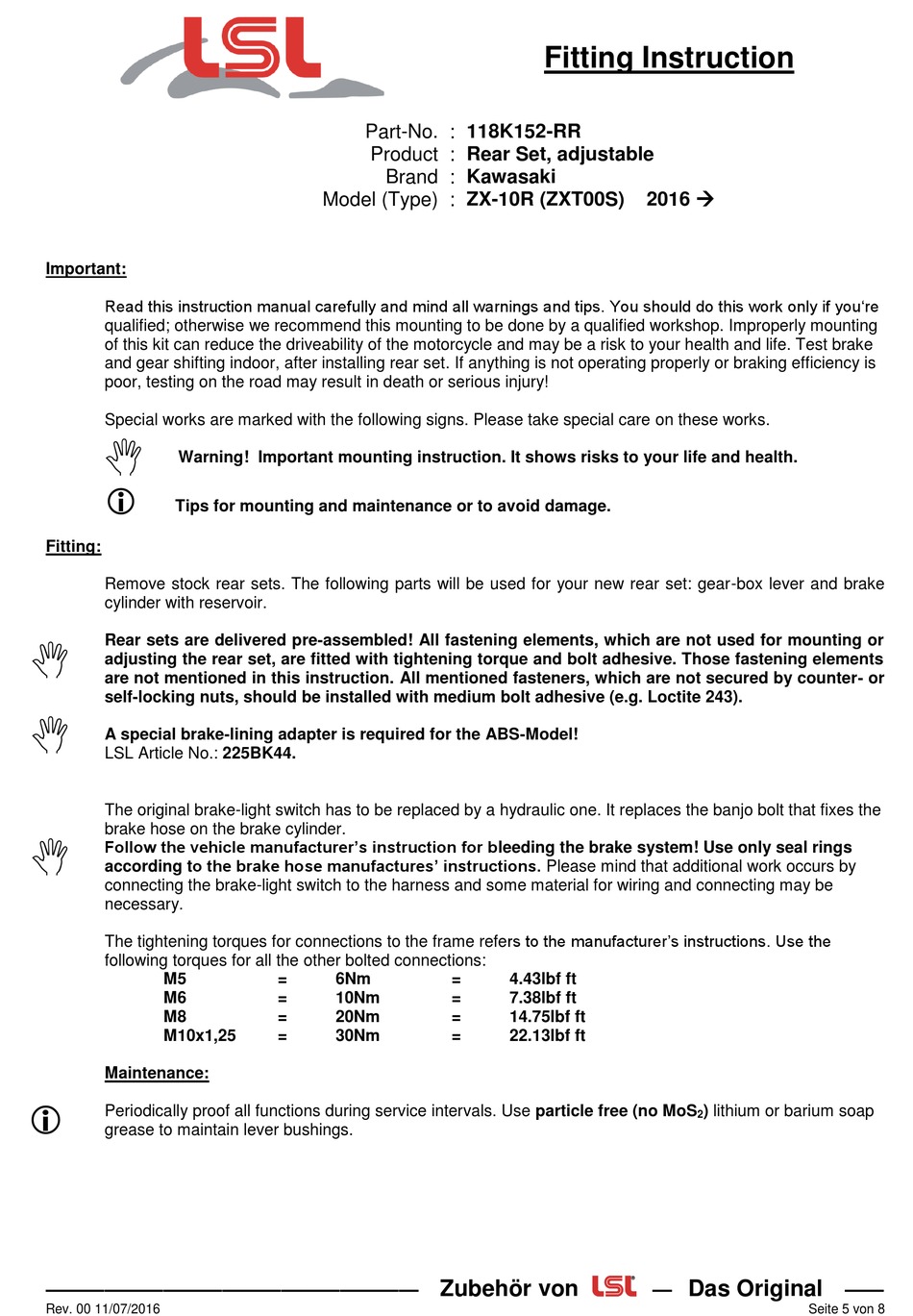

Fitting Instruction
=
4.43lbf ft
=
7.38lbf ft
=
14.75lbf ft
=
22.13lbf ft
2016
) lithium or barium soap
