Installation instructions, only for experts
4.2. Connecting the device
Note Fig. 2.
1. Connect the 4-pin cable to the terminals as follows.
Red: DC 12-24 V
Yellow: D+
Grey: D-
Blue: GND
4.3. Installing the device
Note Fig. 3.
1. Insert the device into the mounting hole.
2. Screw the unit through the holes to the cabin wall using the four wood
screws provided.

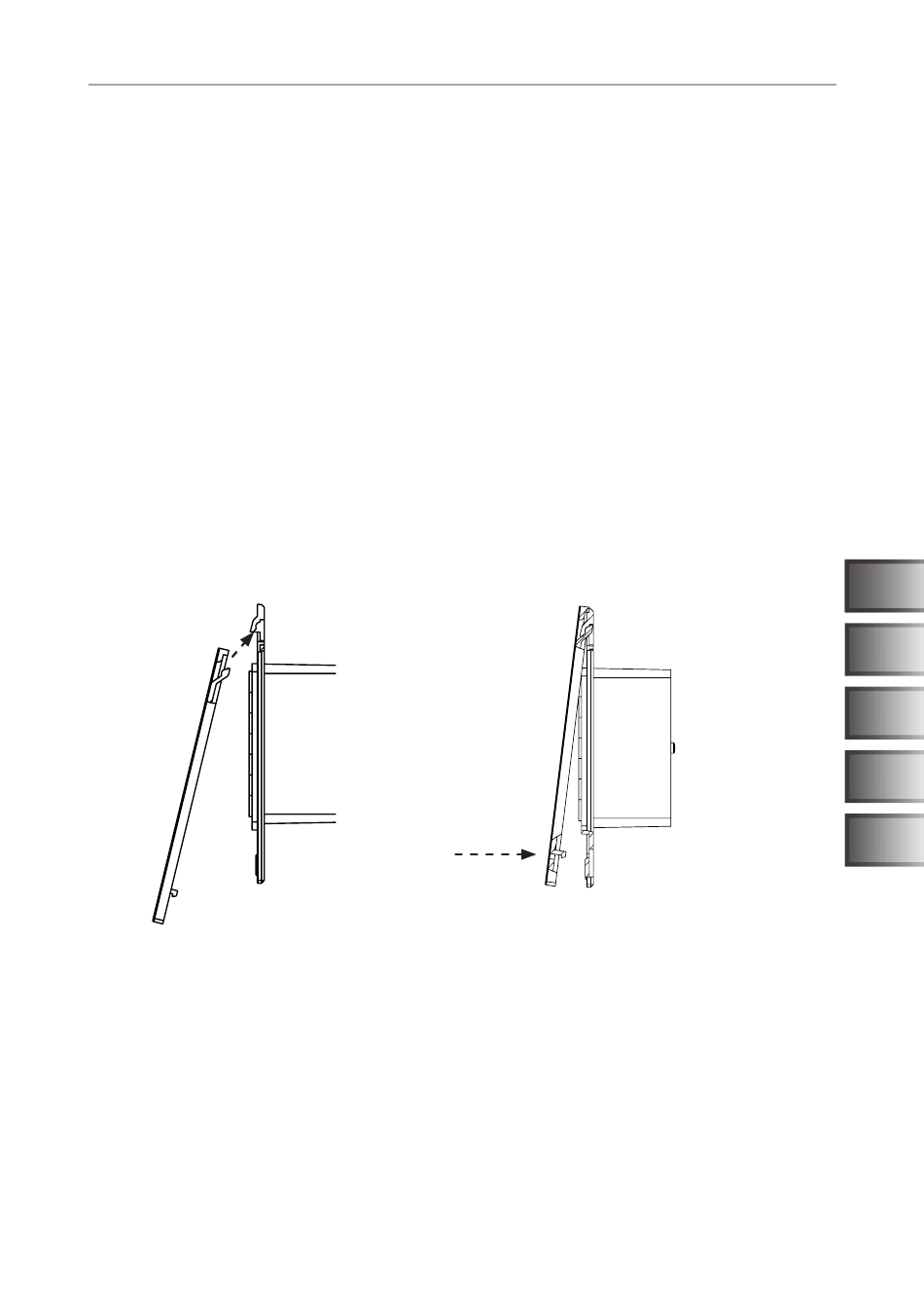

3. Gently press the front panel into the housing. Ensure that the lower catches
engage noticeably.
Fig. 3: Fitting the front panel
p. 5/8
