2. ConneCtIons & Controls

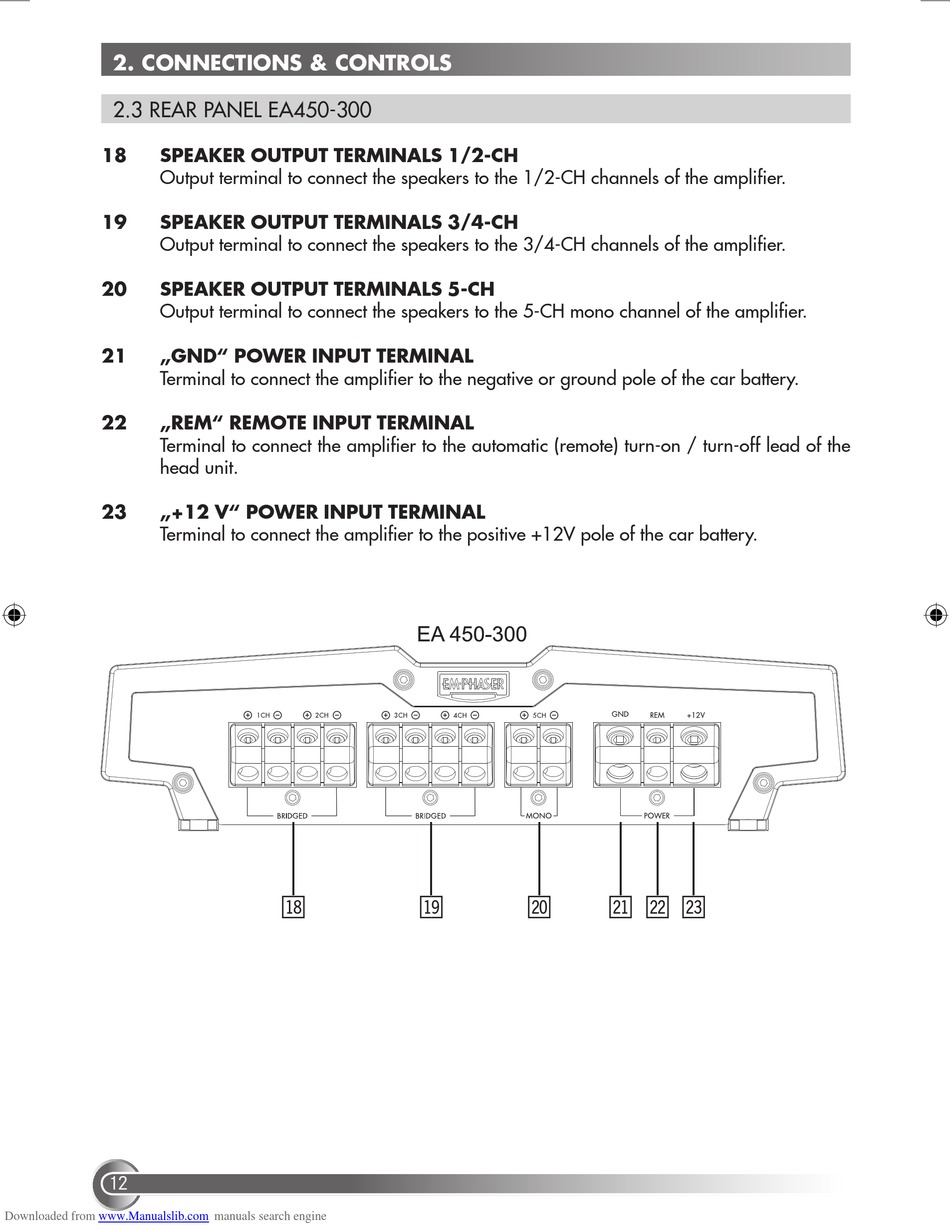

2.3 REAR PANEL EA450-300
18 speaKer output terMInals 1/2-CH
Output terminal to connect the speakers to the 1/2-CH channels of the amplifier.
19 speaKer output terMInals 3/4-CH
Output terminal to connect the speakers to the 3/4-CH channels of the amplifier.
20 speaKer output terMInals 5-CH
Output terminal to connect the speakers to the 5-CH mono channel of the amplifier.
21 „gnd" power Input terMInal
Terminal to connect the amplifier to the negative or ground pole of the car battery.
22 „reM" reMote Input terMInal
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of the
head unit.
23 „+12 v" power Input terMInal
Terminal to connect the amplifier to the positive +12V pole of the car battery.
