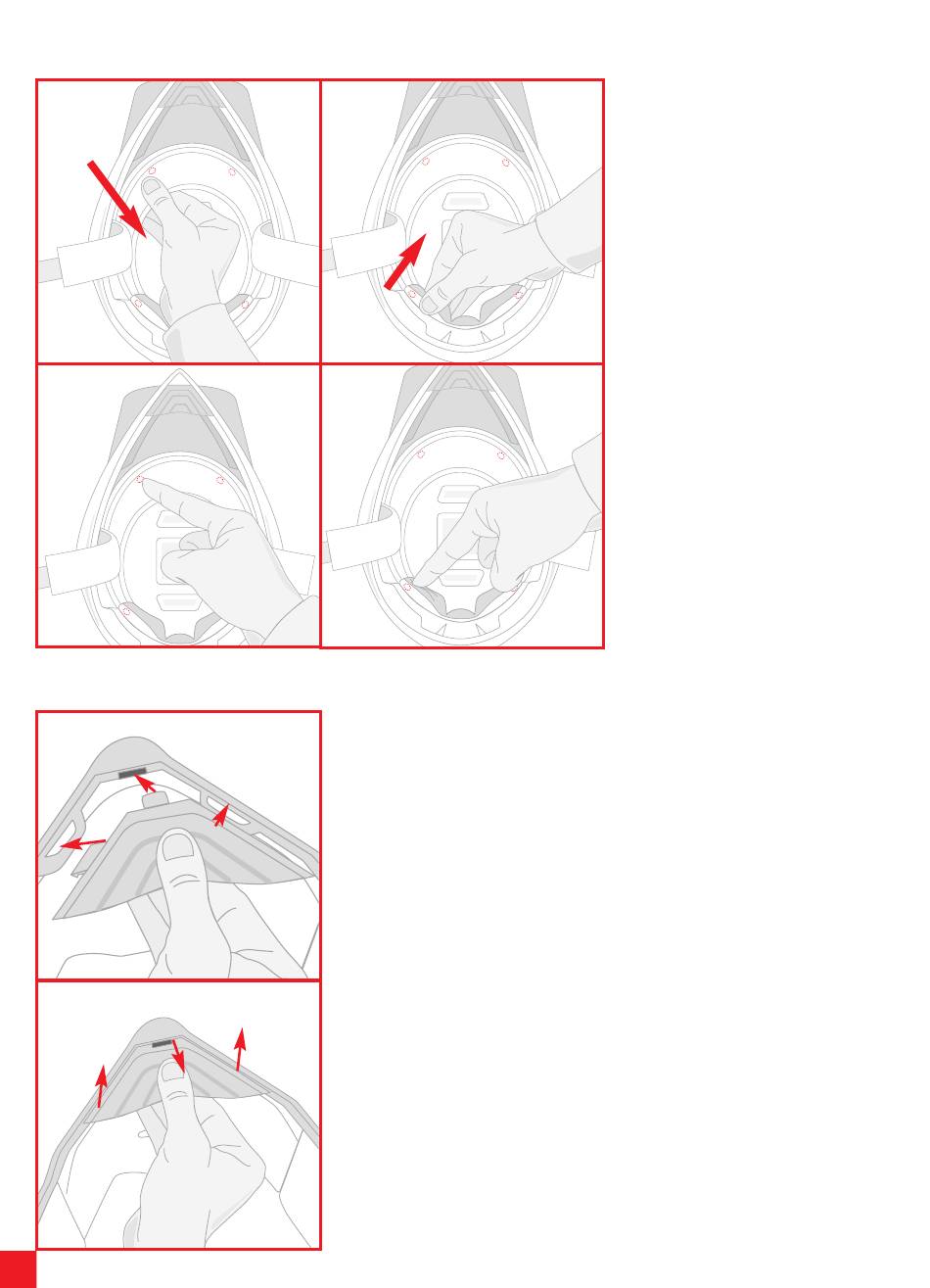

3.2) Cap Removal/Installation
1
CLICK!
3
CLICK!
3.3) Throat wind shield removal/installation
1
2
16
2
CLICK!
4
CLICK!
To install the throat shield, first insert the front plastic tooth
into the housing on the chin strap and then insert the two side
teeth (1). Check that the throat shield is securely fastened to
the chin strap.
To remove the throat shield, unhook it, pulling in the direction
of the arrow (2) and release it.
To remove the cap, release
the 2 press studs at the front
(1) and the 2 at the back of
the helmet (2). Remove the
cap from the helmet.
NB: Extract the cap only
after releasing all the press
studs to avoid damaging
them and prevent damage
to the fabric parts.
To refit the cap, insert it insi-
de the helmet and clip the 2
press-studs at the back (4)
and the 2 at the front (3) into
place.
