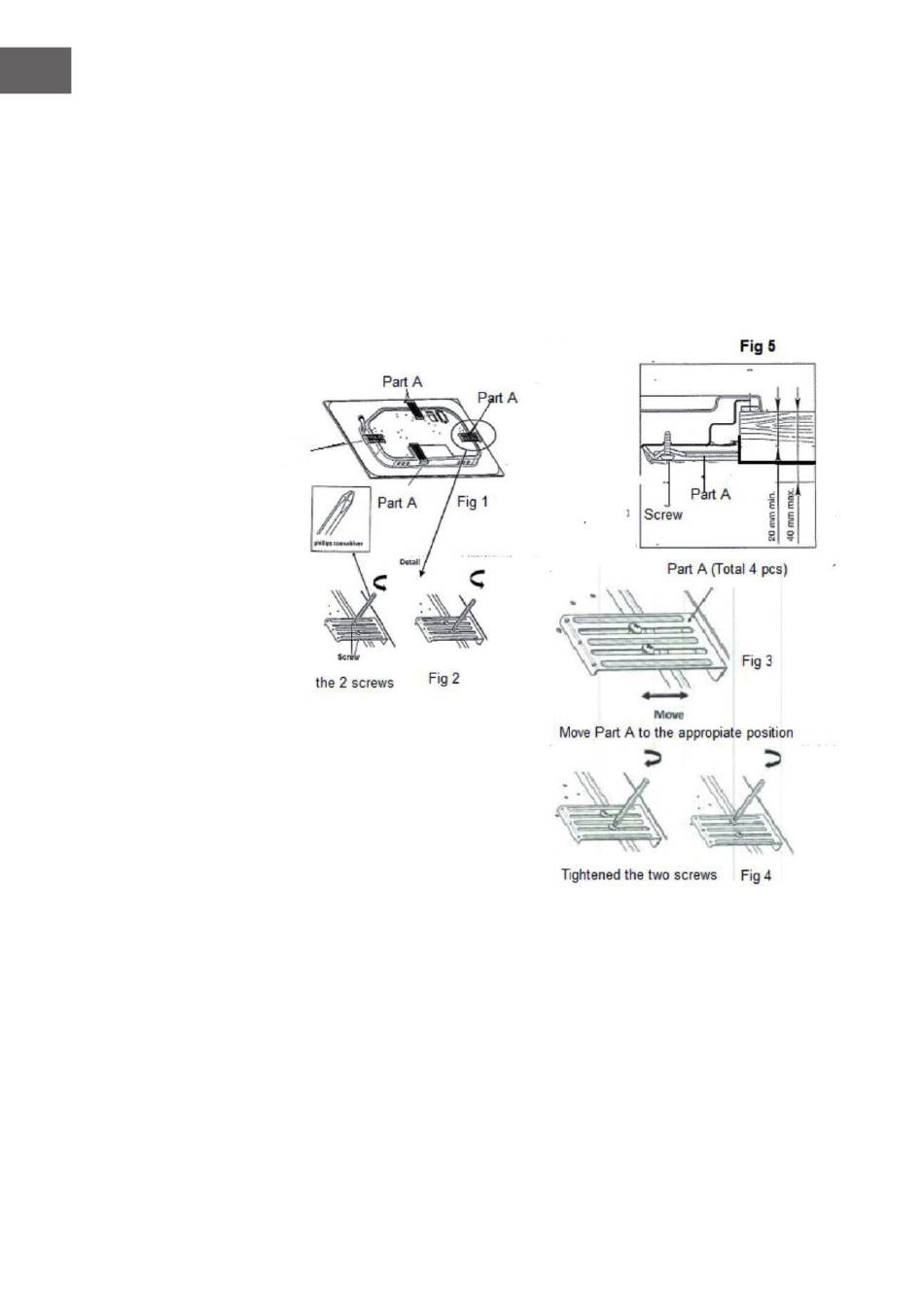

Assembly of the fixing bracket Part A
The cooking hob is supplied with a set of 4 pcs fixing bracket Part A(Fig1) and two
screws eash for fixing into the kitchen cabinet with a worktop from 2 to 4cm deep (Fig5).
Slot in the cooking hob into the aperture of the cabinet and set it correctly.
Move Part A to the appropriate position( Fig3). Loosen the screws and adjust the bracket
Part A(Fig2) until the cooking hob is firmly secured and then tighten the screw. (Fig4)
Part A
Loosen
