Introduction:
This is a special designed antenna for both analog and digital terrestrial TV broadcasting reception. It
Can receive all the TV signals of your area in VHF and UHF band, as well as the FM radio signal. It is the
best solution for home reception and digital portable TV reception. This antenna powered through AC
power. It is very practical to install and very easy to use.
Technical Data:
• Frequency range: VHF 87.5 - 230 MHz
UHF 470 - 862 MHz
• Receiving range: UHF / VHF / FM
• Max. gain:
28 dB
• Output level:
max. 100 dBµV
• Out Impedance: 75 Ohm
• Noise figure:
< 3 dB
• Power supply:
via separate AC/DC adapter (DC 6V / 100mA)
or via DTV set-top-box (DC 5V / 40mA)
• Connector:
F-connector
Product Features:
• SMD circuit technology design
• Shielded for minimum interference
• Built-In high gain and low noise amplifier
• Horizontal or vertical positioning for best possible reception
• Stylish and compact size design with modern shiny black finish
• Powered by DTV set-top-box or included separate power adapter
• Specially compatible with HDTV of various digital terrestrial signal
(DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios.
Installation:
Note: For the best reception, please check the following conditions.
1. Keep the antenna away from the sources of interference: Keep the
antenna away from those big power consumption devices, such as
air conditioner, elevator, hair dryer and microwave oven etc.
2. Place the antenna near windows when use the antenna in indoor
environment.
3. Install the antenna as high as possible: In digitalterrestrial reception,
if there are some interceptions between antenna and transmission
tower, it will cause the signal loss temporarily. So if the antenna is
installed as possible, those interceptions will be reduced.
user manual

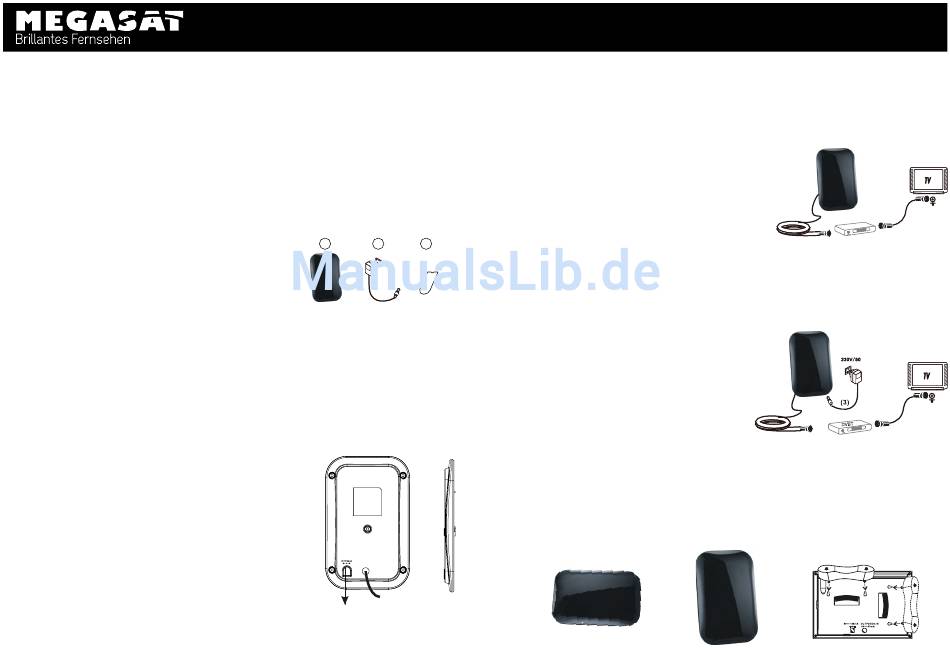

Included in package:
Before start your installation, plea-
se check the contents.
1. Antenna main unit
2. AC/DC power adapter
3. Desktop standing supporter
1
2
3
TV output
IEC connector
DC power
input
Installation 1: Powered by DTV set-top-box (Fig. 1)
Make sure that your set-top-box can support coaxial cable 5V DC
powering via the IEC or F-connector to antenna.
Step 1: Take out the antenna main unit and accessories from box.
Step 2: Connect the coax cable with antenna and DTV set-top-box.
Step 3: Connect the DTV set-top-box to your TV. Please make sure
the coax cable powering function of your STB is ON. (Please check
the operational manual of your STB for coax cable powering function)
Step 4: Adjust the antenna (turn around the antenna body in different
direction or put it in vertical or horizontal) in the best position that
can receive digital TV signal. (It is recommended to place the antenna
near the window where the digital TV signal comes in.)
Step 5: Organize the coax cable for neat, tidy and safety.
Installation 2: Powered by AC/DC adapter (Fig. 2)
Step 1: Take out the antenna main unit and accessories from box.
Step 2: Connect the coax cable with antenna and DTV set-top-box or TV.
Step 3: Connect the DTV set-top-box to your TV.
Step 4: Connect the power adapter DC output connector to the DC input
jack of the antenna, and then plug the AC/DC power adapter
into the AC power socket.
Step 5: Adjust the antenna (turn around the antenna body in
different direction or put it in vertical or horizontal) in the best
position that can receive digital TV signal. (It is recommended
to place the antenna near the window where the digital
TV signal comes in.)
Step 6: Organize the coax cable for neat, tidy and safety.
Note: After the installation is finished, you can use your set-top-box to check the signal strength and
quality. If you can not have a steady picture, please move the antenna to a better reception position.
Remark: This antenna can stand for vertical or horizontal reception, showed as Fig. 3 when you find
the best position, please fix it.
Fig. 3
Horizontal
DVB-T 10
Fig. 1
Fig. 2
Vertical
Wall mounting
