ESD Wrist Strap Tester
Item no. 1364569
Intended use
Use this ESD Wrist Strap Tester to test the quality (resistance) of ESD wrist straps. ESD wrist straps prevent
electrostatic charge and formation of sparks, which can result in the destruction of highly-sensitive electronic
components and parts. The test result is immediately shown to the user by means of three indicator lamps
and an acoustic signal.
For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use the
product for purposes other than those described above, the product may be damaged. In addition, improper
use can cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and
keep them. Make this product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and
product names are trademarks of their respective owners. All rights reserved.
Delivery content
• ESD Wrist Strap Tester
• Test cable
• Operating instructions
Safety instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
a) Persons / Product
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. These may become dangerous
playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it from
any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
• Also observe the safety and operating instructions of any other devices which are connected
to the product.
• Use in dry indoor spaces only.
b) (Rechargeable) batteries
• Correct polarity must be observed while inserting the (rechargeable) battery.
• The (rechargeable) battery should be removed from the device if it is not used for a long period
of time to avoid damage through leaking. Leaking or damaged (rechargeable) batteries might
cause acid burns when in contact with skin, therefore use suitable protective gloves to handle
corrupted (rechargeable) batteries.
• (Rechargeable) batteries must be kept out of reach of children. Do not leave (rechargeable)
batteries lying around, as there is risk, that children or pets swallow them.
• (Rechargeable) batteries must not be dismantled, short-circuited or thrown into fire. Never
recharge non-rechargeable batteries. There is a risk of explosion!
c) Miscellaneous
• Consult an expert when in doubt about operation, safety or connection of the device.
• Maintenance, modifications and repairs are to be performed exclusively by an expert or at a
qualified shop.
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.

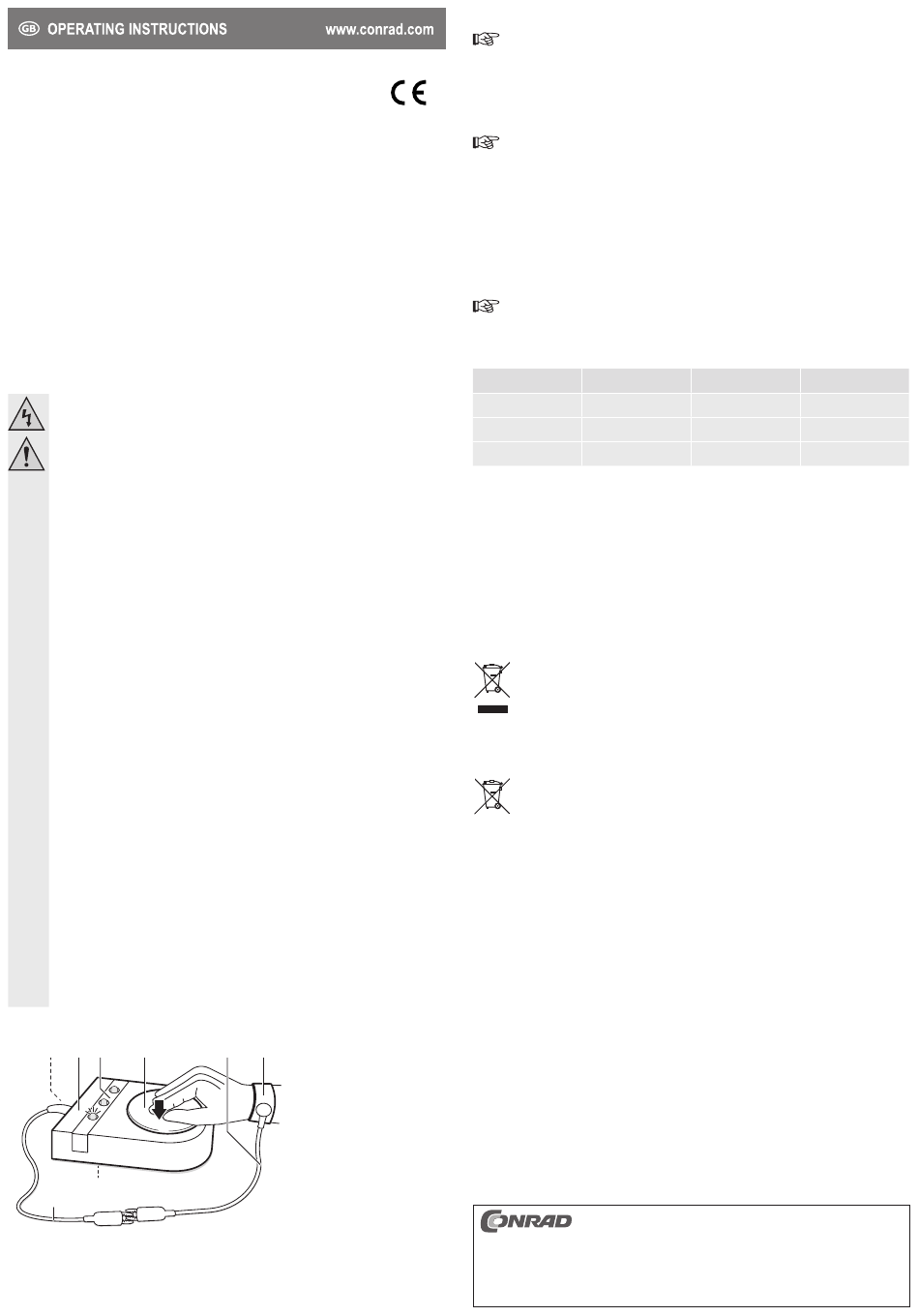

Operating elements
1
2
4
5
3
8
Version 06/15
6
7
1 Connection jack
2 ESD Wrist Strap Tester
3 Battery compartment
4 Indicator lights
5 Button
6 Discharge cable (not included)
7 Wrist strap (not included)
8 Test cable
Operation
To ensure consistent testing conditions, it is recommended to test ESD wrist straps in a setting with
controlled temperature and humidity.
a) Inserting the battery
1. Turn over the product and slide up the battery compartment cover to open.
2. Insert one 9 V block battery into the battery compartment (3) and connect the battery cable to the battery.
3. Close the battery compartment.
Follow the same steps to replace the battery. Replace the battery at least once a year.
b) Connection
1. Place the tester (2) on a dry, clean and non-sensitive surface.
2. Test the continuity of the discharge cable (6) before connection to a continuity tester to prevent damage
to the cable.
3. Fasten the ESD wrist strap (7) to your wrist.
4. Plug the banana plug on the test cable (8) into the connection jack (1).
5. Connect the discharge cable on the wrist strap to the terminal on the test cable. Ensure good contact!
c) Conducting a test
Replace the battery when the acoustic signal no longer sounds.
1. Press and hold down the button (5) using your hand.
2. The test result is indicated by means of indicator lamps (4) and an acoustic signal. See the following
table.
Indicator lamp
Result
Green GOOD
OK
Red LOW
Not OK
Red HIGH
Not OK
• If the result is not satisfactory, there may be problems with the wrist strap or the discharge cable. Conduct
suitable tests to troubleshoot.
• Caution! Too low a resistance poses a risk of personal injury.
Maintenance and cleaning
• Remove the battery before cleaning.
• Use a dry, soft and clean cloth for cleaning. Do not use any aggressive cleaning agents as these may lead
to discoloration. To prevent scratch marks, do not apply too much force on the surface during cleaning.
• You can easily remove dust using a clean, long-haired brush.
Disposal
a) Product
Electronic devices are recyclable waste and must not be disposed of in the household waste. At
the end of its service life, dispose of the product according to the relevant statutory regulations.
Remove any inserted (rechargeable) batteries and dispose of them separately from the product.
b) (Rechargeable) batteries
You as the end user are required by law (Battery Ordinance) to return all used batteries/rechargeable
batteries. Disposing of them in the household waste is prohibited.
Contaminated (rechargeable) batteries are labelled with this symbol to indicate that disposal
in the domestic waste is forbidden. The designations for the heavy metals involved are: Cd =
Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash
icon on the left).
Used (rechargeable) batteries can be returned to collection points in your municipality, our stores
or wherever (rechargeable) batteries are sold.
You thus fulfil your statutory obligations and contribute to the protection of the environment.
Technical data
Power supply ......................................... 9 V block battery
Battery service life ................................. approx. 55,000 tests (depending on the battery quality)
Tolerances ............................................. 800 kΩ: +/- 10%
9 MΩ:
Test cable length .................................... 3 m +/- 15 mm
Operating conditions .............................. 0 to +40 °C, 20 - 95 % RH (non-condensing)
Storage conditions ................................. 0 to +40 °C, 20 - 95 % RH (non-condensing)
Dimensions (W x H x D) ........................ 78 x 39 x 114 mm
Weight ................................................... 131 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau
(www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming,
or the capture in electronic data processing systems require the prior written approval by the editor.
Reprinting, also in part, is prohibited. This publication represent the technical status at the time of
printing.
© Copyright 2015 by Conrad Electronic SE.
Resistance
Acoustic signal
800 kΩ ≤ R ≤ 9 MΩ
Yes
R < 800 kΩ
No
R ≥ 9 MΩ
No
+/- 10%
V1_0615_02_JH
