Adjusting the Projection Angle

Caution
What to do before adjustment
• Turn on the projector as explained in its operation manual.
• Roughly determine the size of the projected picture with the zoom lens, before adjusting tilt angle.
• The best picture is produced when the projector is square with the screen.
Ask your dealer to mount the module on the ceiling
• To install, refer to this manual, and the installation manuals of the ceiling mount and the projector.

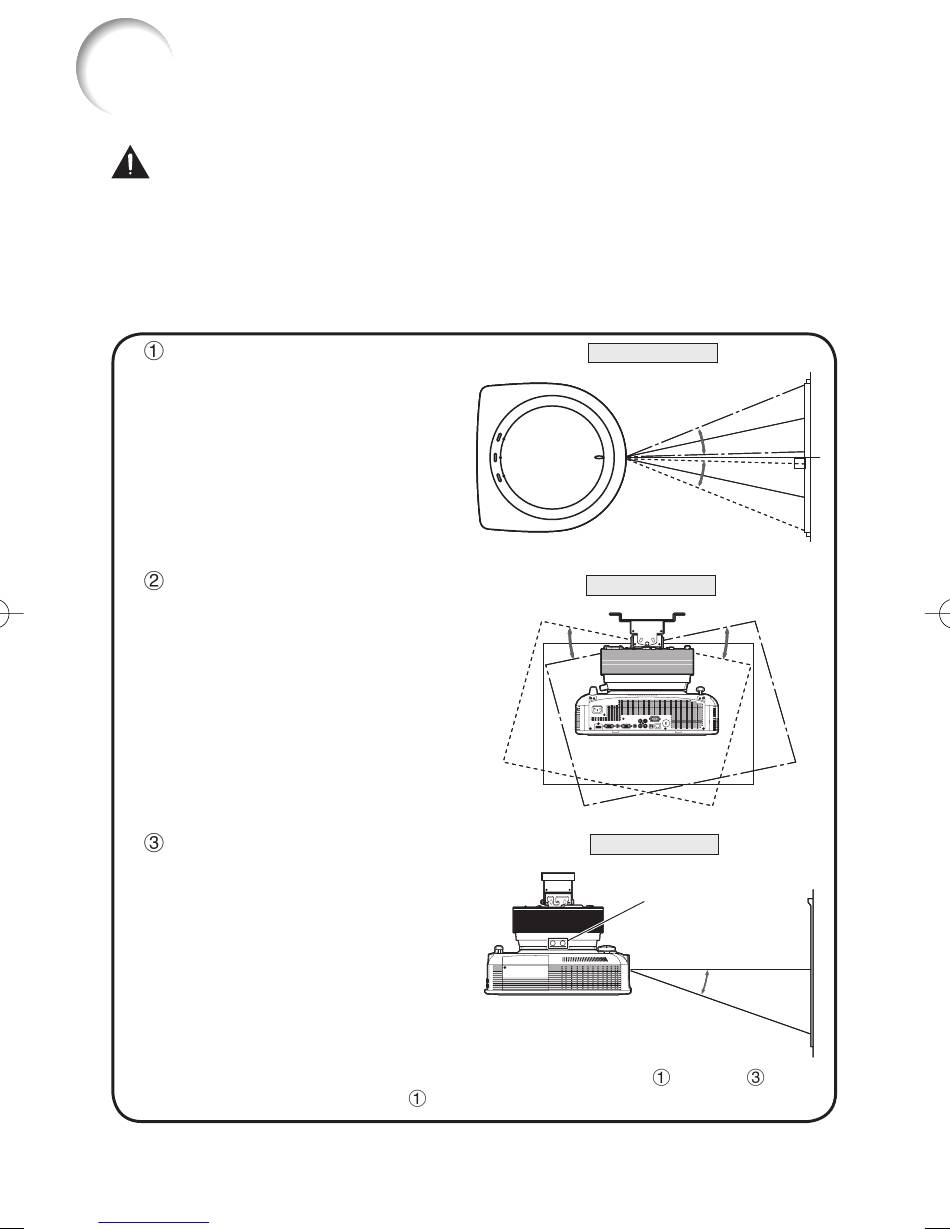

Adjust the horizontal angle so
that the picture is in the
middle of the screen. Then,
tighten the horizontal angle
adjustment bolts fi rmly.
Make adjustments so that the
picture does not tilt to one
side even when the ceiling-
mount rotating module is
rotated. Then, fi rmly tighten
both the vertical angle
adjustment bolts and the tilt
angle adjustment bolts.
After adjusting the tilt angle
so that the picture is correctly
positioned, securely tighten
the angle adjustment screws
on the ceiling-mount rotating
module.
If the picture is not properly positioned after performing steps
readjust the projector from step
18
Downloaded from www.Manualslib.com manuals search engine
Seen from below Seen from below
Seen from the rear Seen from the rear
±10° ±10°
Seen from the side Seen from the side
.
±10° ±10°
±10° ±10°
±10° ±10°
Angle adjustment Angle adjustment
screws screws
10° 10°
through ,
