Installation Examples

Caution
Important notes on installation
• When you install the projector system on a ceiling, reinforce the parts which bear the system's weight
through the bolts as required, so as to withstand the load and prevent horizontal rolling.
• Use M8-type bolts.
• If you install the projector with the AN-TK201 ceiling mount, we recommend that you use wires to
prevent the projector system from rolling laterally.
• Use an AC outlet that is easy to reach, so that you can easily plug in or unplug your projector whenever
necessary.

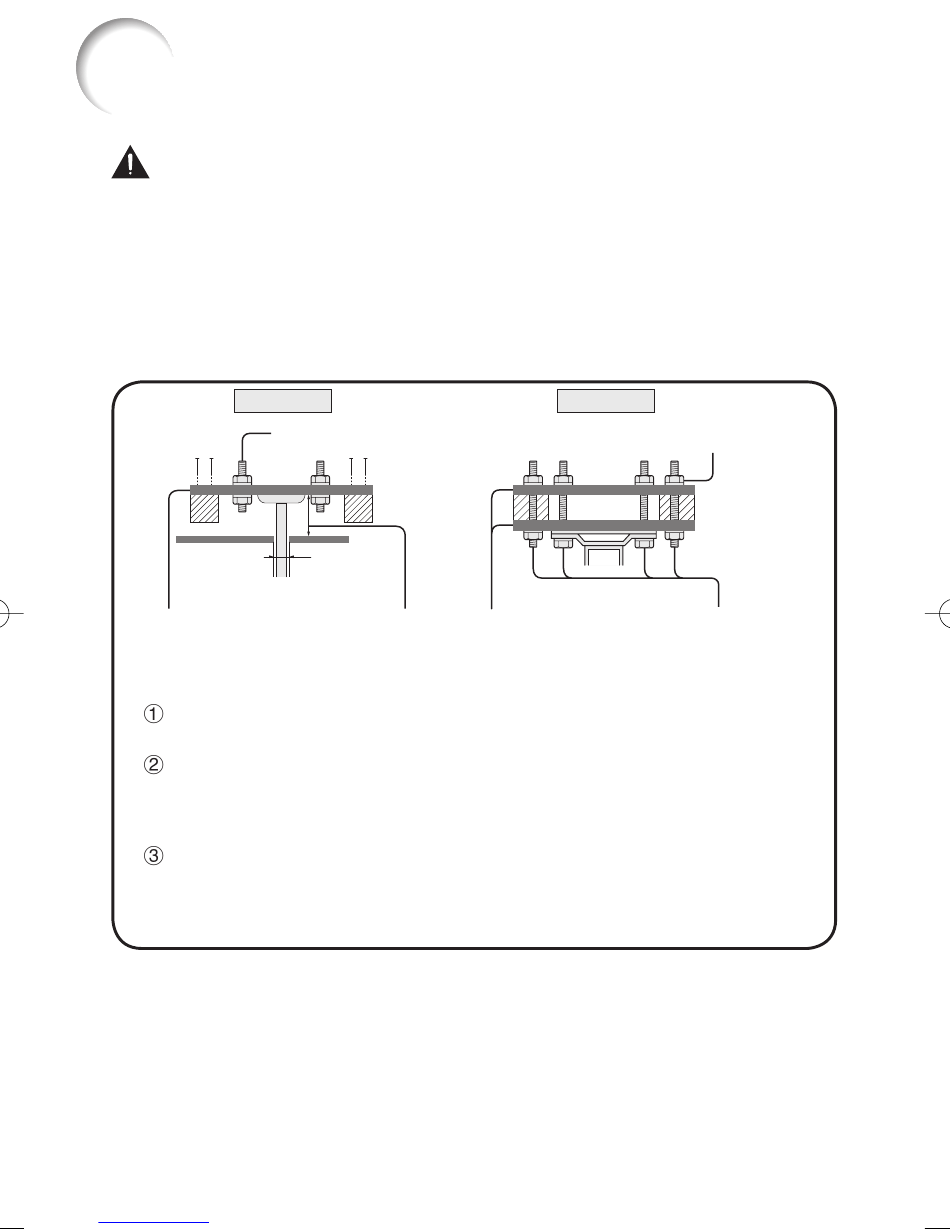

For wooden ceilings
Ceiling
Mounting boards
Strong enough to support
the weight of the whole
system.
Drill a hole through the ceiling for mounting bolts and the height-
adjusting pole, where wanting to install the projector.
Drill holes in a mounting board matching those in the ceiling mount,
and tighten the mounting bolts enough to keep the ceiling mount.
Pass the ceiling mount through the hole before fi xing it in place.
(Tighten the bolts fi rmly once the projector is installed.)
From above, pass the mounting bolts through the holes in the
ceiling, and anchor the mounting board to ceiling beams. Make sure
the beams and the mounting board will support the weight of the
whole system, reinforcing parts where necessary.
Downloaded from www.Manualslib.com
AN-TK201
Mounting bolt (M8-type)
ø65-ø75
Through hole
Determine the size of the
through hole based on the
amount of clearance here.
manuals search engine
AN-TK202
Nut and washer
Mounting bolt
(M8-type)
19
