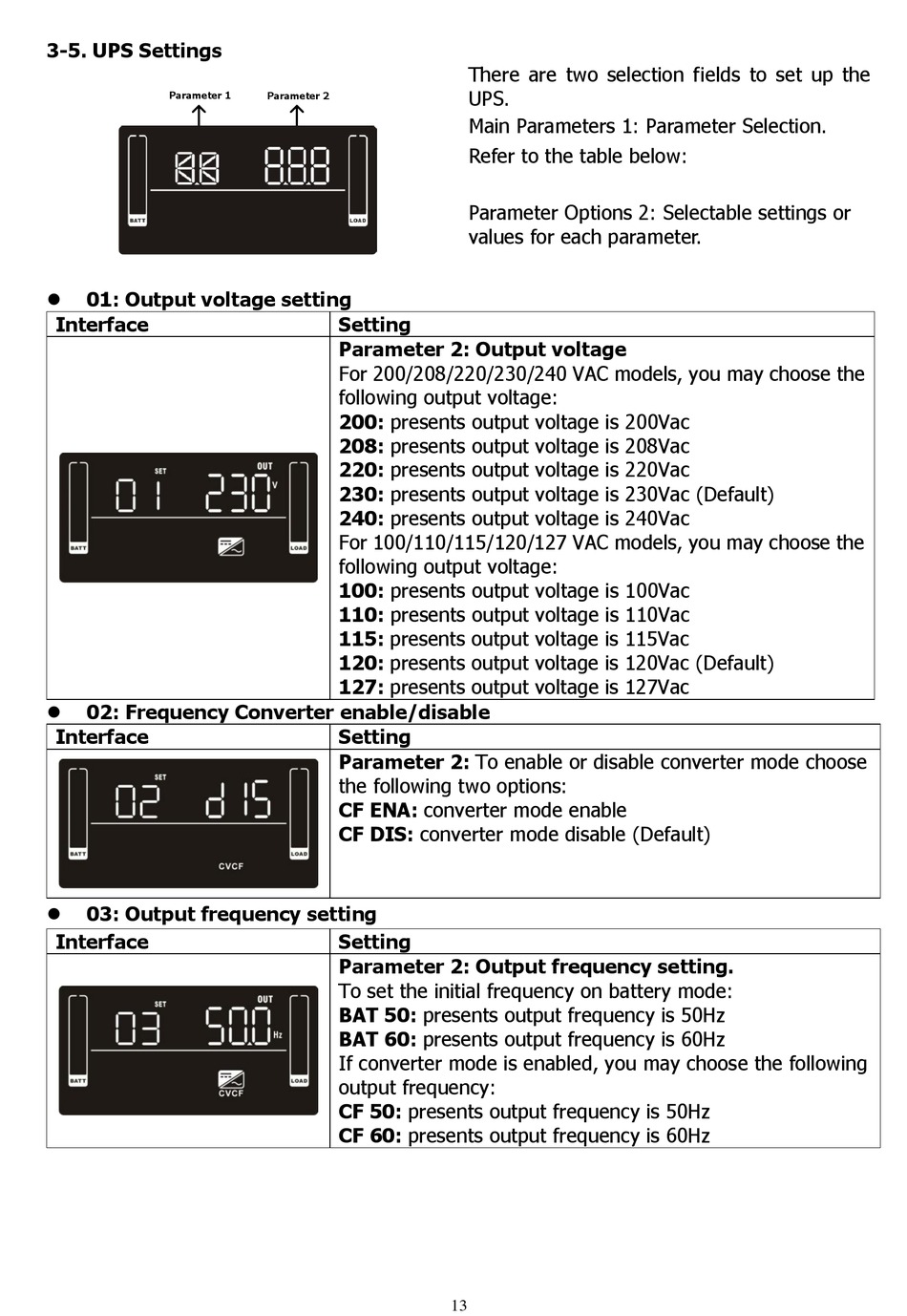

3-5. UPS Settings

Parameter 1
01: Output voltage setting

Interface
02: Frequency Converter enable/disable

Interface
03: Output frequency setting

Interface
Parameter 2
Setting
Parameter 2: Output voltage
For 200/208/220/230/240 VAC models, you may choose the
following output voltage:
200: presents output voltage is 200Vac
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
230: presents output voltage is 230Vac (Default)
240: presents output voltage is 240Vac
For 100/110/115/120/127 VAC models, you may choose the
following output voltage:
100: presents output voltage is 100Vac
110: presents output voltage is 110Vac
115: presents output voltage is 115Vac
120: presents output voltage is 120Vac (Default)
127: presents output voltage is 127Vac
Setting
Parameter 2: To enable or disable converter mode choose
the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
Setting
Parameter 2: Output frequency setting.
To set the initial frequency on battery mode:
BAT 50: presents output frequency is 50Hz
BAT 60: presents output frequency is 60Hz
If converter mode is enabled, you may choose the following
output frequency:
CF 50: presents output frequency is 50Hz
CF 60: presents output frequency is 60Hz
There are two selection fields to set up the
UPS.
Main Parameters 1: Parameter Selection.
Refer to the table below:
Parameter Options 2: Selectable settings or
values for each parameter.
