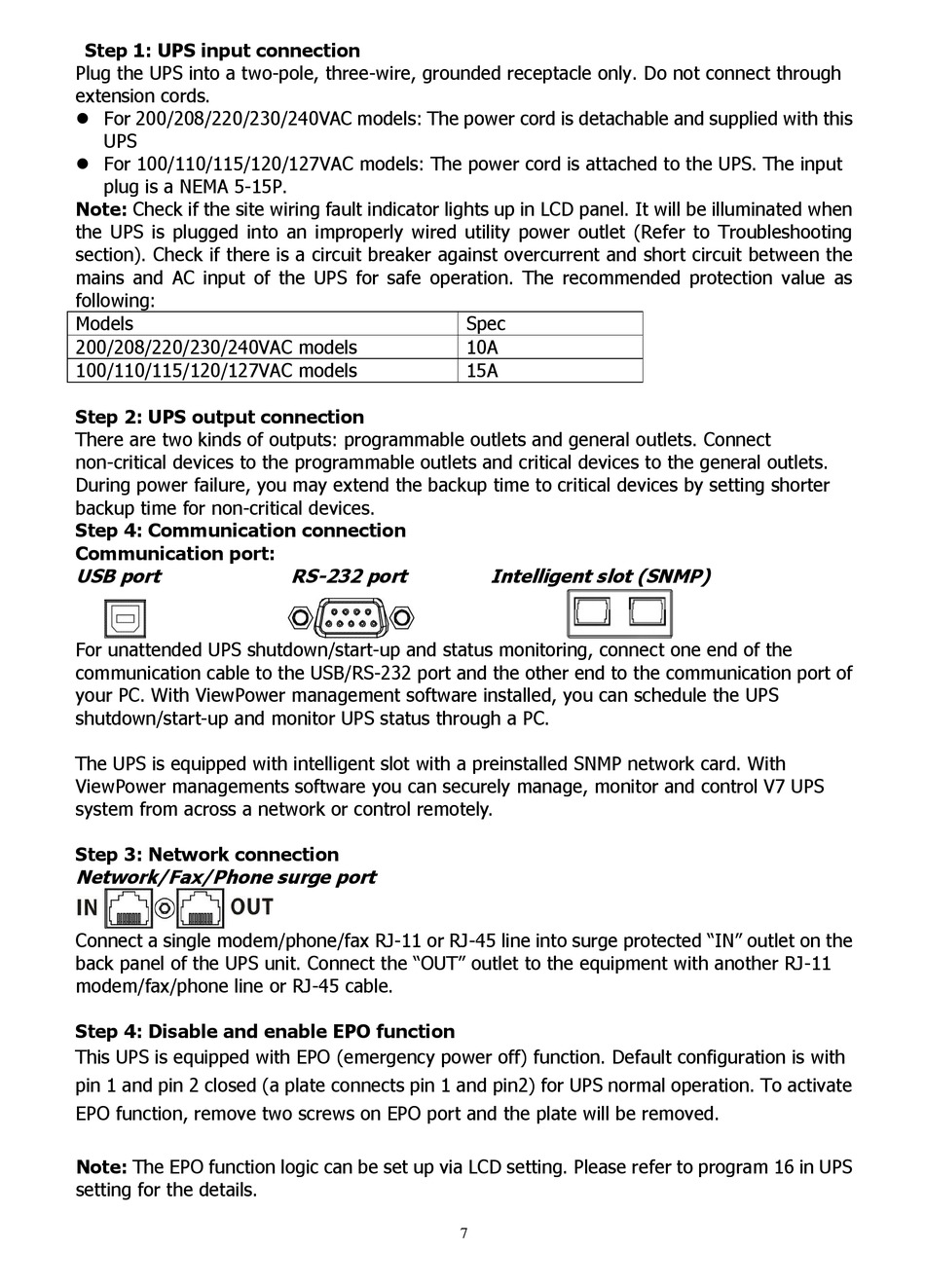

Step 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Do not connect through
extension cords.
 For 200/208/220/230/240VAC models: The power cord is detachable and supplied with this
UPS
 For 100/110/115/120/127VAC models: The power cord is attached to the UPS. The input
plug is a NEMA 5-15P.
Note: Check if the site wiring fault indicator lights up in LCD panel. It will be illuminated when
the UPS is plugged into an improperly wired utility power outlet (Refer to Troubleshooting
section). Check if there is a circuit breaker against overcurrent and short circuit between the
mains and AC input of the UPS for safe operation. The recommended protection value as
following:
Models
200/208/220/230/240VAC models
100/110/115/120/127VAC models
Step 2: UPS output connection
There are two kinds of outputs: programmable outlets and general outlets. Connect
non-critical devices to the programmable outlets and critical devices to the general outlets.
During power failure, you may extend the backup time to critical devices by setting shorter
backup time for non-critical devices.
Step 4: Communication connection
Communication port:
USB port
For unattended UPS shutdown/start-up and status monitoring, connect one end of the
communication cable to the USB/RS-232 port and the other end to the communication port of
your PC. With ViewPower management software installed, you can schedule the UPS
shutdown/start-up and monitor UPS status through a PC.
The UPS is equipped with intelligent slot with a preinstalled SNMP network card. With
ViewPower managements software you can securely manage, monitor and control V7 UPS
system from across a network or control remotely.
Step 3: Network connection
Network/Fax/Phone surge port
Connect a single modem/phone/fax RJ-11 or RJ-45 line into surge protected "IN" outlet on the
back panel of the UPS unit. Connect the "OUT" outlet to the equipment with another RJ-11
modem/fax/phone line or RJ-45 cable.
Step 4: Disable and enable EPO function
This UPS is equipped with EPO (emergency power off) function. Default configuration is with
pin 1 and pin 2 closed (a plate connects pin 1 and pin2) for UPS normal operation. To activate
EPO function, remove two screws on EPO port and the plate will be removed.
Note: The EPO function logic can be set up via LCD setting. Please refer to program 16 in UPS
setting for the details.
RS-232 port
Spec
10A
15A
Intelligent slot (SNMP)
