First Installation; Dcf Radio Controlled Time Reception - TFA 30.3039.IT Gebrauchsanweisung

Connector socket
Battery
compartment

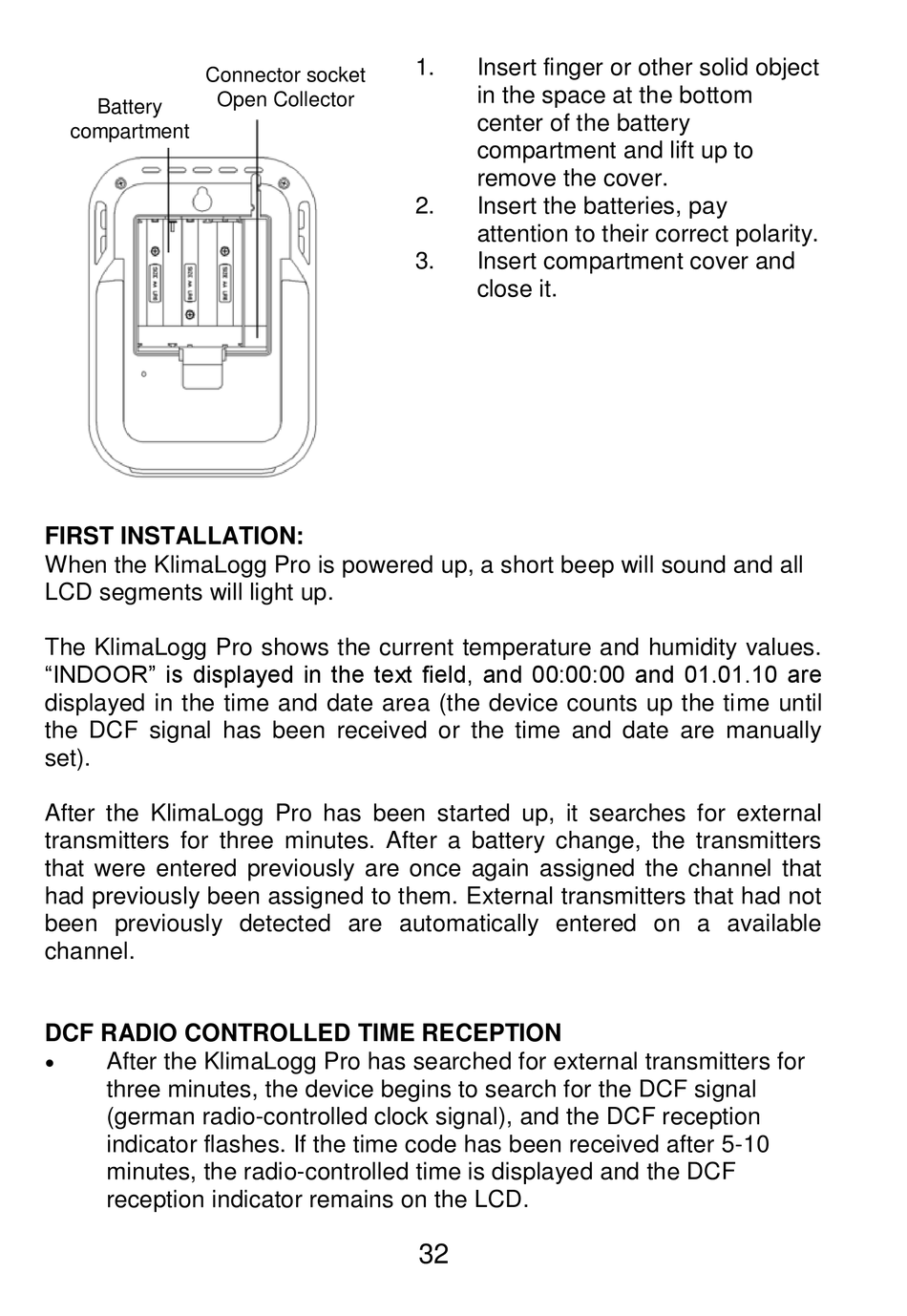

FIRST INSTALLATION:

When the KlimaLogg Pro is powered up, a short beep will sound and all
LCD segments will light up.
The KlimaLogg Pro shows the current temperature and humidity values.
"INDOOR" is displayed in the text field, and 00:00:00 and 01.01.10 are
displayed in the time and date area (the device counts up the time until
the DCF signal has been received or the time and date are manually
set).
After the KlimaLogg Pro has been started up, it searches for external
transmitters for three minutes. After a battery change, the transmitters
that were entered previously are once again assigned the channel that
had previously been assigned to them. External transmitters that had not
been previously detected are automatically entered on a available
channel.

DCF RADIO CONTROLLED TIME RECEPTION


After the KlimaLogg Pro has searched for external transmitters for
three minutes, the device begins to search for the DCF signal
(german radio-controlled clock signal), and the DCF reception
indicator flashes. If the time code has been received after 5-10
minutes, the radio-controlled time is displayed and the DCF
reception indicator remains on the LCD.
Open Collector
1. Insert finger or other solid object
in the space at the bottom
center of the battery
compartment and lift up to
remove the cover.
2. Insert the batteries, pay
attention to their correct polarity.
3. Insert compartment cover and
close it.
32
