Technical Data

Type BDT-Advanced
Power supply 24 V DC ± 15 %
Ripple < 10 %
Rated current 1 A
Standby current max. 50 mA
Torque 10 Nm
Turning angle 90° or 180°
Running time app. 8 Sec. / 180°
Lifetime > 10.000 Cycles
Duty cycle 30 % (cycle time10min.)
Housing Zinc die casting, ABS,
polycarbonate
Ingress protection IP 40
Temp. range -5°C ... +60°C
Connection 6 pole screw terminal

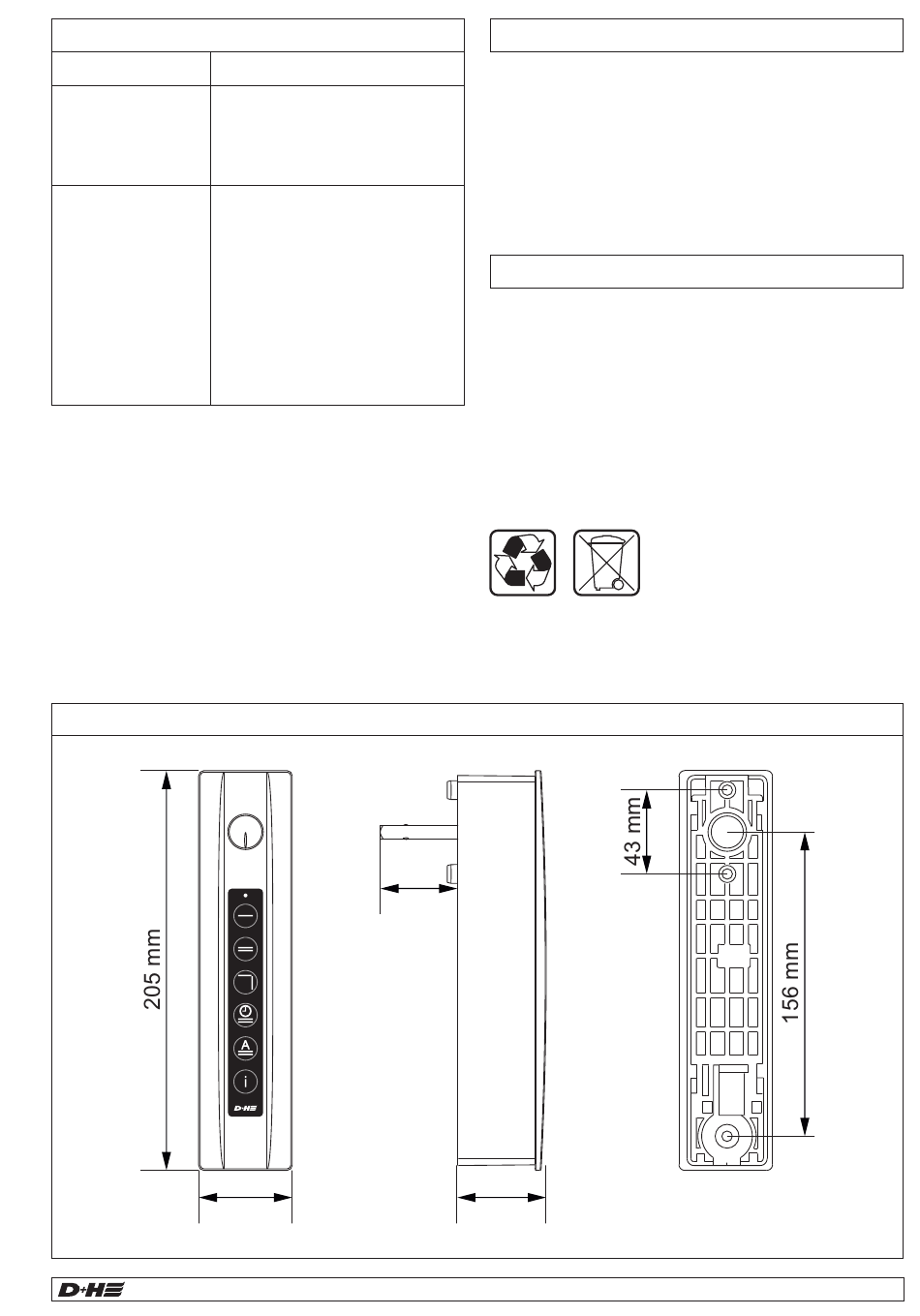

Dimensions

48 mm
99.828.08 1.0/12/19

Maintenance and cleaning

Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repair is to be carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft
cloth.
Do not use cleaning agents or solvents.

Disposal

Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
37 mm
45 mm
