1. n
1.1 g
enerAl notes on sAfety
This operation manual is applicable for the machine UKC
3-R. The machine may only be handled by personnel who
are qualified.
Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may con-
tact hidden wiring or its own cord. Contact with a «live»
wire will make exposed metal parts of the tool «live» and
shock the operator.
WARNING Read all safety warnings and all in-
structions. Failure to follow the warnings and in-
structions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future refer-
ence.
1.2 u
se of the mAchine for purposes for
which it is intended
The machine is designed to polishing and clean welds
with compacted nonwoven wheels and pleated grinding
mops without water.
1.3 i
ncorrect use
All uses other than those described under section
1.2 are regarded as incorrect use and are there-
fore not admissible.
1.4 ec
declArAtion of conformity
Otto Suhner GmbH of Trottäcker 50, D-79701 Bad Säck-
ingen, hereby declares under sole responsibility that the
product with the serial or batch no. (see reverse side) com-
plies with the requirements under the Directive 2014/30/
EU, 2006/42/EC, 2011/65/EU. Applied standards: EN ISO
12100, EN 60745, EN 55014-1, EN 55014-2, EN 61000-
3-2, EN 61000-3-3. Document Agent: T. Fischer. D-Bad
Säckingen, 09/2020.
T. Fischer/Managing Director
2. c
2.1 p
rior to tAKing the mAchine into serVice
Before connecting tool to a power
source, be sure the voltage sup-
plied is the same as specified on
the name plate of the tool. The power sup-
ply should not vary more than 10% above or below the
voltage indicated on the nameplate. Check grinding tool
prior to use. The grinding tool must be mounted centrally
and positioned against the limit stop. The maximum al-
lowable speed of the tool and of the chuck may not be
exceeded under any circumstances. Observe national
22
S
oteS on afety
ommISSIonIng
regulations. Fit hand protection.
2.2 t
AKing the mAchine into serVice

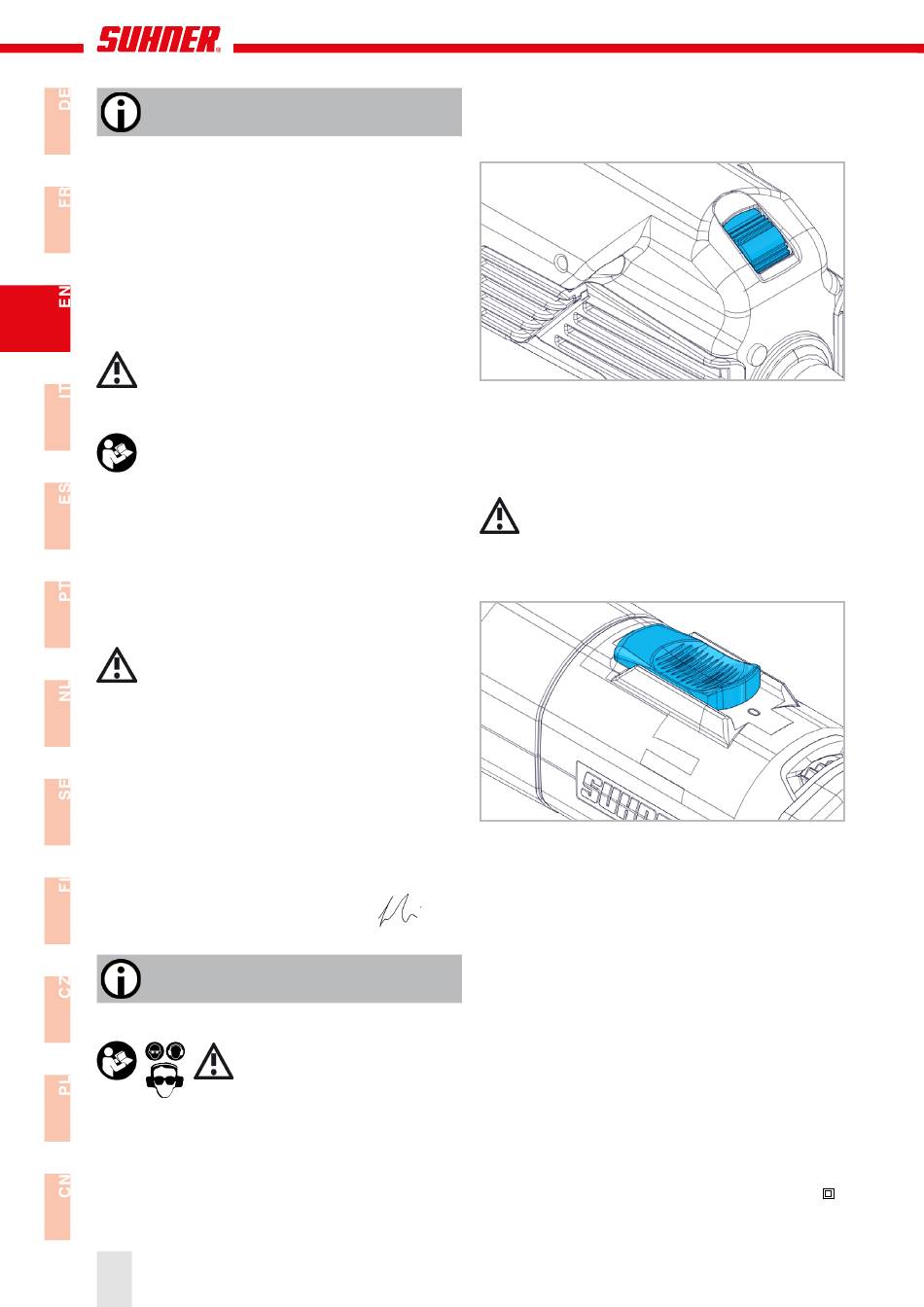

Preselect speed with adjusting wheel according to speed
table.
-1
Level 1: 1400min
-1
Level 2: 1800min
-1
Level 3: 2200min
During operation never exceed the speed which
has been matched to the grinding tool specifica-
tions!
2.2.1 t /t
unr on urn off
The switch must be in the OFF position. To turn the ma-
chine on, push the ON/OFF switch toward the front unteil
it clicks in. Press the ON/OFF swith to trigger the blocking
and the machine shuts down.
2.3 r

Ating dAtA

Power voltage
Power Input 120/230V
Power Output 120/230V
Power Input 240V
Power Output 240V
No-load speed
Max. tool Ø
Grinding spindle thread
Sound pressure level EN 60745
Vibration EN 60745
Weight w/o cable
Protection class
-1
Level 4: 2500min
-1
Level 5: 2900min
-1
Level 6: 3200min
120/230/240V, 50/60Hz
500W
300W
500W
300W
-1
1400-3200min
150mm
M14 / UNC 5/8"-11
77dB(A), K=3dB
2 2
4.9m/s , K=1.5m/s
1.8kg
II
