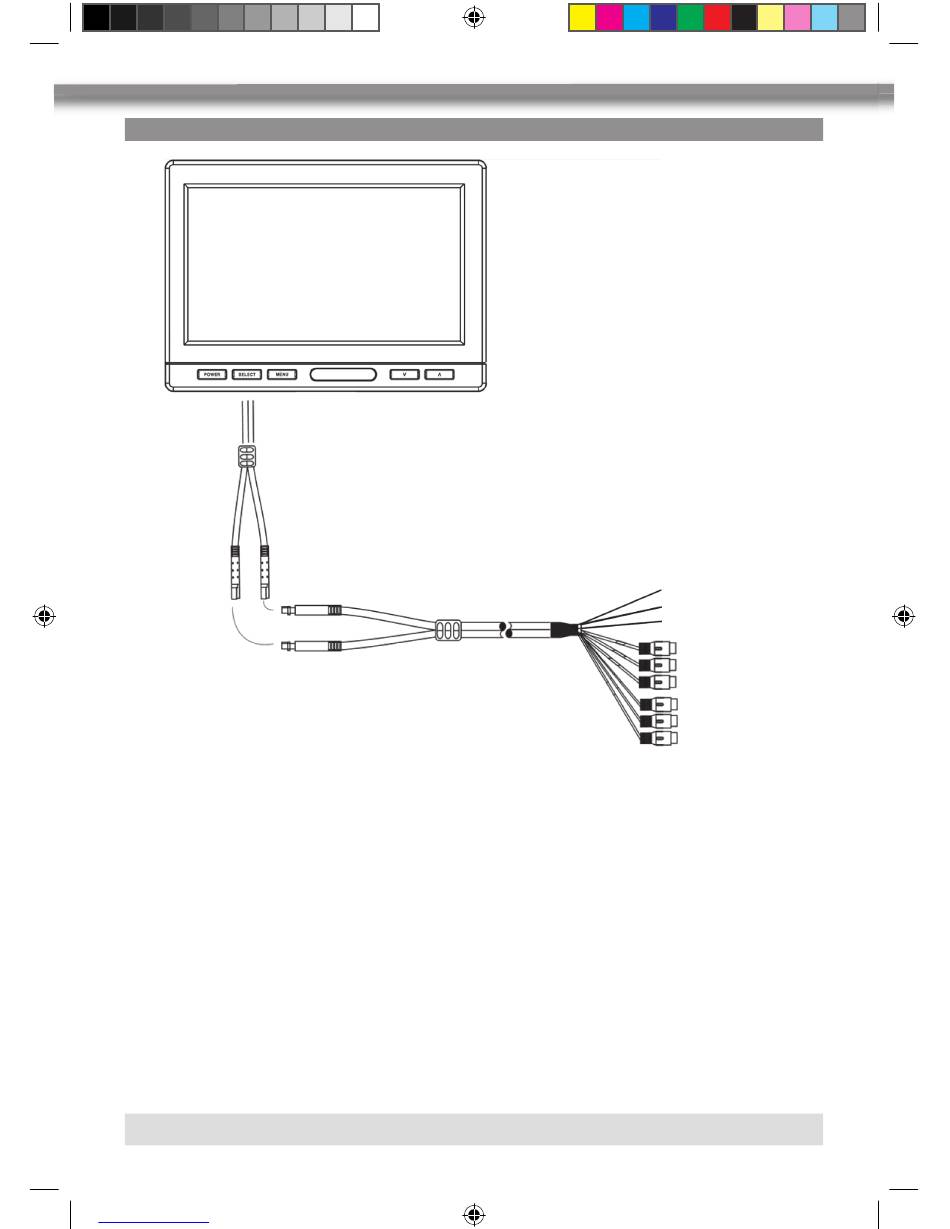

CONNECTION LAYOUT

+12V (yellow)
■ Connect to a permanent +12V (DC) power supply in the car.
ACC (red)
■ If there is no ACC available, please connect ACC lead to the power supply with a
switch.
GND (black)
■ Connect to chassis ground or negative terminal of the car battery.
AV1 and AV2
■ RCA video input (Yellow): Connection available for external video source.
■ RCA audio input R (Red): Connection available for external audio source.
■ RCA audio input L (White): Connection available for external audio source.
