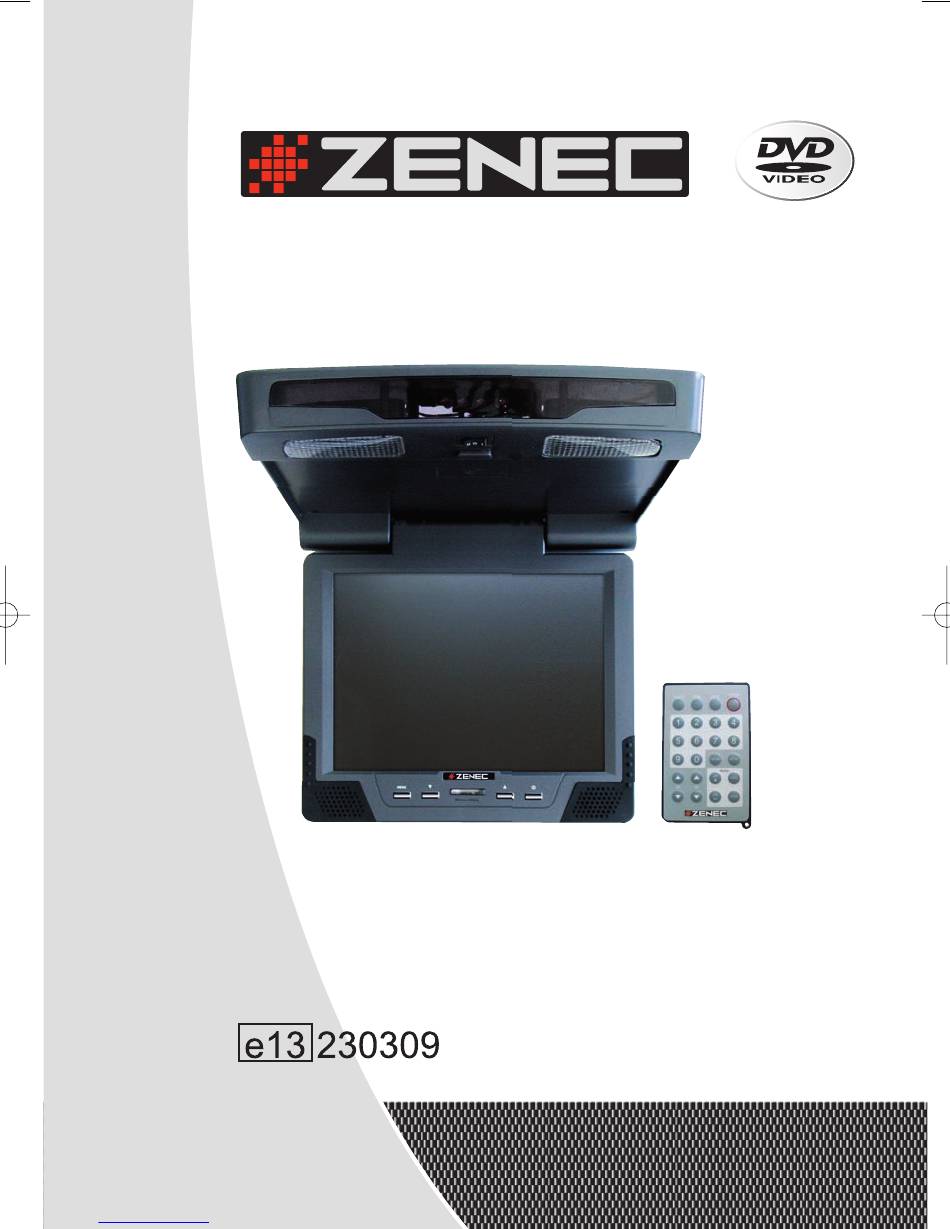

10.4“ FLIP DOWN TFT-LCD ACTIVE MATRIX MONITOR MODEL NO: ZEM-1040RM INSTRUCTION MANUAL Downloaded from www.Manualslib.com manuals search engine...
Built-in twin dome lights SPECIAL FEATURES 4:3 High Density Wide Screen Display: The ZEM-1040RM is an overhead (flip down) TFT active matrix 4:3 widescreen video monitor, featuring a 10.4" (diagonally measured) high quality LCD screen. It deploys a 480’000 dots high-resolution TFT panel with 800 horizontal x 600 vertical pixels, to give you excellent picture detail.
SAFETY RECOMMENDATIONS - Operating temperature: Never expose the monitor to extreme heat or direct sunlight. Please note, that TFT monitors should not be operated in very cold environments (below 0°C). During winter time, wait until the passenger compartment of your vehicle has heated up enough, to allow for a proper function of your LCD monitor.
GND e White wire: To be connected to the switched lead of the vehicles internal lighting A/V Interface (Black Box): The ZENEC ZEM-1040RM comes with an A/V interface blackbox, that features the following in- and ouputs: e Extension lead with 6-pin pc-plug for connection of the TFT monitor e A red* and a black power supply wire to be connected to the on board voltage of the vehicle.
INPUTS & CONTROL KEYS ON THE MONITOR MENU POWER KEYS MENU key e To access the on-screen menu and toggle through the keys e Allows you to de- or increase picture adjustment parameters POWER key e On/Off switch with LED power indicator ON-SCREEN MENU CONTRAST: To adjust the contrast setting of the picture, adjustable from 0 to 100 BRIGHTNESS: To adjust the brighness of the picture, adjustable from 0 to 100...
CONTROLS & KEYS OF THE REMOTE CONTROL 1) TV/CATV e No function 2) TV/AV e No function 3) Mute e Key to mute the headphone output 4) Power e Key to turn on, or switch off the monitor 5) Numeric keys e No function 6) FM/AM e No function 7) Setup e No function 8) Func e To select the picture...
Seite 7
Deckenmonitor mit eingebauter Innenbeleuchtung BESONDERHEITEN 4:3 High Density Display: Der Deckenmonitor ZEM-1040RM verfügt über ein A-Grade Aktiv-Matrix TFT Farbdisplay im 4:3 Format mit 10.4” (26.2cm) Bilddiagonale. Das hoch- auflösende LCD Display verfügt über 800 x 600 Bildpunkte, was eine Gesamtzahl von 480’000 Dots mit perfekt aufgelösten Bilddetails und hoher Leuchtintensität ergibt.
SICHERHEITS-HINWEISE - Betriebstemperatur Das Gerät sollte keiner extremen Hitzeeinwirkung ausgesetzt werden! Beachten Sie weiterhin, dass TFT Panels unterhalb von 0°C nicht korrekt funktionieren. Bei sehr tiefen Temperaturen im Winter, kann es daher zu Funktionsstörungen des Panels kommen. Warten Sie mit dem Betrieb des Monitors ab, bis sich der Fahrgastraum durch die Heizung oder die Klimaanlage etwas aufgewärmt hat.
Seite 9
Rot: +12V Dauerstrom e Schwarz: Masse e Weiss: Schaltkabel für Innenbeleuchtung A/V Interface (Black Box): Der ZEM-1040RM Monitor verfügt über ein externes AV- Interface, welches folgende Anschlussoptionen zulässt: e Verlängerungskabel mit 6-Pin PC-Stecker zum Anschluss des Monitors e Ein rotes* und ein schwarzes Kabel zum Anschluss an die Stromversorgung im Fahrzeug e Eine direkt an der Blackbox sitzende Cinch-Eingangsbuchse, für den Anschluss einer...
MONITOR – EINGÄNGE UND TASTENBELEGUNG MENU POWER TASTE TASTE TASTEN MENU Taste 3 Um in das On-Screen Menü zu gelangen und die unterschiedlichen Einstellmöglichkeiten der Bildwiedergabe anzuwählen Tasten 3 Um im On-Screen Menü die einzelenen Werte der Bildeinstellung zu verändern POWER Taste 3 Zum Ein und Ausschalten des Monitors, mit LED Funktionsanzeige ON-SCREEN MENÜFÜHRUNG CONTRAST: Anpassung des Kontrast-Wertes des Bildes, von 0 bis 100...
FERNBEDIENUNG – TASTENBELEGUNG 1) TV/CATV e Keine Funktion 2) TV/AV e Keine Funktion 3) Mute e Taste um den Kopfhörer- Ausgang stummzuschalten 4) Power e Taste um den Monitor ein- bzw. auszuschalten 5) Numerische Tasten e Keine Funktion 6) FM/AM e Keine Funktion 7) Setup e Keine Funktion 8) Func e Entspricht der MENU Taste am Monitor –...
