Emerson 651 Serie Inbetriebnahme Und Wartungsanleitung

AVENTICS - INSTALLATION AND MAINTENANCE INSTRUCTIONS
AVENTICS - INSTRUCTIONS D'INSTALLATION ET DE MAINTENANCE
AVENTICS - INBETRIEBNAHME - UND WARTUNGSANLEITUNG
AVENTICS - INSTRUCCIONES DE PUESTA EN MARCHA Y MANTENIMIENTO
AVENTICS - INSTRUZIONI DI MESSA IN SERVIZIO E MANUTENZIONE
AVENTICS - ALGEMENE INSTALLATIE- EN ONDERHOUDSINSTRUCTIES
AVENTICS - INSTALLASJONS- OG VEDLIKEHOLDSINSTRUKSER
AVENTICS - INSTALLATIONS- OCH UNDERHÅLLSINSTRUKTIONER
AVENTICS - ASENNUS - JA HUOLTO-OHJEET
AVENTICS - INSTALLATIONS - OG VEDLIGEHOLDSANVISNINGER
AVENTICS - INSTRUÇÕES DE INSTALAÇÃO E MANUTENÇÃO
AVENTICS - ΟΔΗΓΙΕΣ ΤΟΠΟΘΕΤΗΣΗΣ ΚΑΙ ΣΥΝΤΗΡΗΣΗΣ
AVENTICS - POKYNY PRO INSTALACI A ÚDRŽBU
AVENTICS - INSTRUKCJA MONTAŻU I KONSERWACJI
AVENTICS - TELEPÍTÉSI ÉS KARBANTARTÁSI ÚTMUTATÓ
AVENTICS - ИНСТРУКЦИЯ ПО УСТАНОВКЕ И ОБСЛУЖИВАНИЮ
AVENTICS - ОРНАТУ ЖӘНЕ ҚЫЗМЕТ КӨРСЕТУ НҰСҚАУЛАР

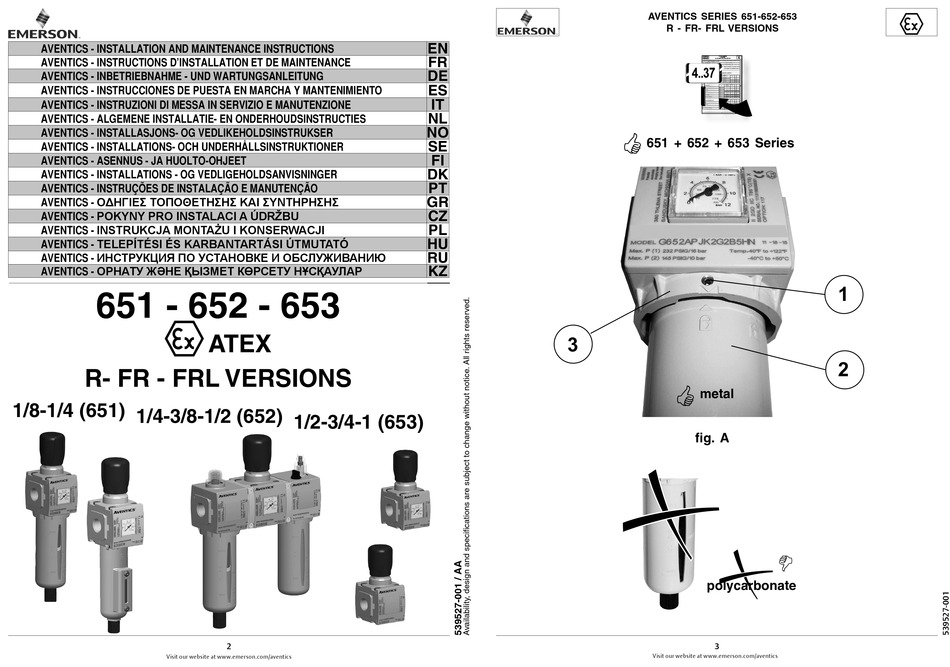

651 - 652 - 653
q
R- FR - FRL VERSIONS
1/8-1/4 (651) 1/4-3/8-1/2 (652)
Visit our website at www.emerson.com/aventics
ATEX
1/2-3/4-1 (653)
2
EN
FR
DE
ES
IT
NL
NO
SE
FI
DK
PT
GR
CZ
PL
HU
RU
KZ
3
AVENTICS SERIES 651-652-653
R - FR- FRL VERSIONS
R FR FRL VERSIONS
652 SERIES q
IN CONFORMITY WITH ATEX DIRECTIVE
moving parts. They are labelled with the CE marking and the explosion protection hexagon; operating instructions Products requiring approval are those that have their own potential ignition risk. These product categories include
and the EC declaration of conformity are provided.
These conditioning units of compressed air are envisaged for use in explosive atmospheres in the form of gas,
steam, mists and dust.
4..37 The classification into zones 1-21 of these units is defined by the following markings: II2GD IIC T85°C (T6) X
or II2GD IIC T100°C (T5) X.
Compliance with essential health and safety requirements is guaranteed by conformity to the European Standard
EN 13463-1.
This specific ATEX documentation is supplied as an addition to the general user instructions where de-
______________________________________________________________________________________________ tailed product information is provided.
! SPECIAL CONDITIONS FOR SAFE "X" USAGE :
Ambient temperature range and temperature classification
PRODUCTS:
- REGULATOR ambient P1 max.
- AIR PILOT OPERATED REGULATOR - MANIFOLD REGULATOR temperature range (°C) (bar) T T°C
STANDARD -20 to +50
Low Temperature -40 to +50 16 T6 85
High Temperature -20 to +80 16 T5 100
FPM/FKM -20 to +50 16 T6 85
Low/High Temperature -40 to +80 16 T5 100
High Temperature + FPM/FKM -20 to +80 16 T5 100
ambient P1 max.
- FILTER/REGULATOR bowl range (°C) temperature (bar) T T°C EN
plastic*
STANDARD metal -20 to +50 16 T6 85
plastic*
Low Temperature metal -40 to +50 16 T6 85
plastic*
High Temperature metal -20 to +80 16 T5 100
FPM/FKM plastic* -20 to +50 16 T6 85
metal
Low/High Temperature plastic*
metal -40 to +80 16 T5 100
High Temperature + FPM/FKM plastic*
* : Only with manual/semi auto drain. metal -20 to +80 16 T5 100
ambient
- COALESCING FILTER/REGULATOR bowl temperature (bar) P1 max. T T°C
range (°C)
STANDARD plastic* +1,7 to +50 16 T6 85
plastic* metal
High Temperature metal +1,7 to +80 16 T5 100
plastic*
FPM/FKM metal +1,7 to +50 16 T6 85
High Temperature + FPM/FKM plastic*
metal +1,7 to +80 16 T5 100
* : Only with manual/semi auto drain.
3 516023-001

651 + 652 + 653 Series

metal
fig. A

polycarbonate
3
Visit our website at www.emerson.com/aventics
q
1
2
