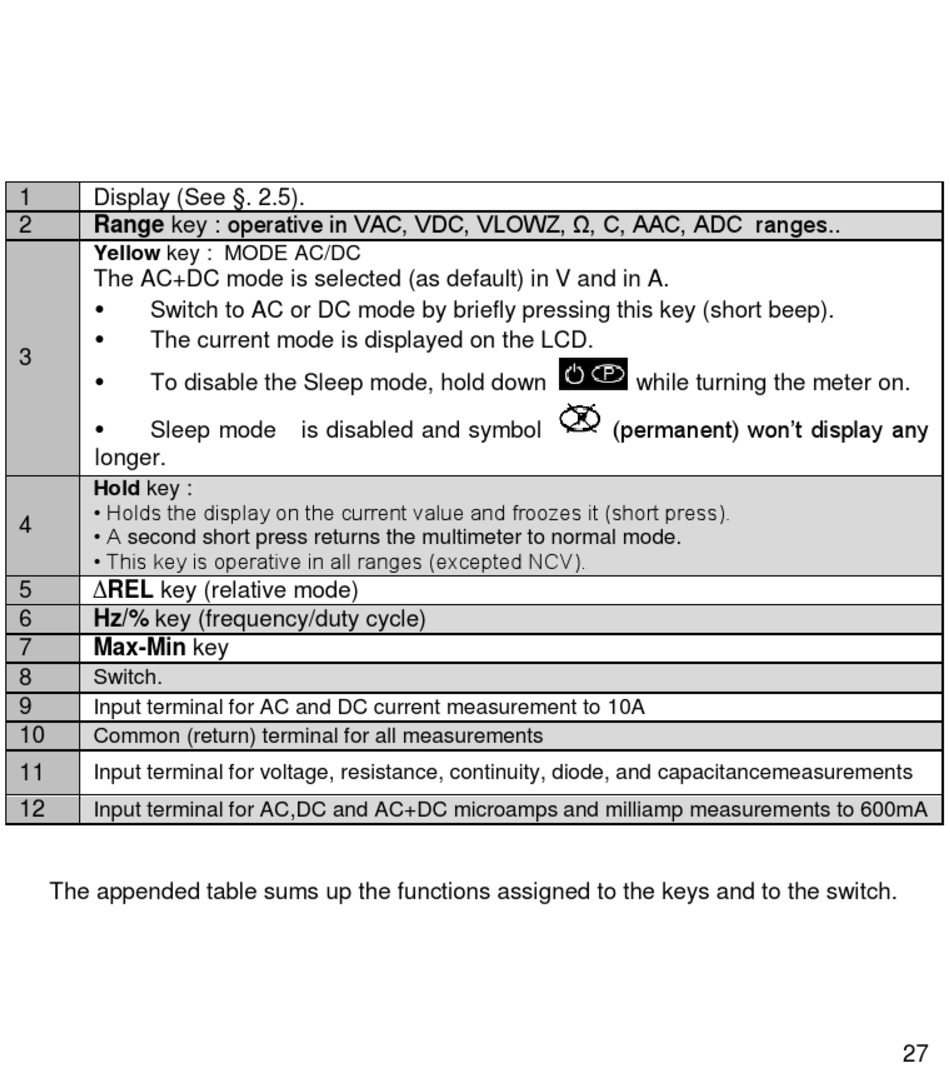

1 Display (See §. 2.5).
Range key : operative in VAC, VDC, VLOWZ, Ω, C, AAC, ADC ranges..
2
Yellow key : MODE AC/DC
The AC+DC mode is selected (as default) in V and in A.

Switch to AC or DC mode by briefly pressing this key (short beep).

The current mode is displayed on the LCD.
3

To disable the Sleep mode, hold down

Sleep mode
longer.
Hold key :
• Holds the display on the current value and froozes it (short press).
4
• A second short press returns the multimeter to normal mode.
• This key is operative in all ranges (excepted NCV).
∆REL key (relative mode)
5
6 Hz/% key (frequency/duty cycle)
7 Max-Min key
8 Switch.
9
Input terminal for AC and DC current measurement to 10A
10 Common (return) terminal for all measurements
11 Input terminal for voltage, resistance, continuity, diode, and capacitancemeasurements
12 Input terminal for AC,DC and AC+DC microamps and milliamp measurements to 600mA
The appended table sums up the functions assigned to the keys and to the switch.
is disabled and symbol
while turning the meter on.
(permanent) won't display any
