Adjusting the screen display

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be
adjusted automatically (CLOCK, PHASE, H-POS,
V-POS).
Note:
- When setting up this monitor for the first time or
after having changed an aspect of the current
system, perform an automatic screen adjustment
before use.
Automatic adjustment screen display
To perform an automatic adjustment, first display
an image that makes the entire screen very bright.
If you are using Windows, you can also use the
Adjustment Pattern on the accompanying Utility
Disk.
Displaying the Adjustment Pattern (for Windows)
This explanation is for Windows 95/98/2000/Me/XP,
and assumes that the floppy disk drive is "A drive".
Note:
- If the floppy disk drive of your computer is not
"A drive", please read the below substituting the
floppy disk drive you are using in place of
"A drive" or "A".
1. Place the Utility Disk (provided) into the
computer's A drive.
2. Open [My Computer] and select [3 ½ Floppy
(A:)]. If using Windows 3.1, open [File Manager]
and choose "A drive".
3. Double click on [Adj_uty.exe] to run the
Adjustment Program. The Adjustment Pattern will
appear.

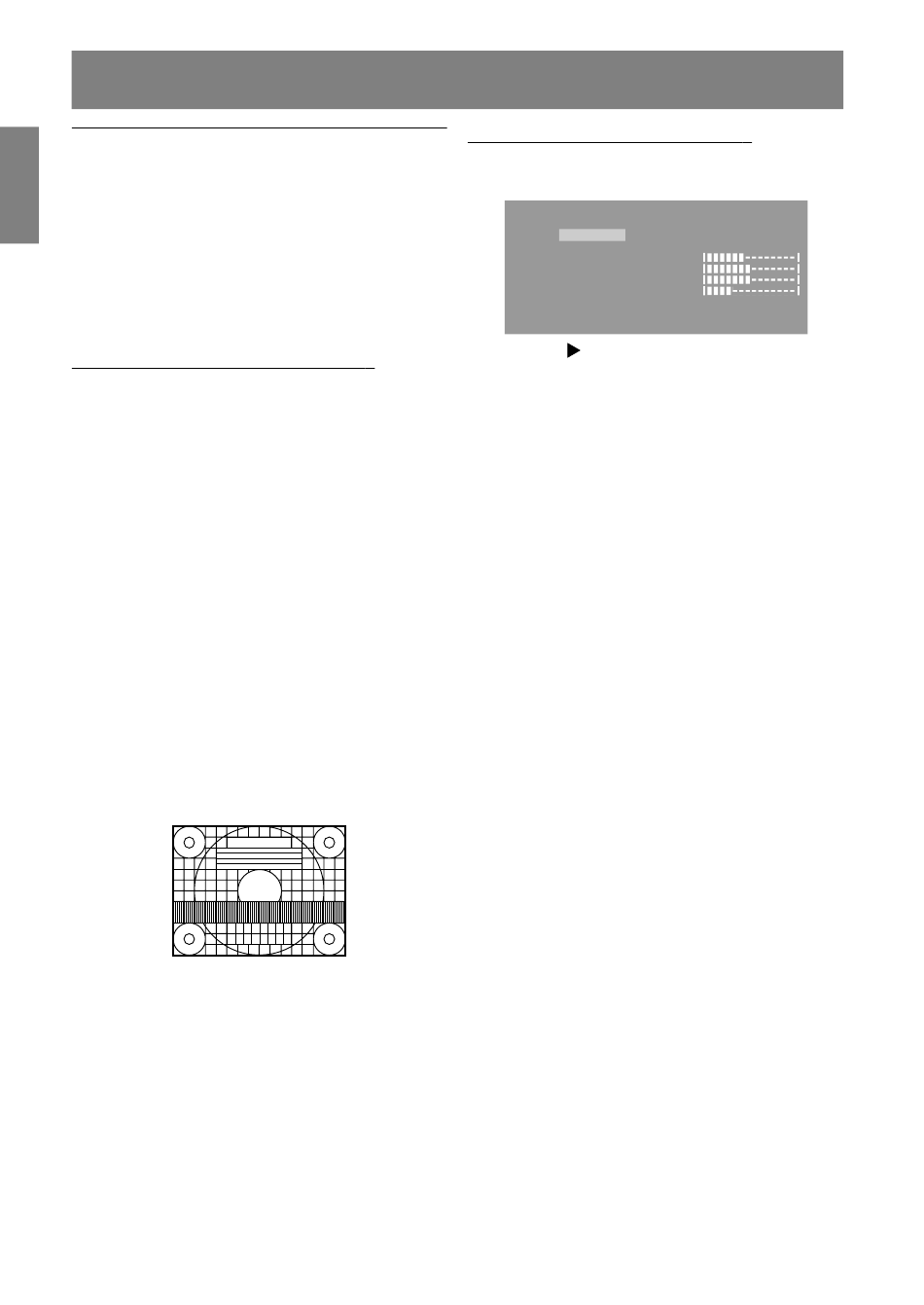

Adjustment pattern
After completing the adjustment, press the
computer's [Esc] key to exit the Adjustment
Program.
Note:
- If your computer's display mode is set to 65K
colors, you may see the different color levels in
each color pattern or the gray scale may look
colored. (This is due to the input signal
specification and is not a malfunction.)
(When using an analog signal)
Adjusting the screen automatically
1. Press the MENU button.
The ADJUSTMENT Menu will be displayed.
A D J U S T ME N T
MANU A L
C L OC K
P H A S E
H- P O S
V - P O S
I N P U T - 1
1 2 8 0 x 1 0 2 4
2. Press the button.
The screen will become dark and [ADJUSTING]
will be displayed. After a few seconds the
ADJUSTMENT Menu will return. (The automatic
adjustment is now complete.)
3. Press the MENU button 4 times to make the On
Screen Display (OSD) Menu disappear.
Notes:
- In most cases automatic adjustment is sufficient.
- It may not be possible to achieve correct
adjustment with the first automatic adjustment. In
such a case, try repeating automatic adjustment
2 or 3 times.
- If necessary due to any of the following, manual
adjustments (p. 17) can be performed after the
automatic adjustment.
- When further fine adjustment is needed.
- When the computer's video input signals are
Composite Sync or Sync On Green. (Automatic
adjustments may not be possible.)
- When [OUT OF ADJUST] is displayed. (When
the screen displays an entirely dark image, the
automatic screen adjustment may be disabled.
When making an automatic adjustment, be
sure to either use the Adjustment Pattern or try
displaying an image that makes the entire
screen very bright.)
- Automatic adjustment may not be achieved
correctly depending on what is displayed on the
screen - moving pictures or the MS-DOS prompt
etc.
16
A U T O
1 2 7
1 6
2 0 0
2 9
A N A L O G
V : 6 0 H z H : 6 4 . 0 k H z
