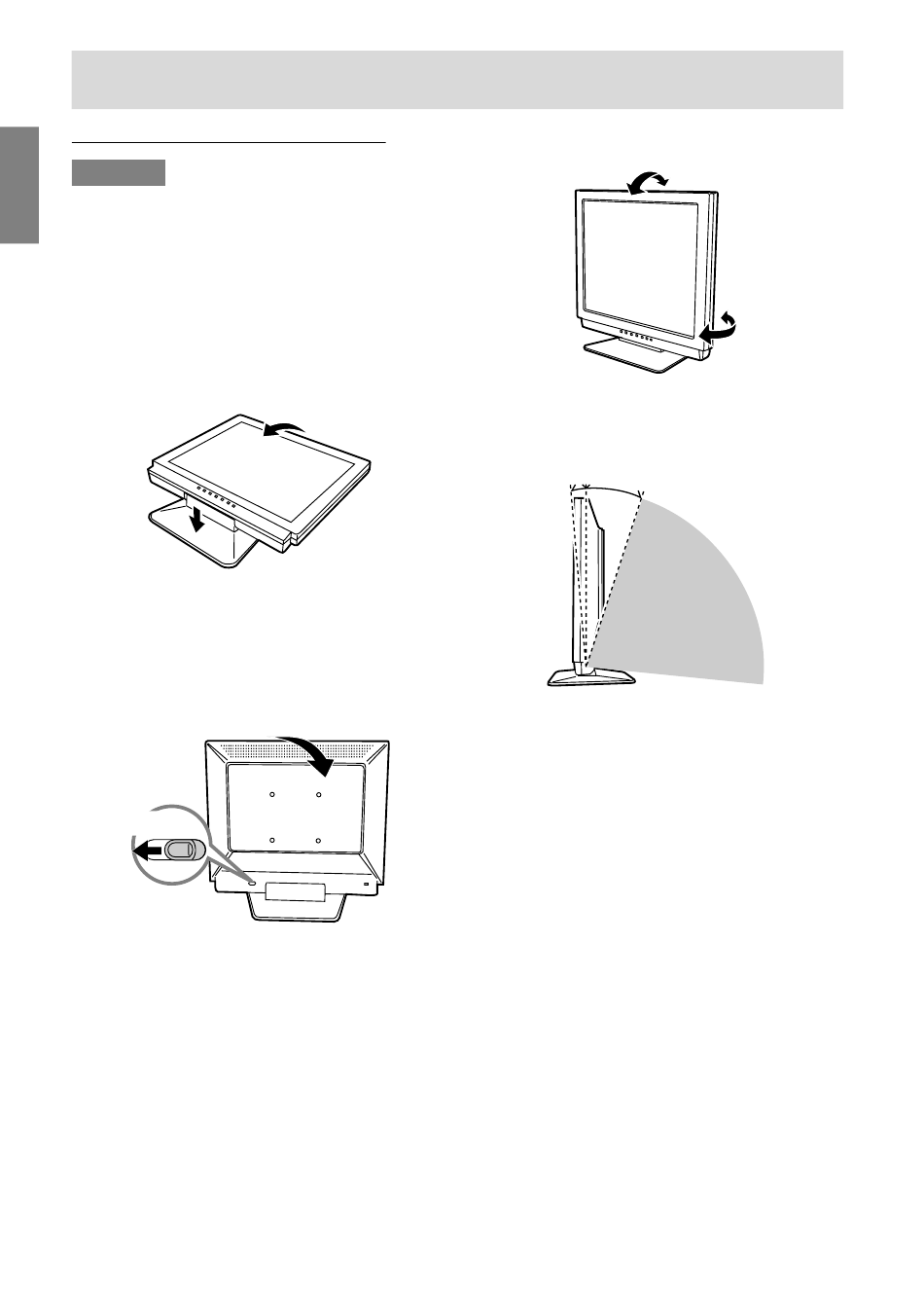

Standing up and adjusting the monitor
CAUTION!
- Pressure from hands on the LCD panel could
cause damage.
- Be careful not to allow your fingers to be
pinched.
- Be careful not to place any objects on the cables.
Doing so may result in disconnection or other
problems.
Standing up the monitor
Press down on the stand and lift up the top section
of the monitor.
Folding up the monitor
1.Remove the AC adapter and the cables.
2. If carrying out adjustments to the monitor, place
it upright.
3. While pressing the rear lock disable button (1),
gently fold back the monitor (2).
(1)
Product description
(2)
Angle adjustment
Adjust to an easy to view angle.
approx.5°
- Do not use the monitor when tilted back beyond
approximately 20º. The monitor may fall over
leading to injury or malfunction.
approx.5°
approx.20°
Prohibited range
10
approx.20°
approx.45°
approx.45°
