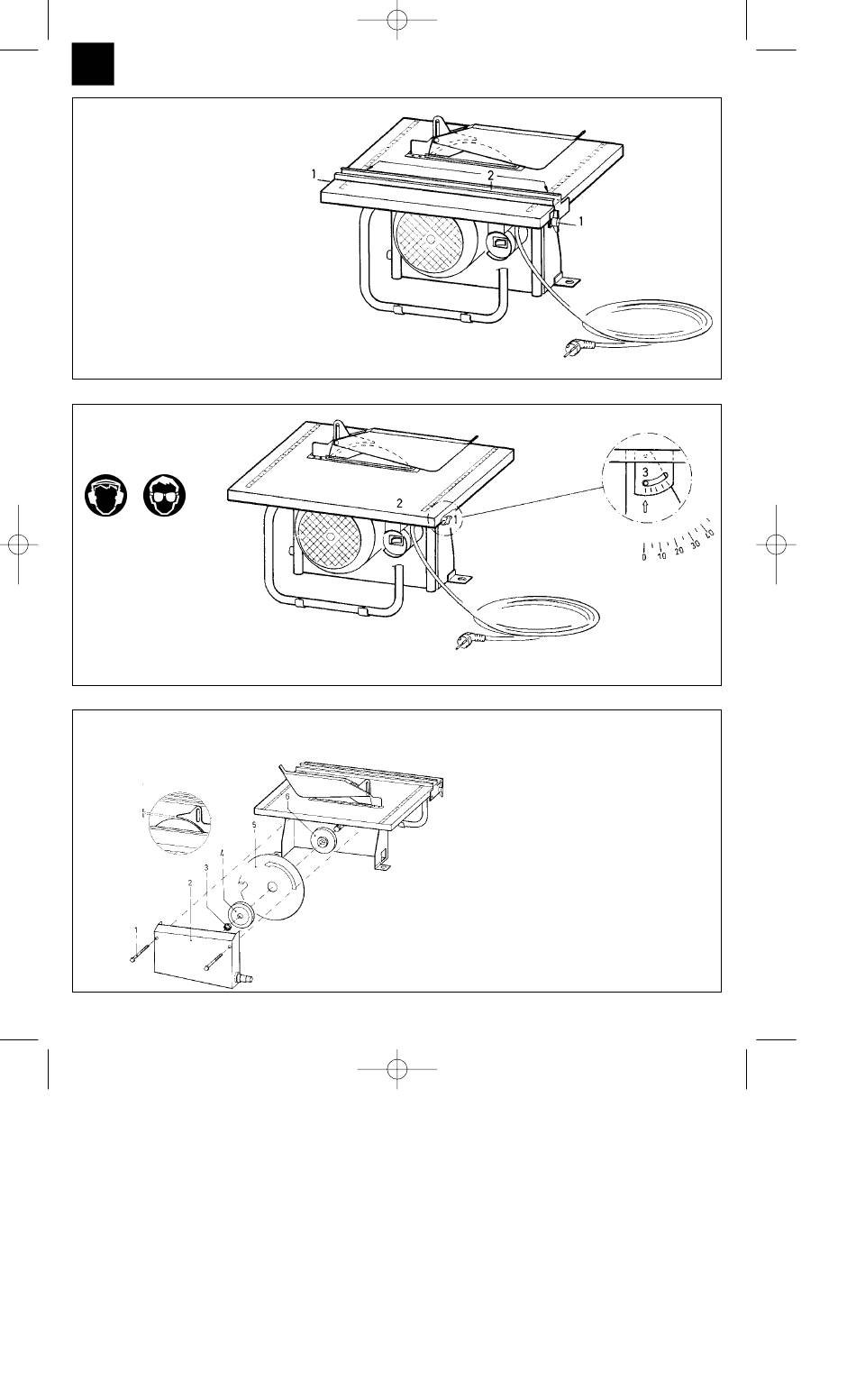

Before you press the On/Off
switch, check that the saw
blade is properly fitted, that the
moving parts run smoothly and
that the clamping screws are
tight.
Parallel cuts
1 Release the two lock screws
2 Adjust the stop rail using the two scales
Important!
Wear ear muffs and goggles.
Angle cuts
1 Release the lock screw
2 Slew the saw table
3 Adjust the angle to max. 45° using
the scale
Adjusting the splitter
1. Undo the screws
2. Adjust the splitter and retighten
max. 5 mm
10
Seite 10
Important!
Pull out the plug before making
any changes to the circular saw!
Changing the saw blade
1 Undo the screws
2 Remove the chip bin
3 Undo the nut
4 Remove the outer flange
5 Drop the saw blade at an angle and remove
from underneath
6 Remove the mounting flange
To install the new blade, proceed in reverse
order. Important! Note the direction of rotation
(see arrow on the blade)
