Basic connection

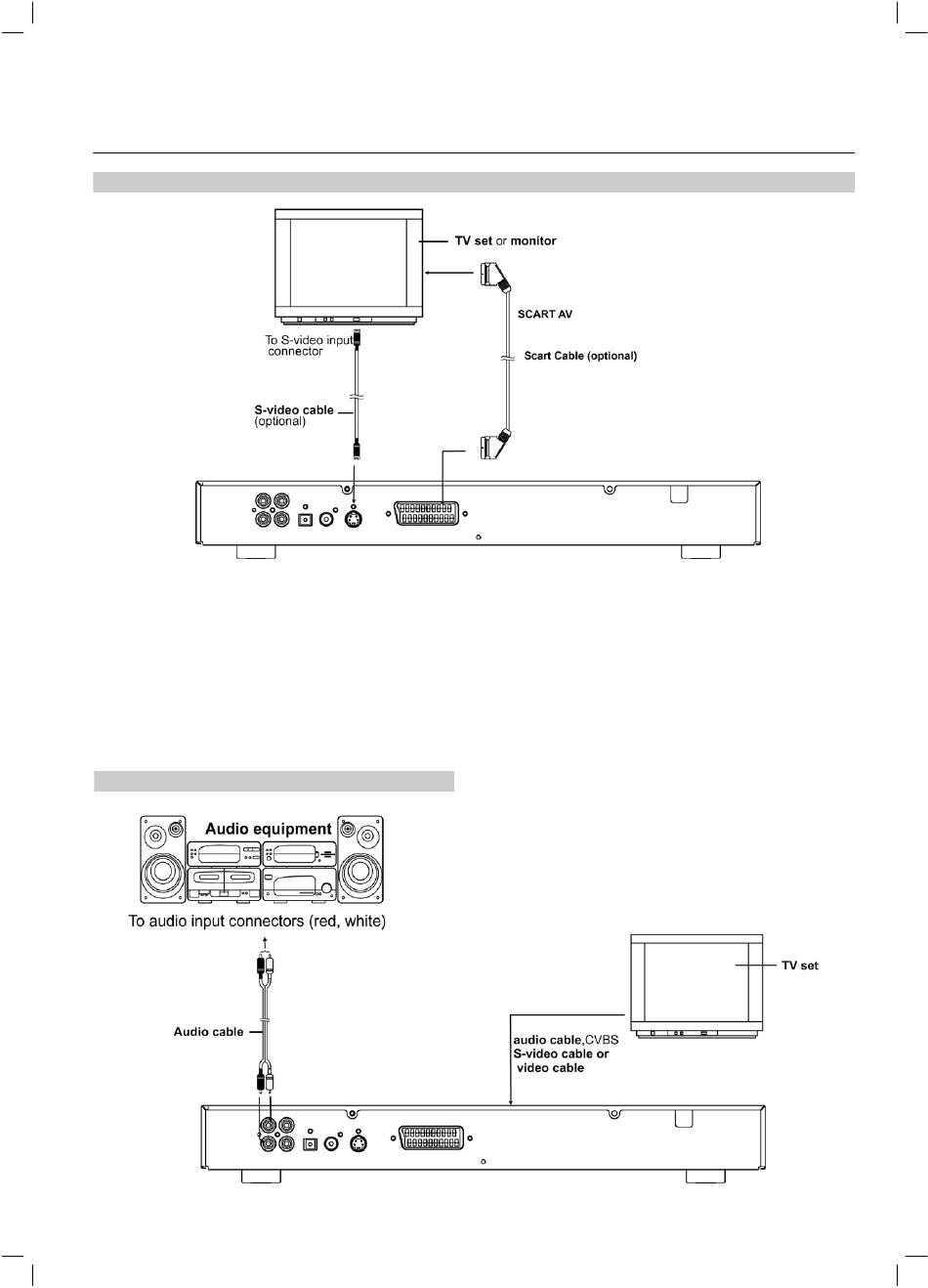

Connecting to a TV set or monitor with Scart video output connectors
S-video output connectors
The S (separate) video output connector separates the
color (C) and luminance (Y) signals before transmitting
them to the TV set in order to achieve a sharper
picture.
Use the S-video cable when connecting the player to
a TV set equipped with an S-Video input connector for
the best picture clarity possible.
Connecting to audio equipment
5....-05-DVD 613 GB 37
The SCART connector outputs the color signals
(red , green, blue) in order to achieve high fi delity in
reproducing colors. The description of the component
video input connectors may differ depending on the TV
set or monitor. Refer to the instruction manual of your
TV set for details.
