Team Electronic HAM MobileCom 1011 Bedienungsanleitung Seite 13

Beside the fixed mounting of antennas, which requires drilling of the body, antennas can also be set up via a magnetic mount.
> To avoid interferences with radio and TV reception, place the antenna as far away as possible from these sources of
interferences.
> All connected cables should not exceed the maximum length of 3 meters.

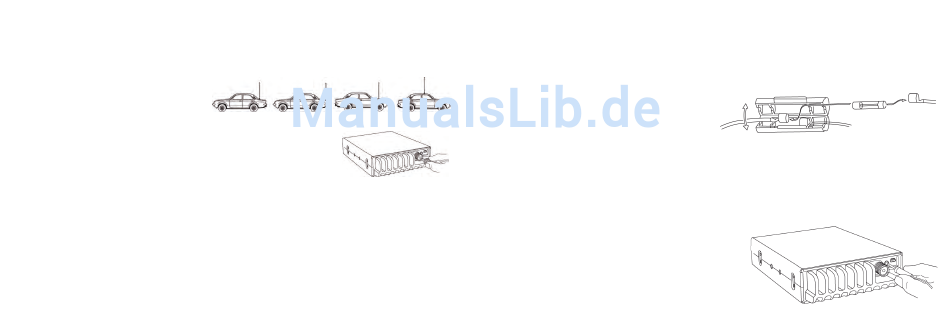

For a good grounding of the antenna, we recommend one of these placements:
antenna connection
Connect the antenna connector of the cable with the PL-jack (20), located on the rear of the
radio. Ensure a proper connection of the cable to the antenna base. Improper connections
can cause damages to the radio and a reduction of the operational range may be the result.
The antenna setup has to be adjusted to the radio. Otherwise, a part of the transmission
power is reflected at the antenna and is not radiated. A reduced range of operation could be
the consequence.
power supply connection
The voltage has to be 13.8 V DC with negative grounding. Ensure that the positive and (+, red) and negative (-, black) pola-
rity is correct, bevor you connect the radio. The connection of the radio to the power supply, has to be set up by an authori-
zed technician.
Connnect the power cable directly onto the batterie. Do not use a cigarette lighter adapter because this kind of connecti-
vity might not provide enough currenct for a proper operation of the radio. Payspecial attention to the correct polarity,
when connecting the cable onto the batterie.
CAUTION
> Please ensure proper polarity
> Please check the fuse before first use of the radio. Missed or defect fuses need to be re
placed before operation of the radio.
24
fuse replacement
This radio requires a 15A/250V fuse. If the fuse blows, determine the cause, then correct the problem. After the problem
is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your aut-
horized dealer or an authorized servicecenter.
1. Pull the two fuse cover in difference direction and open it.
2. Replace the broke fuse with good one, and close the fuse holder.
3. Be sure to use suggested fuse, or it might damage the radio.
INSTALL EXTERNAL SPEAKER
If you want to use an external speaker, please choose an 8 ohm speaker with 3.5 mm mono band plug.
Position the external speaker in a safe location, where it cannot obstruct the driver or a passenger and plug the connector
into the speaker jack (19), located on the rear of the radio.
