Keep the front clear at all times for access.
1 Drill holes in the wall taking the dimensions of the receiver
into account and insert the supplied plugs in the holes.
Refer to figure 5.
2 Fasten the receiver with the supplied screws.

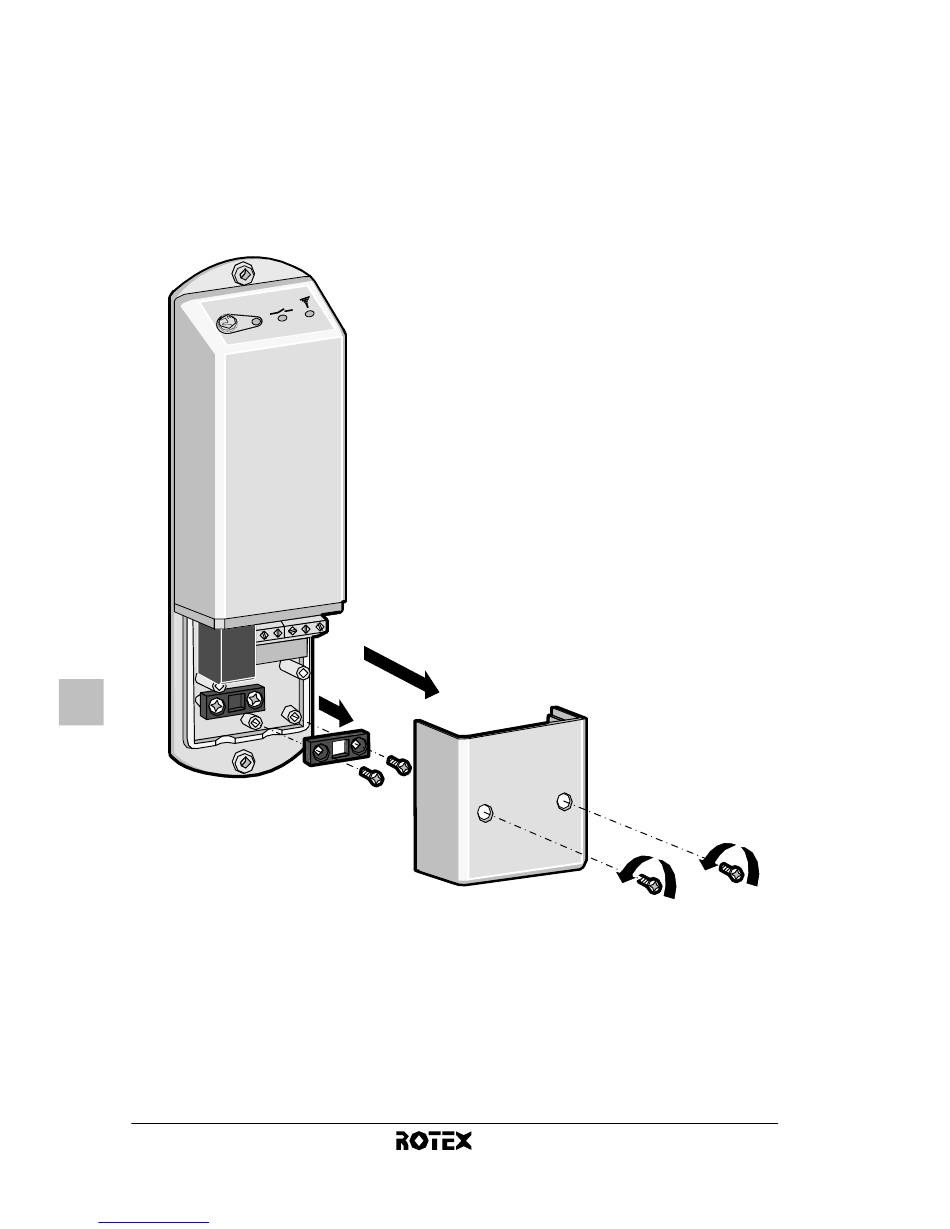

3 Unscrew both screws and remove the front cover.
4 Unscrew both screws of the lower right cable bracket and
remove the bracket.
Installation manual
9
Downloaded from www.Manualslib.com
4
4
manuals search engine
3
3
RKRTR + EKRTETS
Room thermostat
4PW56107-1
