Rotex RKRTR Installationsanleitung Seite 38

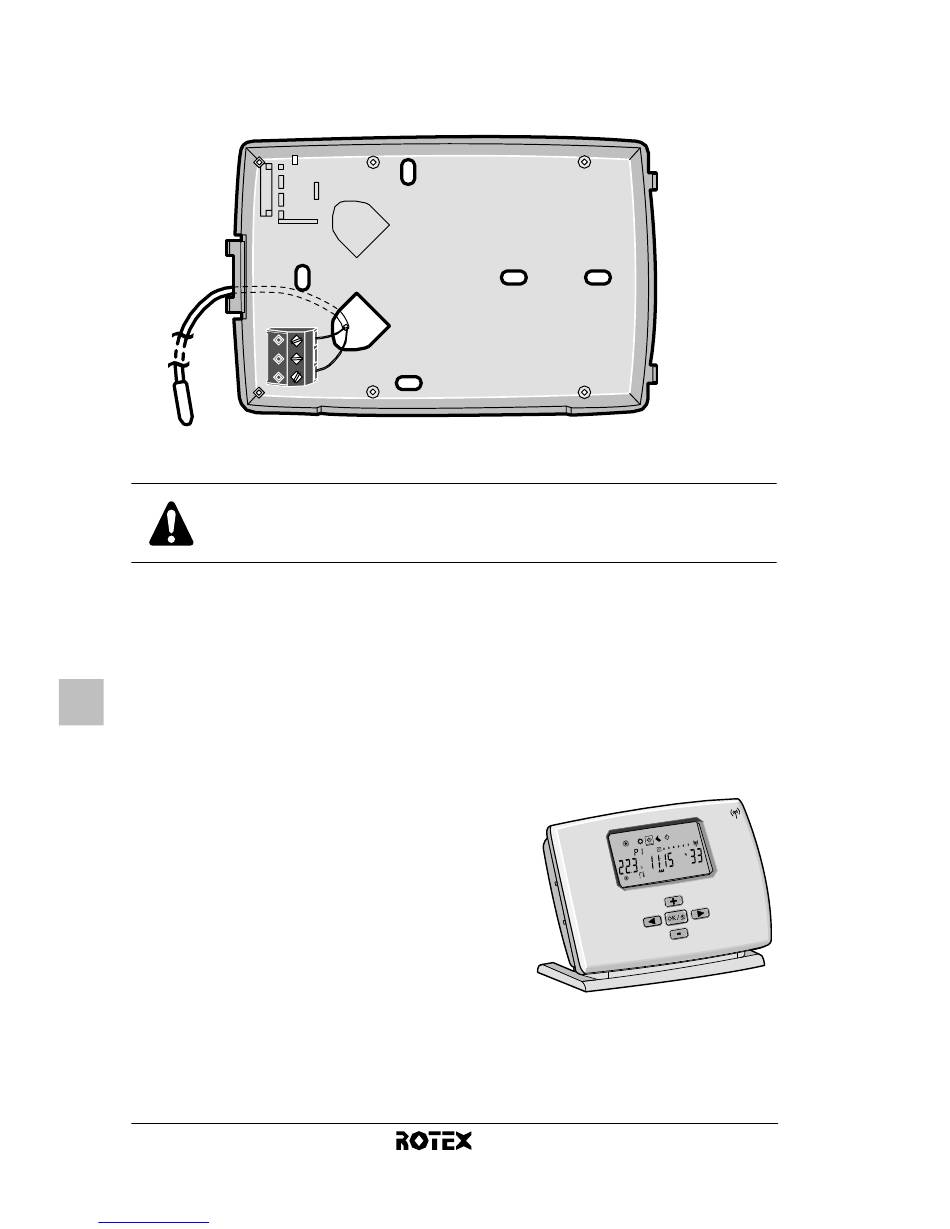

6 Optionally, pass the temperature sensor wiring (EKRTETS)
through the back of the thermostat and wire it as shown
below.
7 Fasten the thermostat with the supplied screws.
8 Optionally for the EKRTETS, put the transparent cable
protection back into place and fix the cable protection with
the screw.
9 Close the thermostat cover.
10 Remove the protective film from the LCD.
3.2.
Only if the optional temperature sensor
EKRTETS is not installed as external
temperature sensor, the RKRTR can be
used as a table-top model.
In that case, no particular installation
for the thermostat is needed. The
thermostat functions as a complete
wireless unit and can be put anywhere
in the house into its table holder.
Remove the battery insulator and the protective film from the
LCD, as described in "Wall-mounted installation" on page 6.
Installation manual
7
Downloaded from www.Manualslib.com
Be careful not to pinch the wiring when fastening.
Table-top installation of the thermostat
manuals search engine
RKRTR + EKRTETS
Room thermostat
4PW56107-1
