help to break the seal and to loosen the threads. Take out the old oil and fill the cavity of the cap with a
light oil non-foaming SAE40 or equivalent. Mount according to the recommendations of the following point.
If inspection reveals that the oil is thick, heavy, sticky mixture, then the grease of the flexible shaft has
penetrated into the head, and the seals have to be replaced. Follow the steps of the point 7 to replace it.
7.-To do a maintenance follow the following steps:
8.-After maintenance job and service, all the parts must be assembled correctly.
9.-Every 12 months or more frequently, depending on the usage conditions. It is recommended an
inspection be done by an authorized dealer.

9.1 STORAGE

9.2 TRANSPORTATION

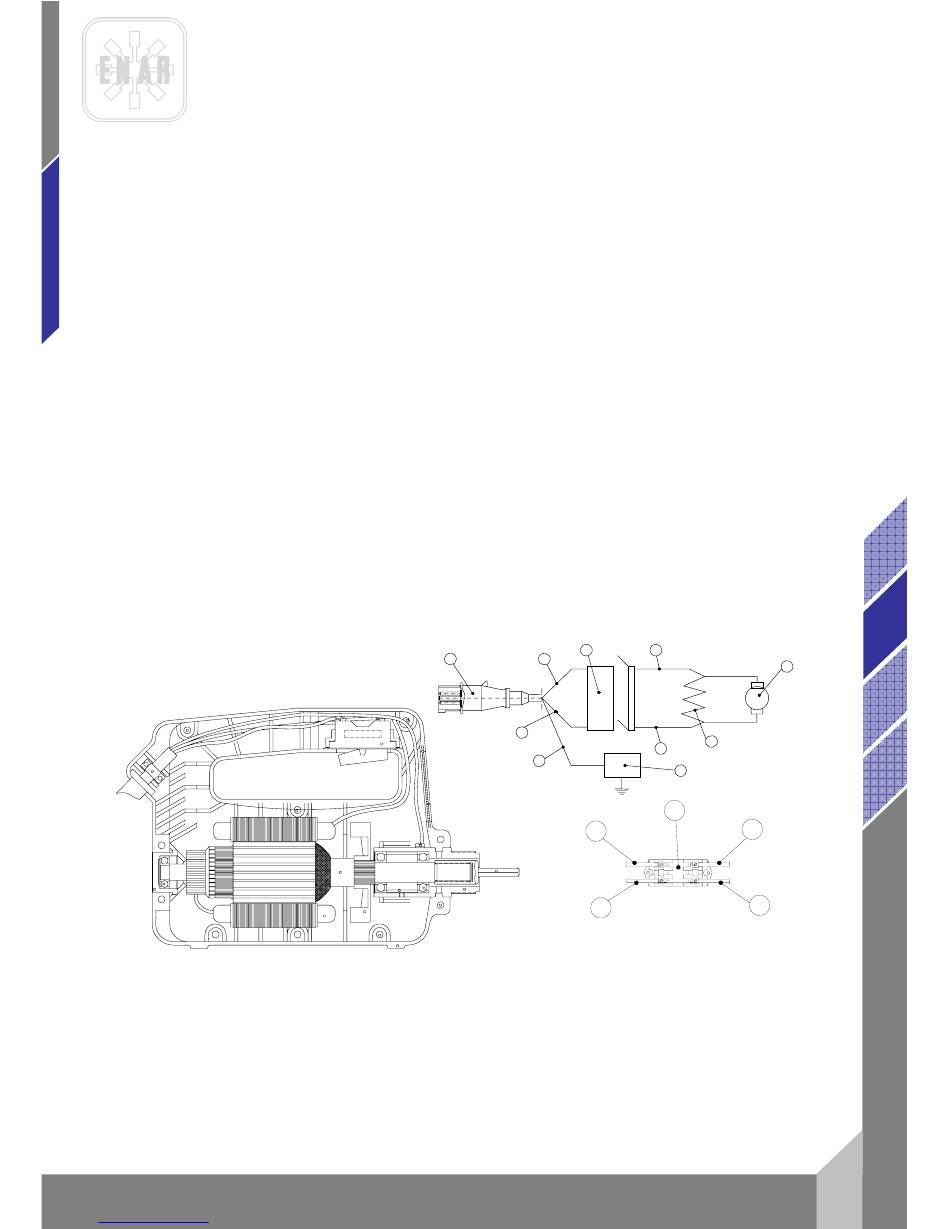

10 ELECTRICAL DIAGRAM

NOTE:
All cables should be properly adapted to the housing provided in the plastic clad before closing the two
sells.
1.PLUG
2.SWITCH CABLE. 1.5 MM 2 SECTION
3.SWITCH CABLE. 1.5 MM 2 SECTION
4.EARTH CABLE (green-yellow/ green -UL-)
5.EARTH POINT
AVMU MOTOR - FLEXIBLE SHAFT AND POKERS
Downloaded from www.Manualslib.com
- Flush the parts with solvent and wipe all part.
- Examine bearings, seals and hex driver. If inspection reveals that grease of transmission has
penetrated into the head, the oil seals need replacement. When replacing seals, mount them
back to back (neoprene seal lips face away from each other).
- The purpose of the seals is to keep the oil of the head in, and the flexible shaft grease out. Be
careful not to damage the polished surface where the seals goes. When the seals are
dismounted it is recommended to change it.
- Fill the cavity of the cap with a light oil non-foaming SAE40 or equivalent.
- Apply sealant before assembling and fix the O ring. Tighten and clean the excess sealant. It is
important all the parts are tightened to avoid water and cement try to get into the head.
WHEN THE AVMU MOTOR HAS NOT BEEN USED FOR LONG PERIODS OF TIME, IT SHOULD
ALWAYS BE STORED IN CLEAN, DRY, AND PROTECTED AREAS.
When transporting by vehicles, ensure the AVMU motor is safe against slipping, overturning and
blows.
TAX1m, TAX1-5m, TAX2m, TAX3m, TAX4m, TAX5m
manuals search engine
6
1
3
2
4
3
2
6.SWITCH
7.MOTOR-SWITCH CABLE 1.5 MM 2 SECTION
8.SWITCH-MOTOR CABLE 1.5 MM 2 SECTION
9.ESTATOR MOTOR
10. CONNECTION TO BRUSHES
AVMU - AX25, AX38, AX48, AX58
7
10
9
8
5
6
7
8
