Technical Characteristics - entrematic Ditec Energy 0DT828 Handbuch Die Montage, Wartung, Bedienung

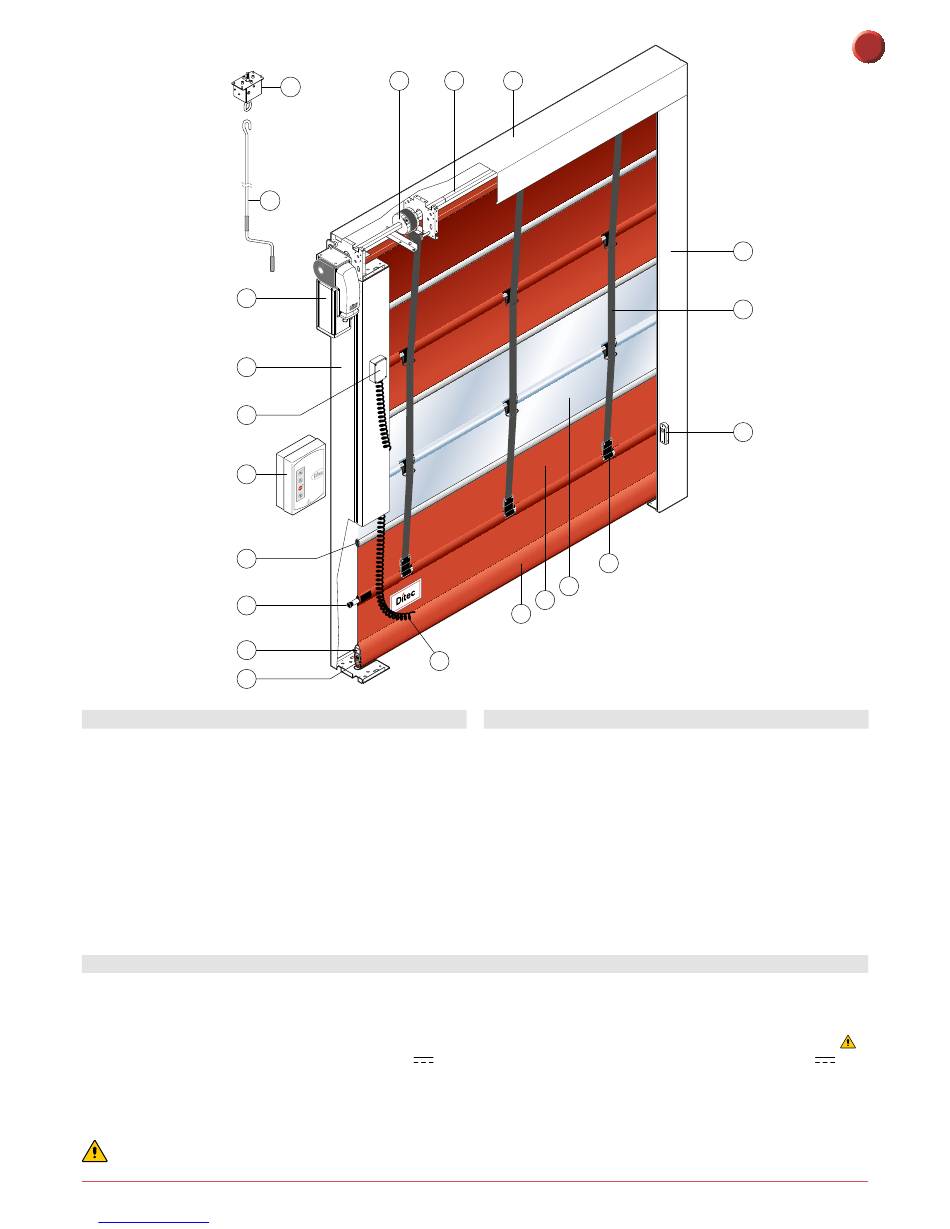

Ref. Description
1 Box
2
Gear motor K22 / K26
3 Winding shaft
4 Counterweight belt drum
5
Safety edge aluminium profile
6 Safety edge rubber profile
7 Safety edge connection box
8
Safety edge connection cable
9 Manual operation device
10 Manual operation rod
11
Right-hand column

2. TECHNICAL CHARACTERISTICS

CONTROL PANEL TRIPHASE (49E)
Power supply voltage .........................400 V, 50/60 Hz
Power input ............................................................. 6 A
Auxiliary control power voltage ........................24V
Motor rating ................................................... 0,75 KW
Control board protection class ............................ IP 55
Operating temperature .............................. - 5 + 50 °C
Correctly size the line conductor cross-section by referring to the indicated absorption and taking the length and
installation of the cables into account.
Downloaded from www.Manualslib.com
9
10
2
12
7
15
13
14
5
6
manuals search engine
4 3 1
19
20
21
8
Ref. Description
12 Left-hand column
13
Curtain aluminium profiles
14 Curtain reinforcing tube
15 Control panel
16
Photocell LAB4
17 Curtain lifting belt
18 Curtain belt attachment
19 Transparent section
20 Polyester section
21 Safety edge protective pocket
CONTROL PANEL INVERTER (47E)
Power supply voltage ........ 230 V monofase 50/60 Hz
Power input ........................................................... 16 A
Auxiliary control power voltage ........................24V
Motor rating ................................................... 0,75 KW
Control board protection class ............................ IP 55
Operating temperature .............................. - 5 + 50 °C
- 29 -
11
17
16
18
0DT828 2014-06-13
