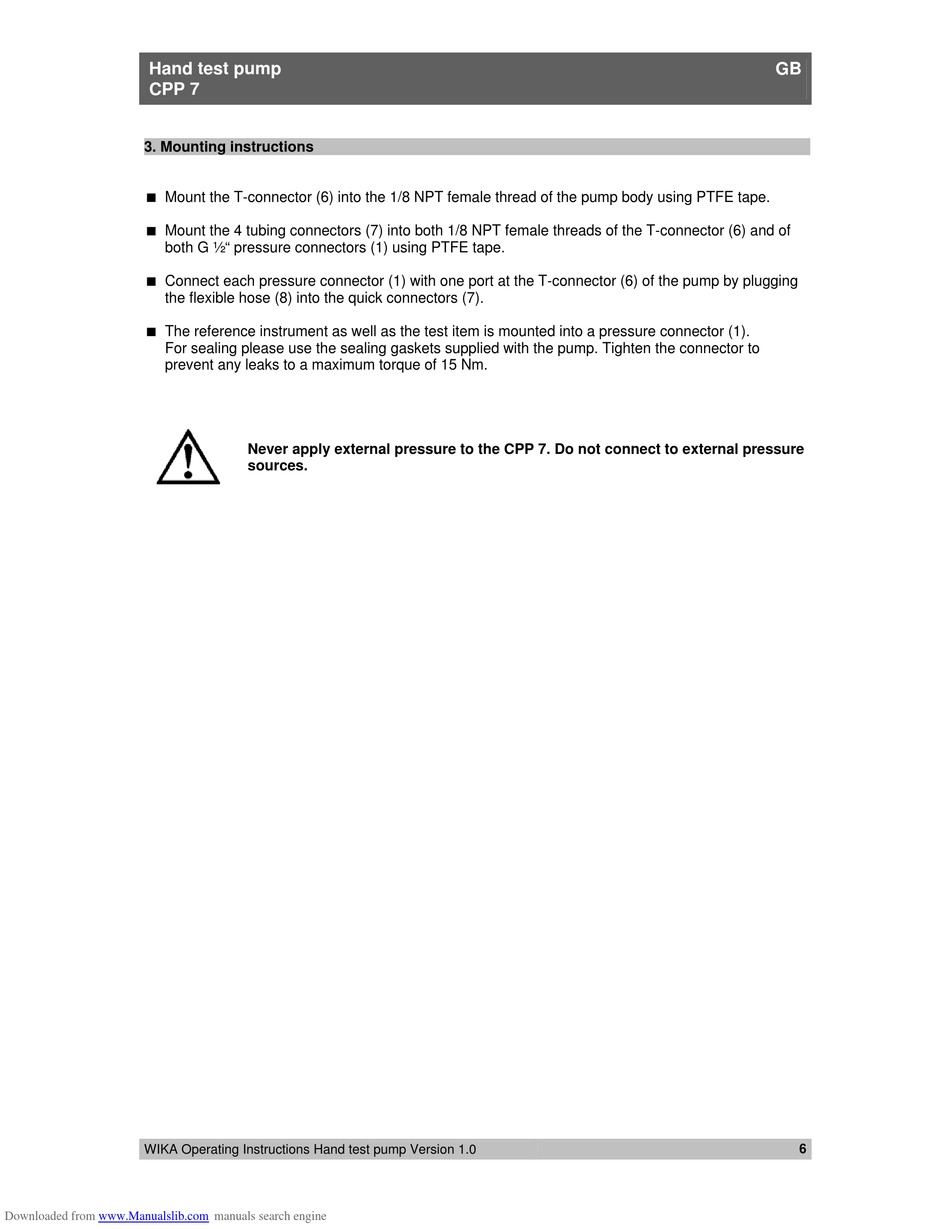

3. Mounting instructions

 Mount the T-connector (6) into the 1/8 NPT female thread of the pump body using PTFE tape.
 Mount the 4 tubing connectors (7) into both 1/8 NPT female threads of the T-connector (6) and of
both G ½" pressure connectors (1) using PTFE tape.
 Connect each pressure connector (1) with one port at the T-connector (6) of the pump by plugging
the flexible hose (8) into the quick connectors (7).
 The reference instrument as well as the test item is mounted into a pressure connector (1).
For sealing please use the sealing gaskets supplied with the pump. Tighten the connector to
prevent any leaks to a maximum torque of 15 Nm.
WIKA Operating Instructions Hand test pump Version 1.0
Downloaded from www.Manualslib.com
Never apply external pressure to the CPP 7. Do not connect to external pressure
sources.
