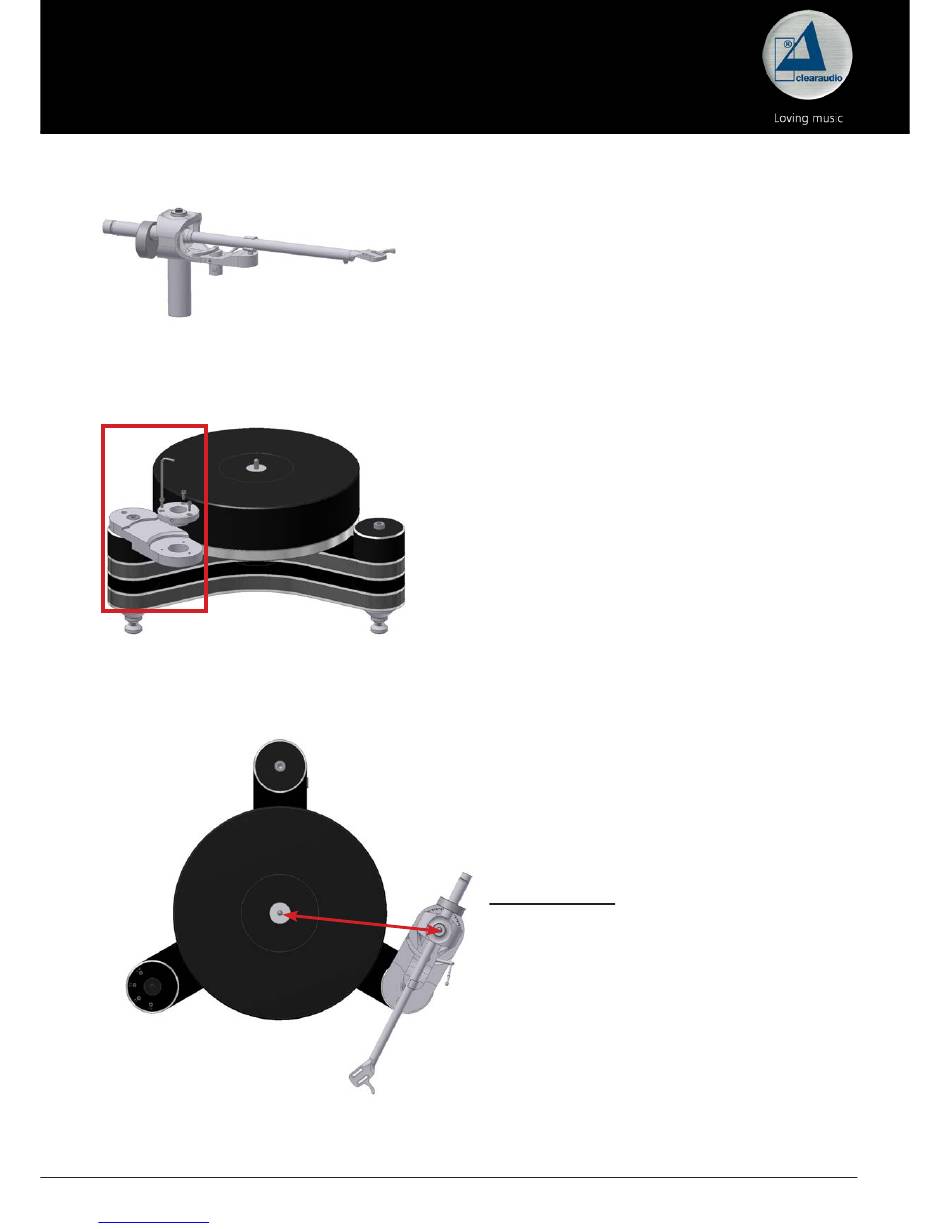

Pic. 6: Magnify
1).
Tighten the mounting plate for the
Pic. 7: Placing the tonearmbase
Pic. 8: Distance from spindle to the pivot (222 mm)
Made in Germany
Downloaded from www.Manualslib.com
tonearm without VTA – Lifter:
tonearm without VTA-Lifter
Magnify
222 mm
manuals search engine
tonearm with the screws onto the mounted tonearm
base. Please take the delivered screws.
Feed the tonearm cable through the mounting plate
and slide the tonearm feet through the drilling of the
mounting plate.
2).
To adjust the pivot of the tonearm Clearaudio
recommends the Clearaudio IEC alignment
gauge (Art. No.: AC005 / IEC; also available at
www.analogshop.de).
Make sure that the distance from the spindle
to the pivot point (center) of the tonearm is
exact 222mm. When moving the armboard in
one or another direction you can set the correct
distance. After distance is adjusted, tighten the
screw of the armboard.
