2).
To adjust the distance of the tonearm Clearaudio recommends the Clearaudio IEC alignment
gauge (Art. No.: AC005 / IEC; also available at www.analogshop.de).
Make sure that the distance from the spindle to the pivot point (center) of the tonearm is exact
222mm. When moving the armboard in one or another direction you can set the correct distance.
After distance is adjusted, tighten the screw of the armboard.

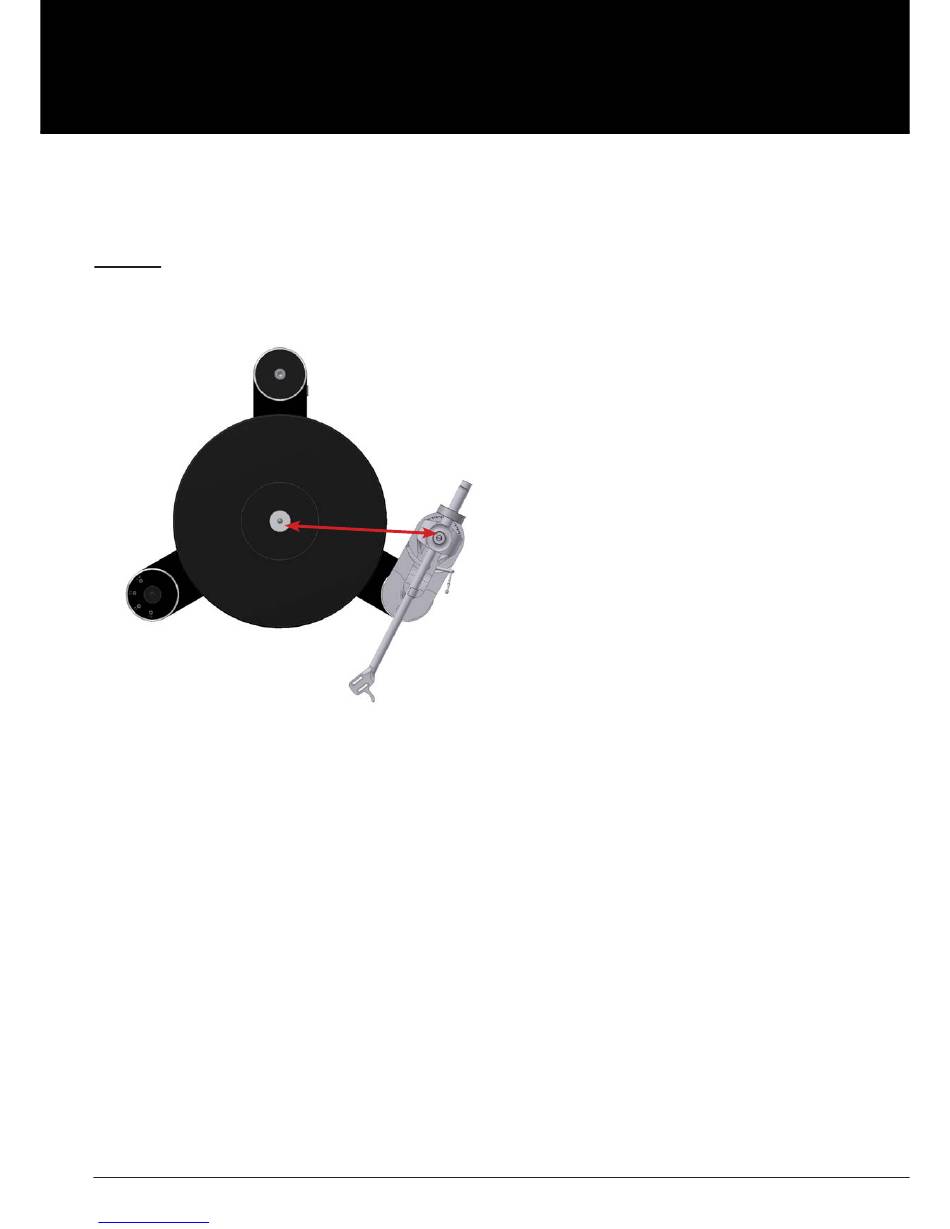

Pic. 5: Distance from spindle to the pivot (222 mm)
Adjustment of the tonearm height with VTA – Lifter:
Please follow hereby the user manual of the VTA – Lifter.
The height of the tonearm ist adjusted correct, if the upper side of the mounted cartridge is parallel
to the surface of the record (when the cartridge is lifted down).
