User manual / Bedienungsanleitung

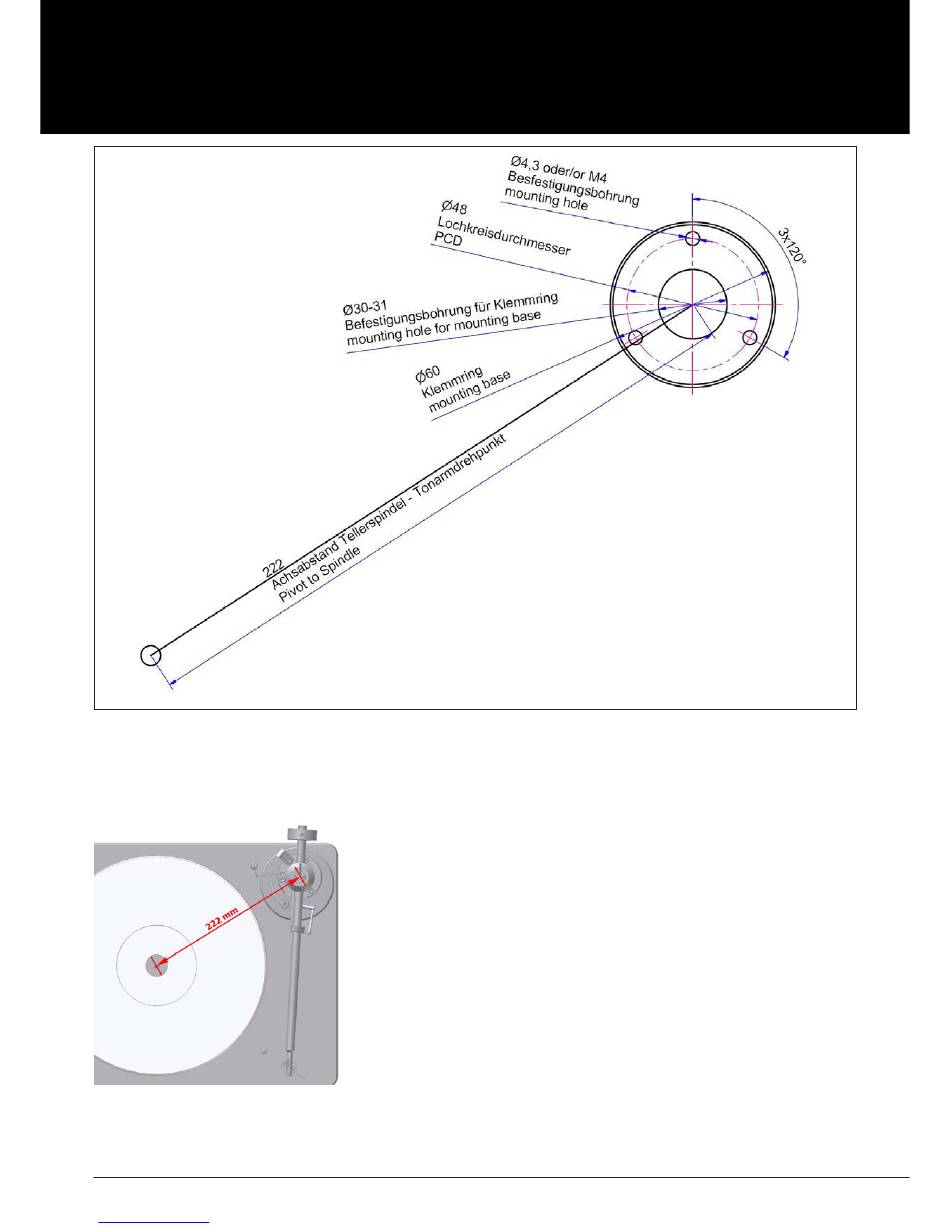

Pic. 2: Mounting the aluminum clamping ring on a non-Clearaudio turntable
Pic. 3: Distance from spindle to the pivot (222 mm)
6
Downloaded from www.Manualslib.com
2. Make sure that the distance from the spindle to the pivot
point of the tonearm is exactly 222mm. When moving the
armboard in one or another direction you can locate the
correct armboard position.
Once located, tighten the screws of the armboard.
