GB
1.
Connections and Controls
1.1
1.2
1.2.1. DMX - Input
M12 A-coded male connector, 5-pole
1.2.2.
M12 A-coded female connector, 5-pole
1.2.3.
Male connector 2-pole Type: Wieland RST20i2 Ord.No.:96.022.2153.1
1.2.4.
Female connector 2-pole Type: Wieland RST20i2 Ord.No.:96.021.2153.1
085501936a.doc
Downloaded from
www.Manualslib.com

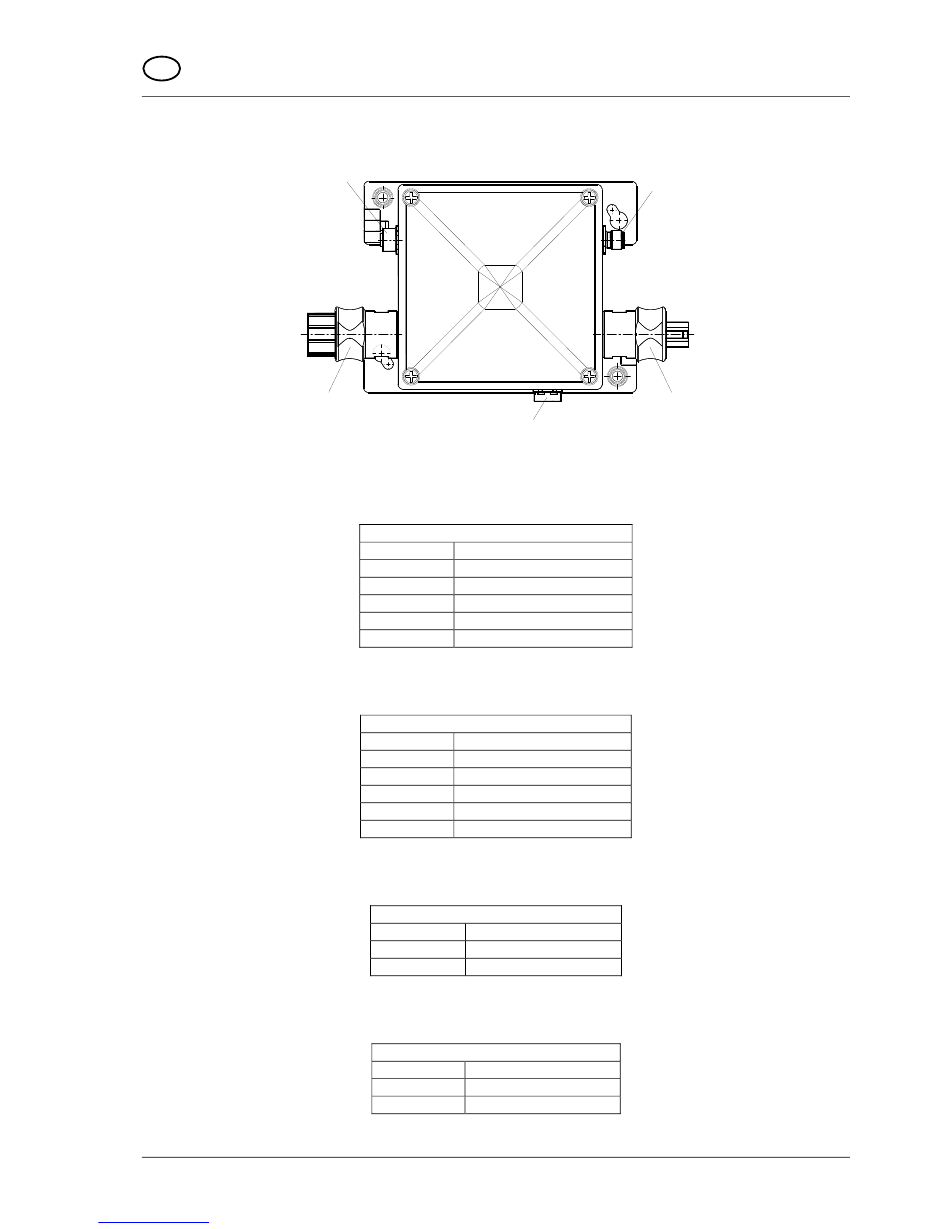

Overall view
DMX-Output
Output power supply
Controls
DMX - Output
Input power supply
Output power supply
manuals search engine
Manual Quadro-A-DMX
Pressure balance
element
Type: Binder 09-0433-387-05
DMX – Input
Pin
Function
1
Shield
2
Not connected
3
Not connected
4
Bus +
5
Bus -
Type: Binder 09-0434-387-05
DMX - Output
Pin
Function
1
Shield
2
Not connected
3
Not connected
4
Bus +
5
Bus -
Input power supply
Pin
Function
L
L
N
N
Output power supply
Pin
Function
L
L
N
N
7 / 28
DMX-Input
Input power supply
30084-040-1a
