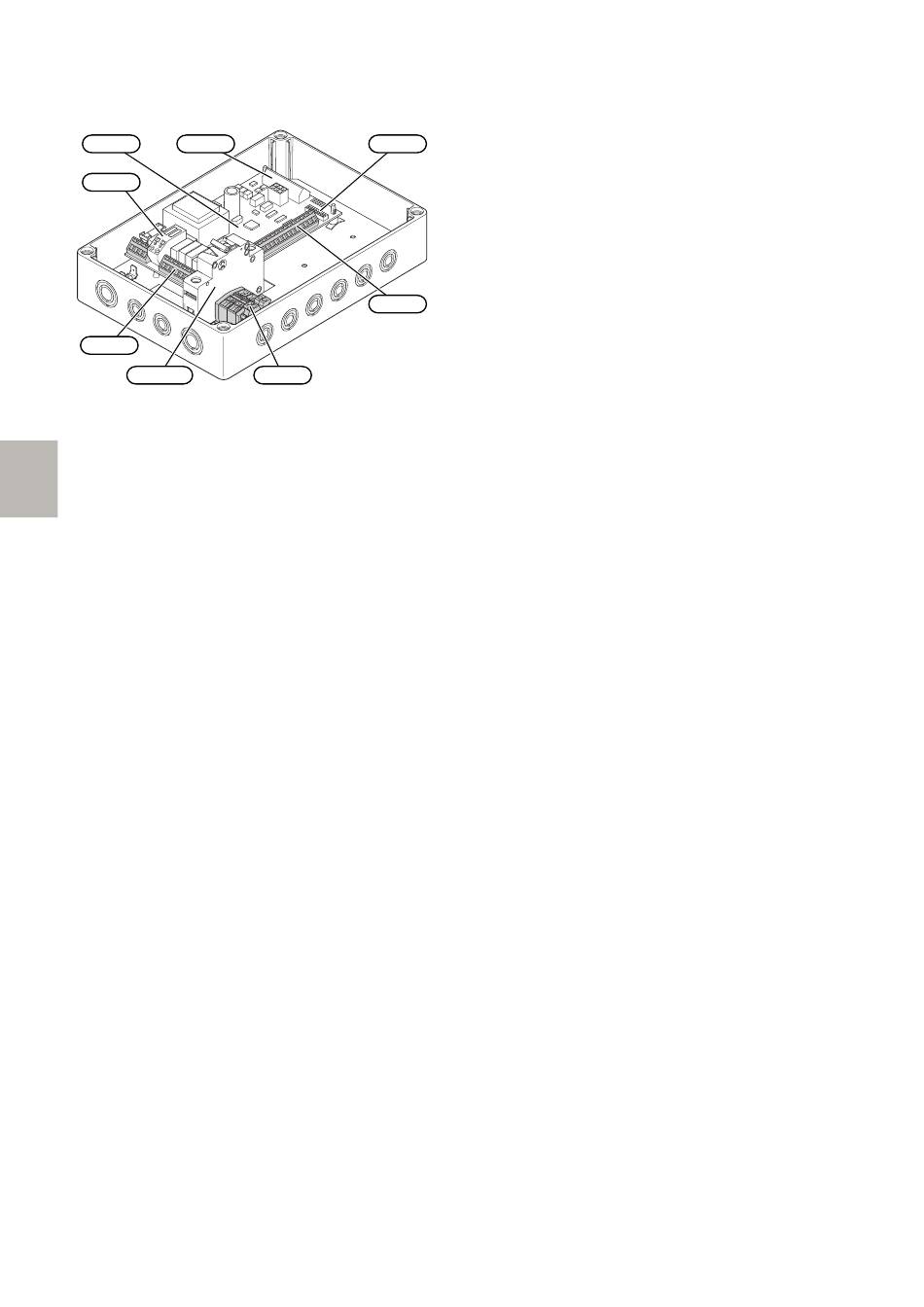

COMPONENT LOCATION, AXC MODULE
(AA25)
AA5 AA5-X4
AA5-X10
AA5-X9
AA25-FC1
ELECTRICAL COMPONENTS
AA5 Accessory card
AA5-S2
F
AA5-X2
AA5-X4
AA5-X9
AA5-
X10
AA25-FC1 Miniature circuit-breaker
AA25-X1 Terminal block, power supply
Designations according to standard EN 81346-2.
62
AA5-S2
AA5-X2
AA25-X1
DIP switch
Terminal block, inputs
Terminal block, communication
Terminal block, outputs
Terminal block, reversing valve
