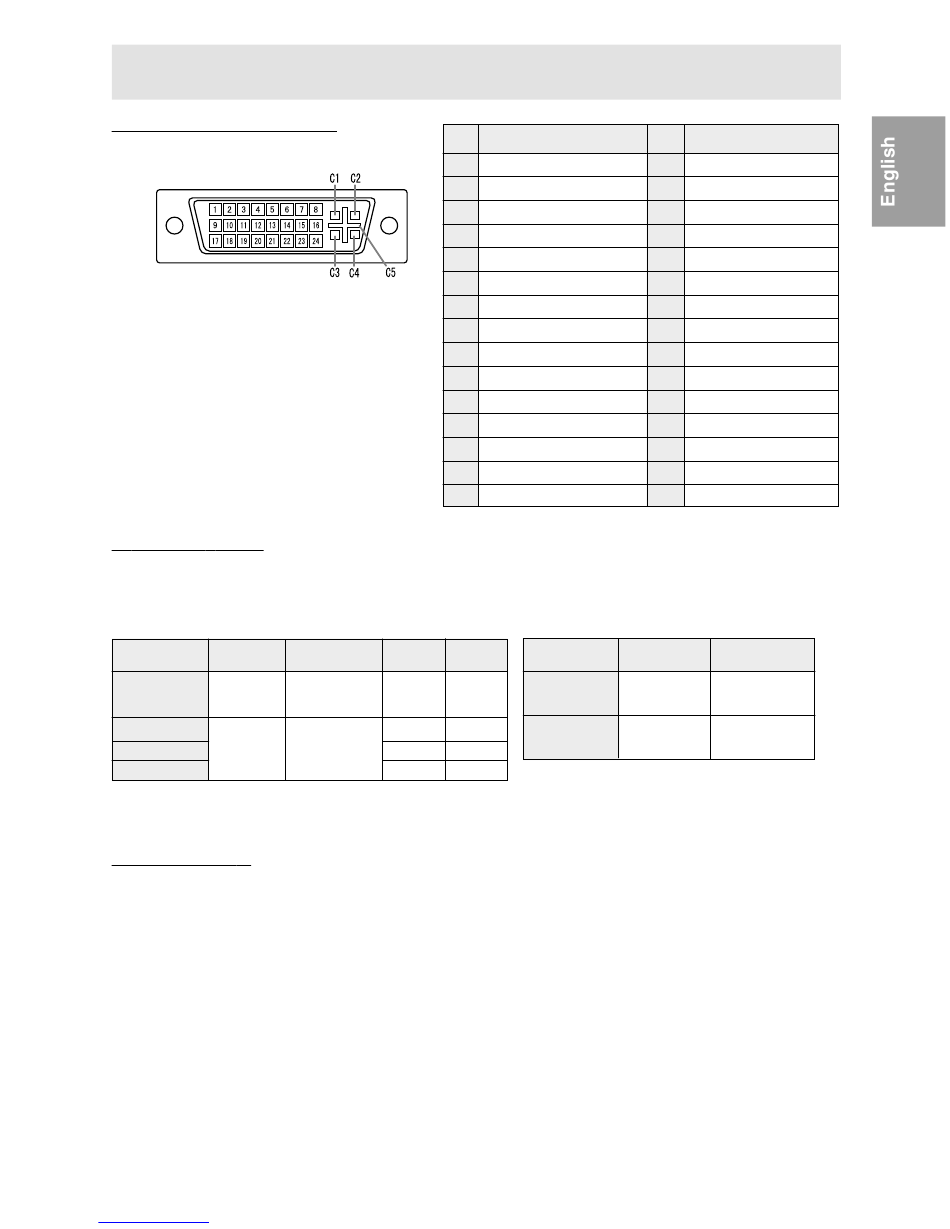

The DVI-I input connector pin
(DVI-I connector with 29 pins)
Power management
The monitor is based on the VESA DPMS*
To activate the monitor's Power Management function, both the video card and the computer must
conform to the VESA DPMS standard and the DVI DMPM standard.
1
* DPMS: Display Power Management Signalling
DPMS mode
ON
STANDBY
SUSPEND
OFF
DDC (Plug & Play)
This monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers informa-
tion such as degree of resolution between the monitor and PC. You can use this function if your PC is
DDC compliant and if it is set so that it can detect the Plug & Play monitor.
There are many varieties of DDC due to the differences between systems. This monitor works with DDC1
and DDC2B.
Downloaded from www.Manualslib.com
Power
Screen H-sync
consumption
LL-T1520: 36W
Display on
LL-T1620: 42W
LL-T1520: 3W
Display off
LL-T1620: 3W
manuals search engine
Specifications
No. Function
1 TMDS data 2-
2 TMDS data 2+
3 TMDS data 2/4 shield
4 N.C.
5 N.C.
6 DDC clock
7 DDC data
Analogue vertically synchronised
8
signal
9 TMDS data 1-
10 TMDS data 1+
11 TMDS data 1/3 shield
12 N.C.
13 N.C.
14 +5V
15 GND
1 and the DVI DMPM* 2 standards.
2
* DMPM: Digital Monitor Power Management
DMPM mode
V-sync
ON
Yes Yes
No Yes
OFF
Yes No
No No
27
No. Function
16 Hot plug detection
17 TMDS data 0-
18 TMDS data 0+
19 TMDS data 0/5 shield
20 N.C.
21 N.C.
22 TMDS clock shield
23 TMDS clock +
24 TMDS clock -
C1 Analogue red image signal
C2 Analogue green image signal
C3 Analogue blue image signal
Analogue horizontally
C4
synchronised signal
C5 Analogue GND
Power
Screen
consumption
LL-T1520: 36W
Display on
LL-T1620: 42W
LL-T1520: 3W
Display off
LL-T1620: 3W
