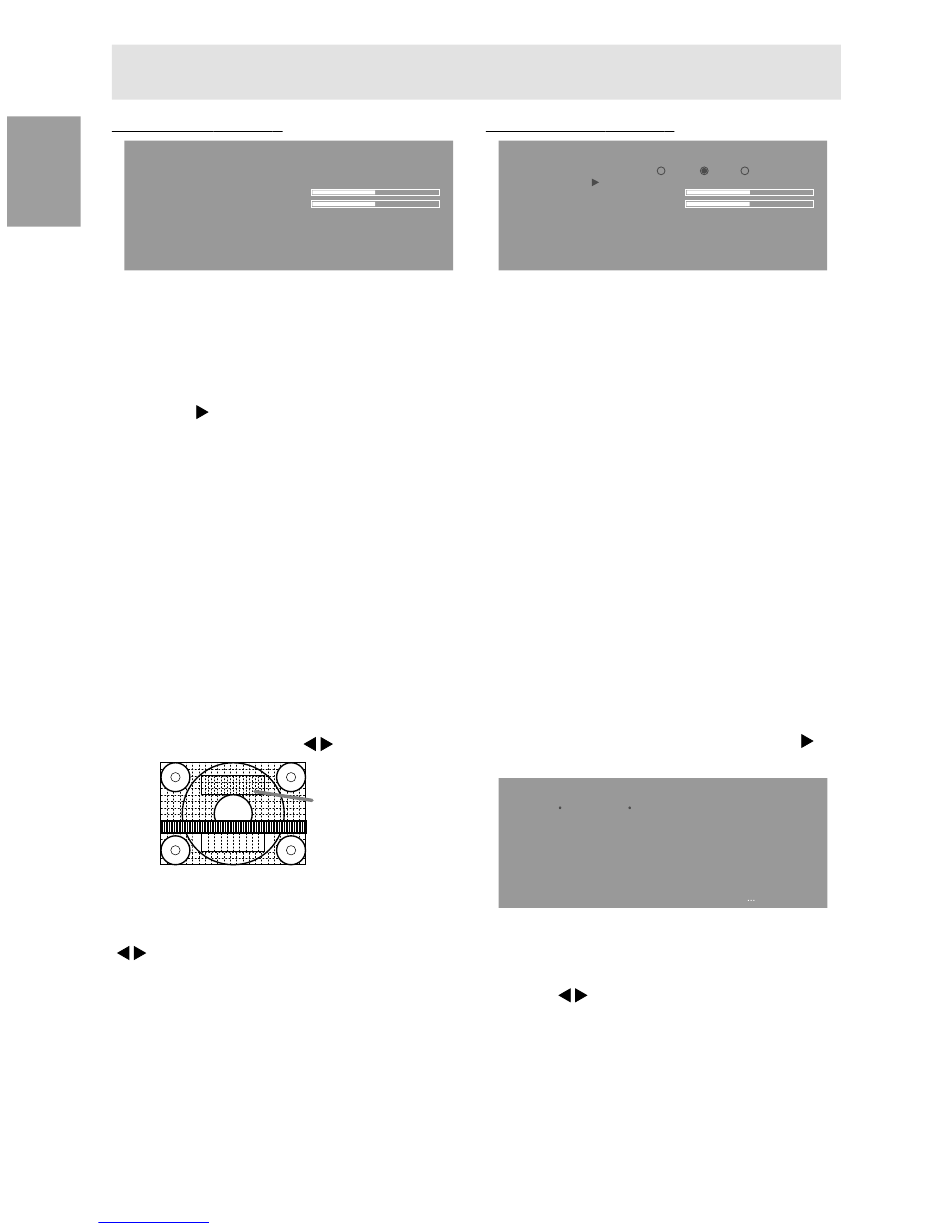

GAIN CONTROL Menu
GAIN CONTROL
MANUAL
BLACK LEVEL
CONTRAST
INPUT-1
1024 x 768
MANUAL: Individual menu options are manually
adjusted.
AUTO: Every menu option is automatically
adjusted using the Auto Gain Control*
function.
Notes:
- Press the
- To choose a menu option: SELECT button
- To go to the next menu:
* Auto Gain Control function
- The Auto Gain Control adjusts contrast and black
level based on the brightest color of the image
displayed.Unless an Adjustment Pattern is used,
automatic adjustment may not be possible. In
such a case, either use an Adjustment Pattern,
or adjust manually.
- If the signal coming from the computer is
composite sync or sync on green, automatic
adjustment cannot be performed. Please perform
manual adjustment instead.
BLACK LEVEL
Total screen brightness can be adjusted while
watching the color pattern. (
CONTRAST
While watching the color pattern, adjustments can
be made so that all graduations appear.
( buttons)
Downloaded from www.Manualslib.com
Adjusting the screen display
AUTO
50
18
ANALOG
V : 60Hz H : 48.4kHz
button to select [AUTO].
MENU button
buttons)
Color pattern
manuals search engine
(When using an analog signal)
COLOR CONTROL Menu
COLOR CONTROL
COLOR MODE
WHITE BALANCE
HUE
SATURATION
INPUT-1 ANALOG
1024 x 768 V : 60Hz
Notes:
- To choose a menu option: SELECT button
- To go to the next menu:
COLOR MODE
Color tone can be set as below.
sRGB : sRGB is international standard of color
representation specified by IEC
(International Electrotechnical Commis-
sion). Color conversion is made in
taking account of liquid crystal's
characteristics and represents color
tone close to it original image.
STD : Displays image with the color tone
results from original scheme of liquid
crystal panel.
VIVID : Displays an image with dynamic and
VIVID primary colors.
- If [sRGB] or [VIVID] has been selected, items
subsequent to [WHITE BALANCE] cannot be set.
Subsequent items can be set when the [COLOR
MODE] is [STD].
WHITE BALANCE
After selecting [WHITE BALANCE], press the
button and display the adjustment menu.
WHITE BALANCE
COOL STD
R-CONTRAST
G-CONTRAST
B-CONTRAST
Notes:
- On settings other than [STD] not all graduations
can be displayed. To display all graduations, set
to [STD].
- Use the buttons to select [COOL], [·], [STD],
[·], [WARM] or [USER].
- Selecting USER will display the setting values for
[R-CONTRAST], [G-CONTRAST] and [B-
CONTRAST], in order to make fine adjustments.
- Use the SELECT button to select
[R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST].
- When adjustment complete: MENU button
20
sRGB STD VIVID
0
0
H : 48.4kHz
MENU button
WARM USER
OK [ MENU ]
