DB9 Port Connection
1
–Optional–*
Using Tripp Lite cable #73-0743,
connect your primary server's DB9
port to the single DB9 port labeled
"SMART" (which provides complete
intelligent RS-232 communications).**
If your UPS model has
2
multiple DB9 ports and
you have additional
computers:
All Models
Connect additional computers to the DB9
ports labeled "BASIC" (which provide
basic, contact-closure shutdown
capabilities) using Tripp Lite cabling.
See Figure 1.
2200 - 3000 VA Models
Set the UPS's corresponding LAN Interface
DIP Switches to the ACTIVATE (LEFT)
position. See Figure 2 to determine which
switch controls which port.***
Load software and run the installation
3
program appropriate for your operating system.
* Serial port connections are optional. Your UPS will function properly without these connections.
** The "SMART" DB9 port is always enabled and is not controlled by the LAN Interface DIP Switches.
*** If you do not connect a computer to either of the "BASIC" DB9 ports, set their corresponding LAN Interface DIP Switches to the
DEACTIVATE (RIGHT) position. Note: DIP Switch #3 has no function.

Basic Operation

Switches
System Enable Switch*
1400 VA
model
4
Downloaded from www.Manualslib.com
This switch activates the battery charger and intelligent
2200 - 3000 VA
models
microprocessor. Always leave it in the "ENABLE" position
when your UPS is plugged in. Set the switch to "DISABLE"
only if you store or ship your UPS (to reduce battery drain).
2200-3000VA models: DIP switch #4 is the system
enable switch.
*Note: the location of the switch varies by model. The "
ON/Standby Switch to activate the "ON" mode (power ON at the UPS receptacles).
manuals search engine

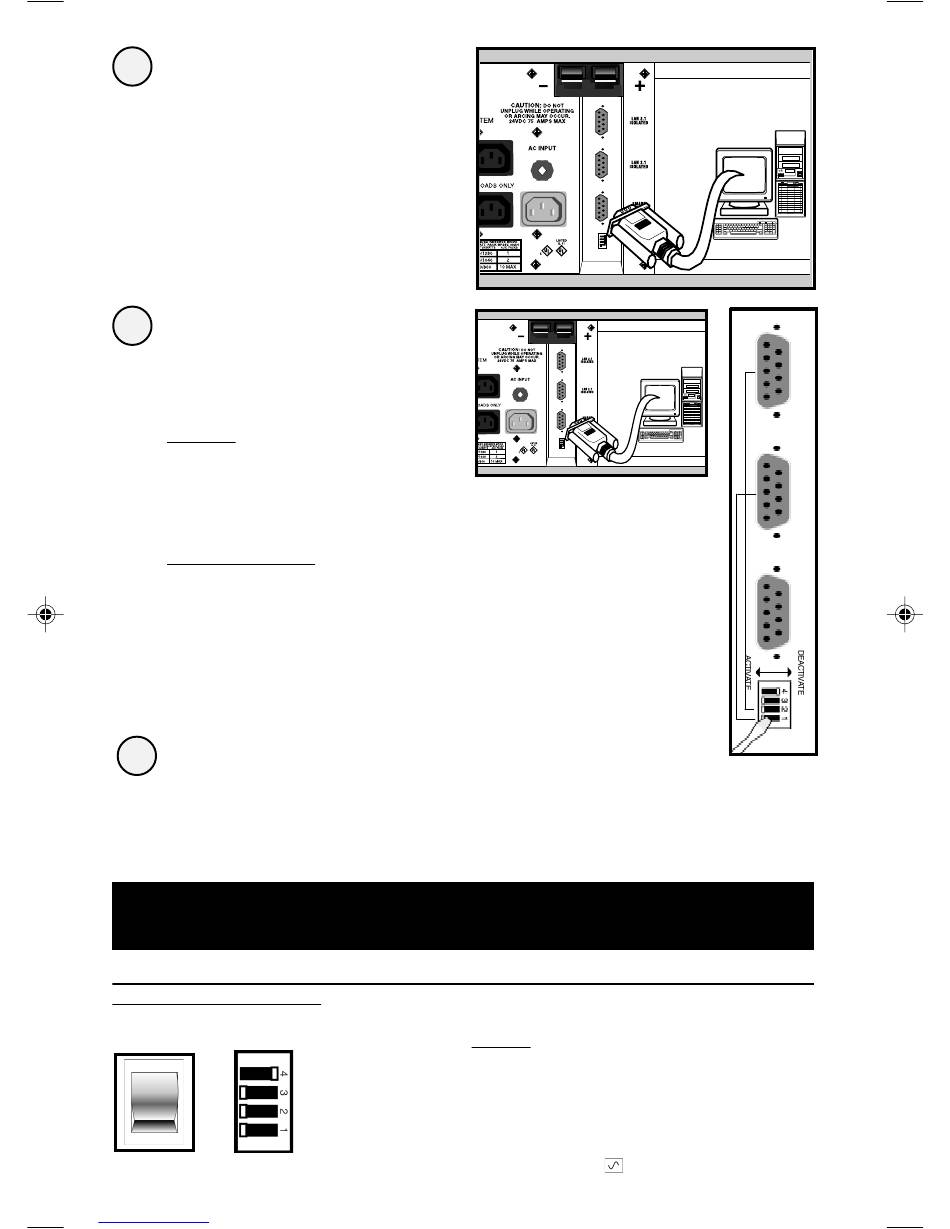

Figure 1
Figure 2
LAN INTERFACE DIP
SWITCHES #2 & #1
(2200 - 3000 VA models)
" light will flash until you engage the
