1 Introduction
The Powador-miniLOG saves the periodic data about the status of the
inverters in text fi les on a 1GB SD card. The stored data can be conven-
iently evaluated and archived using KACO-viso. One Powador-miniLOG
is required for each inverter. The Powador-miniLOG is compatible with all
KACO inverters that have an integrated RS232 interface.

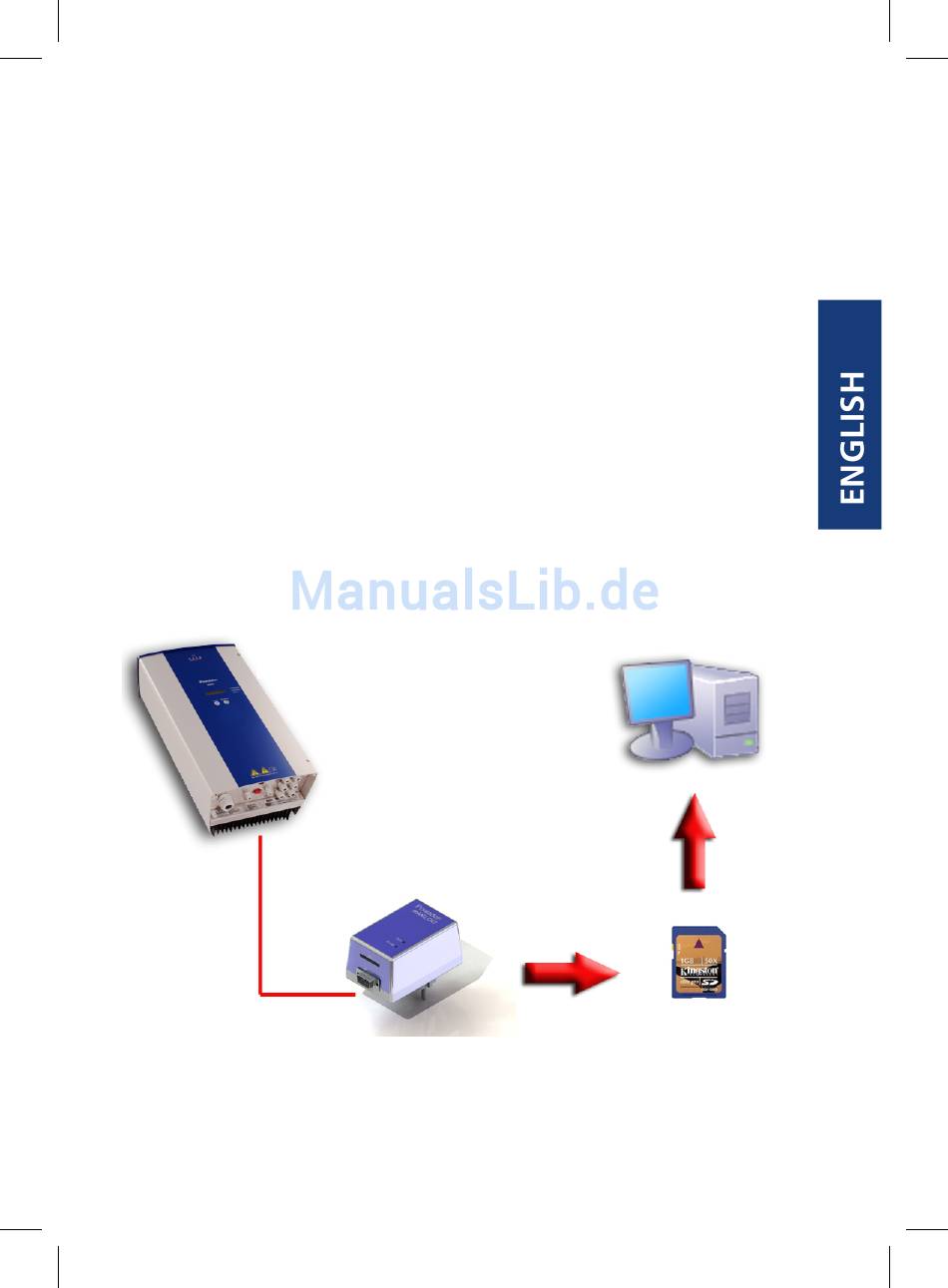

2 Connection to the Inverter
The Powador-miniLOG must be connected to the inverter using a 1:1
RS232 cable (included). Note that the RS232 interface is set on the in-
verter.
PC with KACO-viso
Inverter with RS232
Powador-miniLOG
1:1 cable
1:1 cable
SD card
