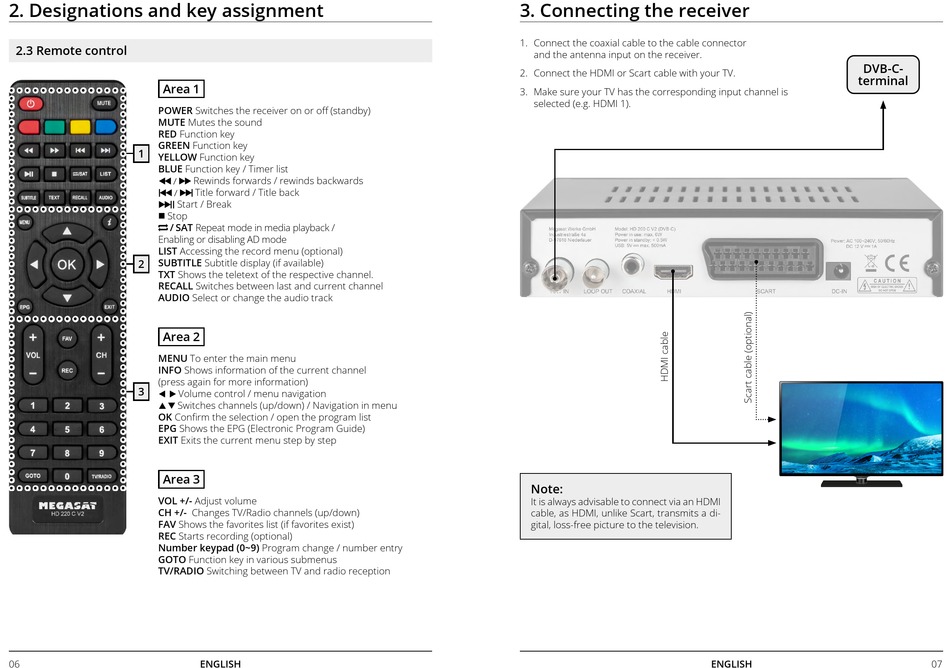

2. Designations and key assignment

2.3 Remote control

Area 1
POWER Switches the receiver on or off (standby)
MUTE Mutes the sound
RED Function key
GREEN Function key
1
YELLOW Function key
BLUE Function key / Timer list
tt / u u
| tt / u u
Start / Break
| |
uu
n Stop
/ SAT Repeat mode in media playback /
Enabling or disabling AD mode
LIST Accessing the record menu (optional)
2 SUBTITLE Subtitle display (if available)
TXT Shows the teletext of the respective channel.
RECALL Switches between last and current channel
AUDIO Select or change the audio track
Area 2
MENU To enter the main menu
INFO Shows information of the current channel
(press again for more information)
3
Volume control / menu navigation
t u
Switches channels (up/down) / Navigation in menu
p q
OK Confirm the selection / open the program list
EPG Shows the EPG (Electronic Program Guide)
EXIT Exits the current menu step by step
Area 3
VOL +/- Adjust volume
CH +/- Changes TV/Radio channels (up/down)
FAV Shows the favorites list (if favorites exist)
REC Starts recording (optional)
Number keypad (0~9) Program change / number entry
GOTO Function key in various submenus
TV/RADIO Switching between TV and radio reception
06
Rewinds forwards / rewinds backwards
Title forward / Title back
|
ENGLISH

3. Connecting the receiver

1. Connect the coaxial cable to the cable connector
and the antenna input on the receiver.
2. Connect the HDMI or Scart cable with your TV.
3. Make sure your TV has the corresponding input channel is
selected (e.g. HDMI 1).
Note:
It is always advisable to connect via an HDMI
cable, as HDMI, unlike Scart, transmits a di-
gital, loss-free picture to the television.
DVB-C-
terminal
ENGLISH 07
