System - Megasat HD 200 C V2 Bedienungsanleitung

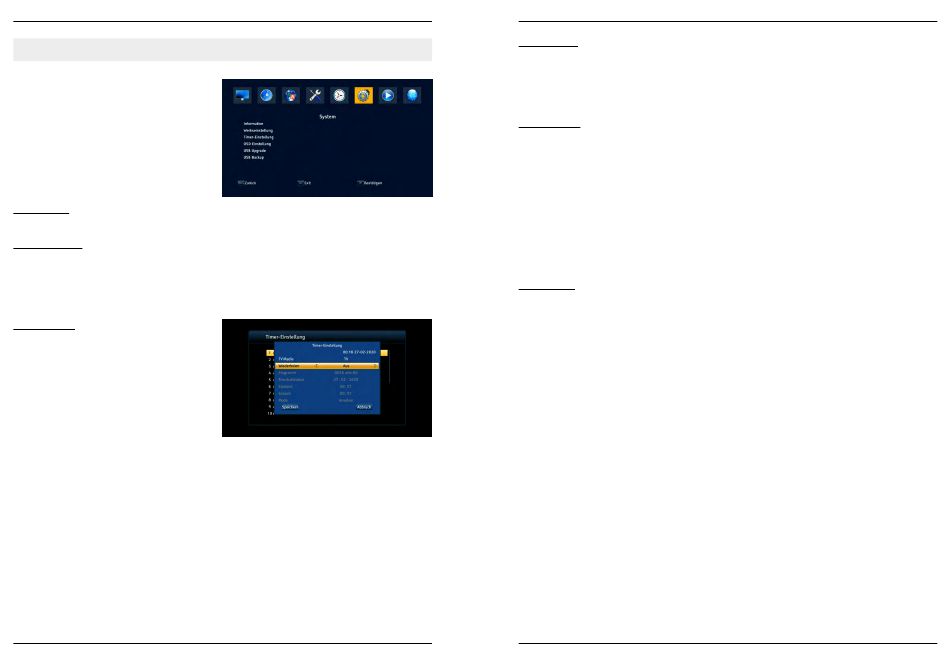

5. Main menu

5.6 System

In this menu you can see various informati-
on about the firmware status of the receiver.
Reset the receiver to the factory settings or
update the firmware.
Information
This item displays current information about the hardware and software status of the receiver.
Factory setting
If you want to reset the receiver to the factory settings, confirm this menu item with OK. You are
requested to enter a password. By default, the password is: 0 0 0 0. The receiver then starts with
the initial installation.
ATTENTION: All settings that you have made in the receiver menu as well as the saved channels
will be lost!
Timer setting
Select the first timer slot and confirm with
OK. Subsequently, a new window opens to
set the data.
TV/Radio Select whether to turn on a TV or radio program.
Repeat Select when the timer should be active (Once, Daily, Weekly).
Channel Select which program the receiver should switch to.
Wakeup Select on which day (date) the timer should be active.
Start time Select when (time) the receiver should turn on.
End time Select when (time) the receiver should switch off again.
Mode (No change necessary)
When you have made all the settings, press „Save" at the bottom of the screen to transfer the timer
to the timer list. Repeat the procedure if you want to set additional timers. There are a total of 20
different timers available.
16 ENGLISH
5. Main menu
OSD settings
1. Subtitle: Enable or disable the subtitle (if available).
2. OSD display duration: Set the seconds how long menu displays should last.
3. OSD Transparency: Adjust the transparency of the menu.
4. Auto-Standby: Set the time when the receiver automatically switches off if no operation is made
on the device.
USB-Upgrade
Select this option if a new firmware is available. You can always find the latest firmware on our
homepage www.megasat.tv.
1. Copy the new firmware to a USB stick (to the main directory without subfolders) and plug it into
the USB port on the front of the receiver.
2. Select "All" in "Upgrade Mode" to update the firmware and the channel list contained in it. If you
only want to upgrade the firmware, select "Maincode".
3. If they have previously copied the appropriate firmware to the USB stick, the appropriate file is
automatically displayed under "Upgrade File" (e.g. firmware.bin).
4. Now select "Start" to start the upgrade process. ATTENTION: Never disconnect the power sup-
ply to the receiver during the update process!
5. After successful update the receiver restarts.
USB-Backup
To make a backup of the current settings and the channel list, select "All" in "Backup Mode". If
you only want to save the channel list, select "Channel List". Now select "Start" to start the backup
process. After successful backup, the data will be saved to the USB stick. You can reload them
under USB-Upgrade.
ENGLISH 17
