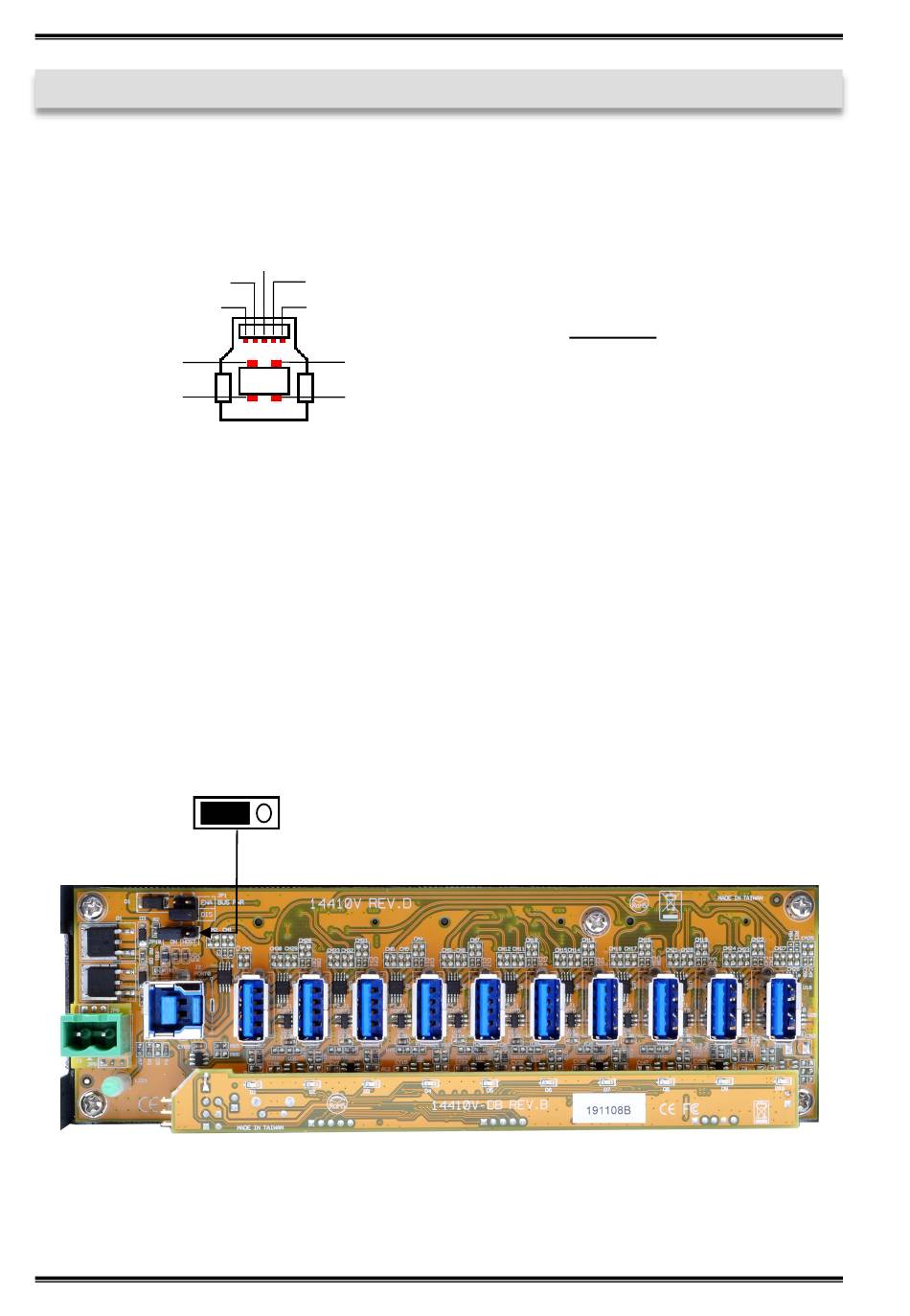

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.2 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

Do not change the jumper JP1, because it has no function!
Attention! Only in connection with JP1 on DIS! Furthermore, you have the option to
leave power on the DFP (Downstream Facing Ports) only when the hub is connected
to the host PC and the host PC is switched on. For this you have to set the jumper
JP10 to HOST. If JP10 is set to ON, there is continuous power on the downstream
ports. See the following picture.
JP10
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
ON HOST
Attention!
Never plug in with force
or in wrong direction.
12
