TP active fun TP476 Montageanleitung Seite 26

TP476 Kingswood2 Tower In0476-E 05 15.qxp_TP476 Kingswood2 Tower In0476-E 05 15 14/05/2015 10:24 Page 26
27
MW2086
90°
28
MW2079

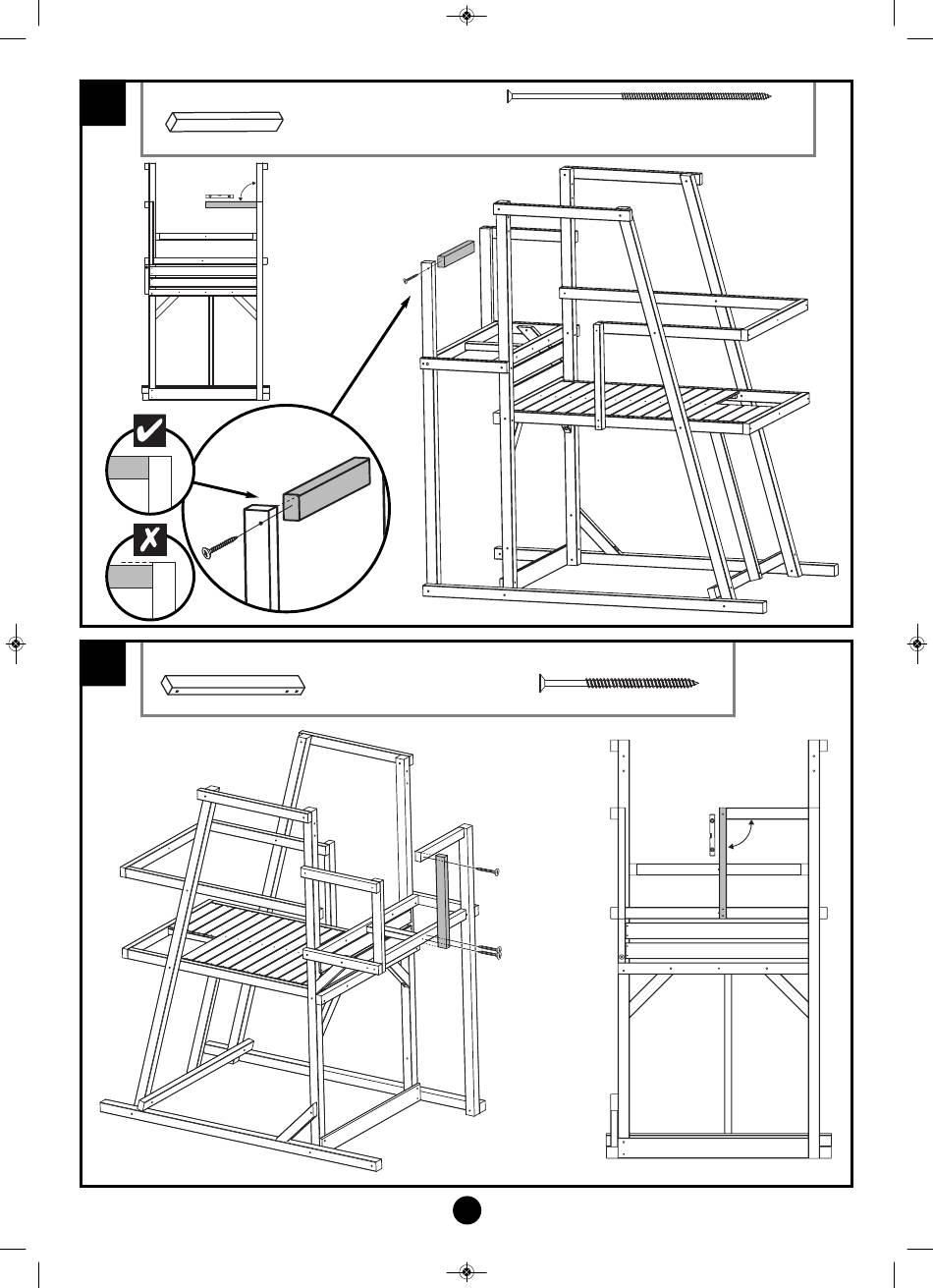

Balcony Rear Handrail 532mm
Platform Vertical Rail 674mm
x1
FA9784
M6 x 150mm Woodscrew
x1 5mm x 100mm Woodscrew x3
FA9761
100mm
100mm
100mm
26
x1
90°
TP Kingswood2 Tower
