TP476 Kingswood2 Tower In0476-E 05 15.qxp_TP476 Kingswood2 Tower In0476-E 05 15 14/05/2015 10:24 Page 17

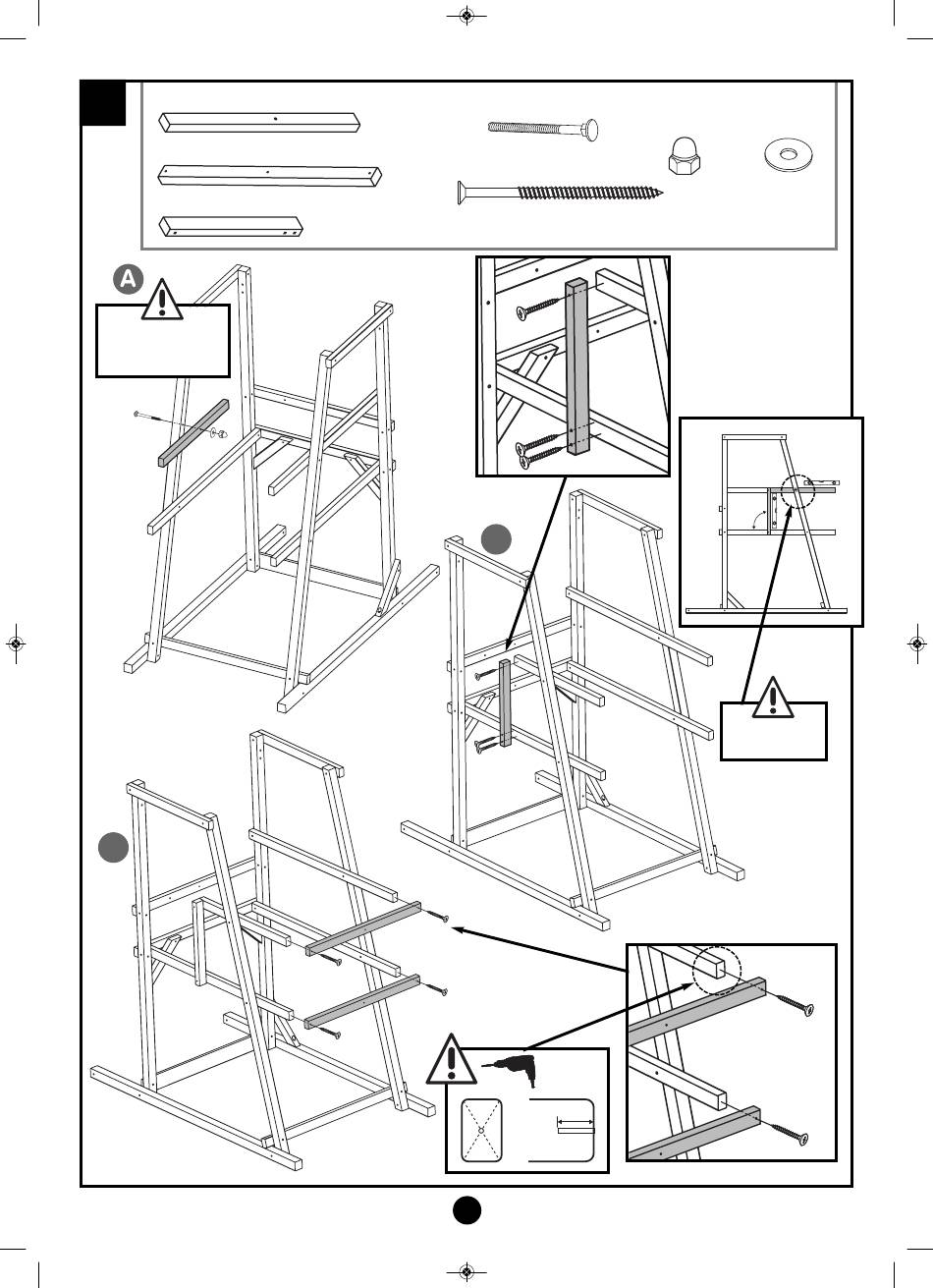

14
MW2077
MW2069
MW2079
Note:
Do not fully tigthen
until 14B
120mm Bolt
MW2077
C
LH Platform Handrail 953mm
Front Platform Frame Rail 1066mm
Platform Vertical Rail 674mm
x1
M8 x 120mm Bolt x1
FA8434
x2
x1
5mm x 100mm Woodscrew x7
FA9761
B
MW2079
MW2069
MW2069
Drill 4mm
Pilot Holes
approx
40mm
17
M8 Nylon Insert
M8 x 25mm
Dome Nut
Large washer
FA7184
FA8163
x1
x1
90°
Note:
Now tigthen
TP Kingswood2 Tower
